Flowmax 44i

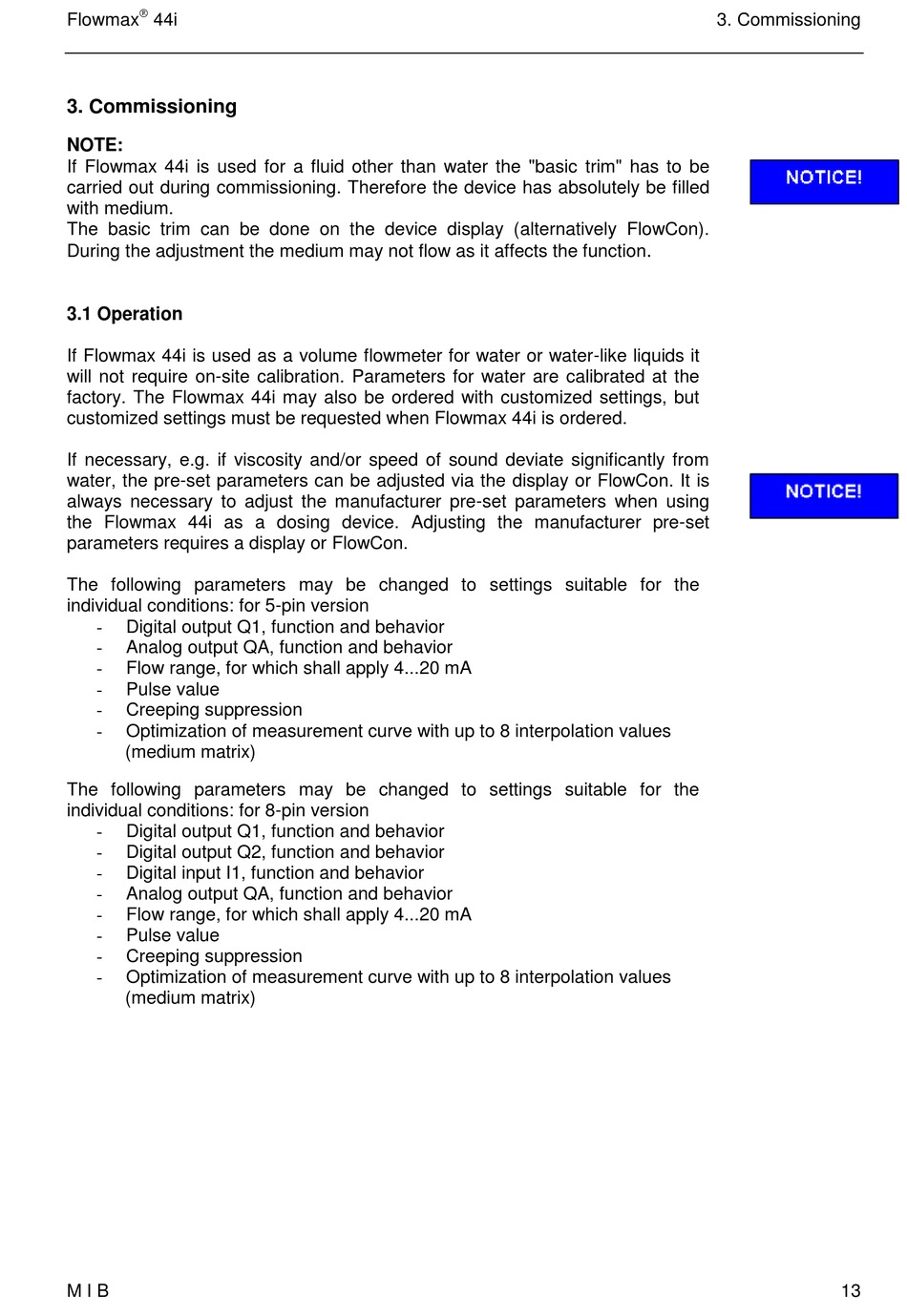

3. Commissioning

NOTE:
If Flowmax 44i is used for a fluid other than water the "basic trim" has to be
carried out during commissioning. Therefore the device has absolutely be filled
with medium.
The basic trim can be done on the device display (alternatively FlowCon).
During the adjustment the medium may not flow as it affects the function

3.1 Operation

If Flowmax 44i is used as a volume flowmeter for water or water-like liquids it
will not require on-site calibration. Parameters for water are calibrated at the
factory. The Flowmax 44i may also be ordered with customized settings, but
customized settings must be requested when Flowmax 44i is ordered.
If necessary, e.g. if viscosity and/or speed of sound deviate significantly from
water, the pre-set parameters can be adjusted via the display or FlowCon. It is
always necessary to adjust the manufacturer pre-set parameters when using
the Flowmax 44i as a dosing device. Adjusting the manufacturer pre-set
parameters requires a display or FlowCon.
The following parameters may be changed to settings suitable for the
individual conditions: for 5-pin version
- Digital output Q1, function and behavior
Analog output QA, function and behavior
-
Flow range, for which shall apply 4...20 mA
-
Pulse value
-
Creeping suppression
-
Optimization of measurement curve with up to 8 interpolation values
-
(medium matrix)
The following parameters may be changed to settings suitable for the
individual conditions: for 8-pin version
- Digital output Q1, function and behavior
Digital output Q2, function and behavior
-
- Digital input I1, function and behavior
- Analog output QA, function and behavior
- Flow range, for which shall apply 4...20 mA
- Pulse value
- Creeping suppression
Optimization of measurement curve with up to 8 interpolation values
-
(medium matrix)
M I B
3. Commissioning
.
13
