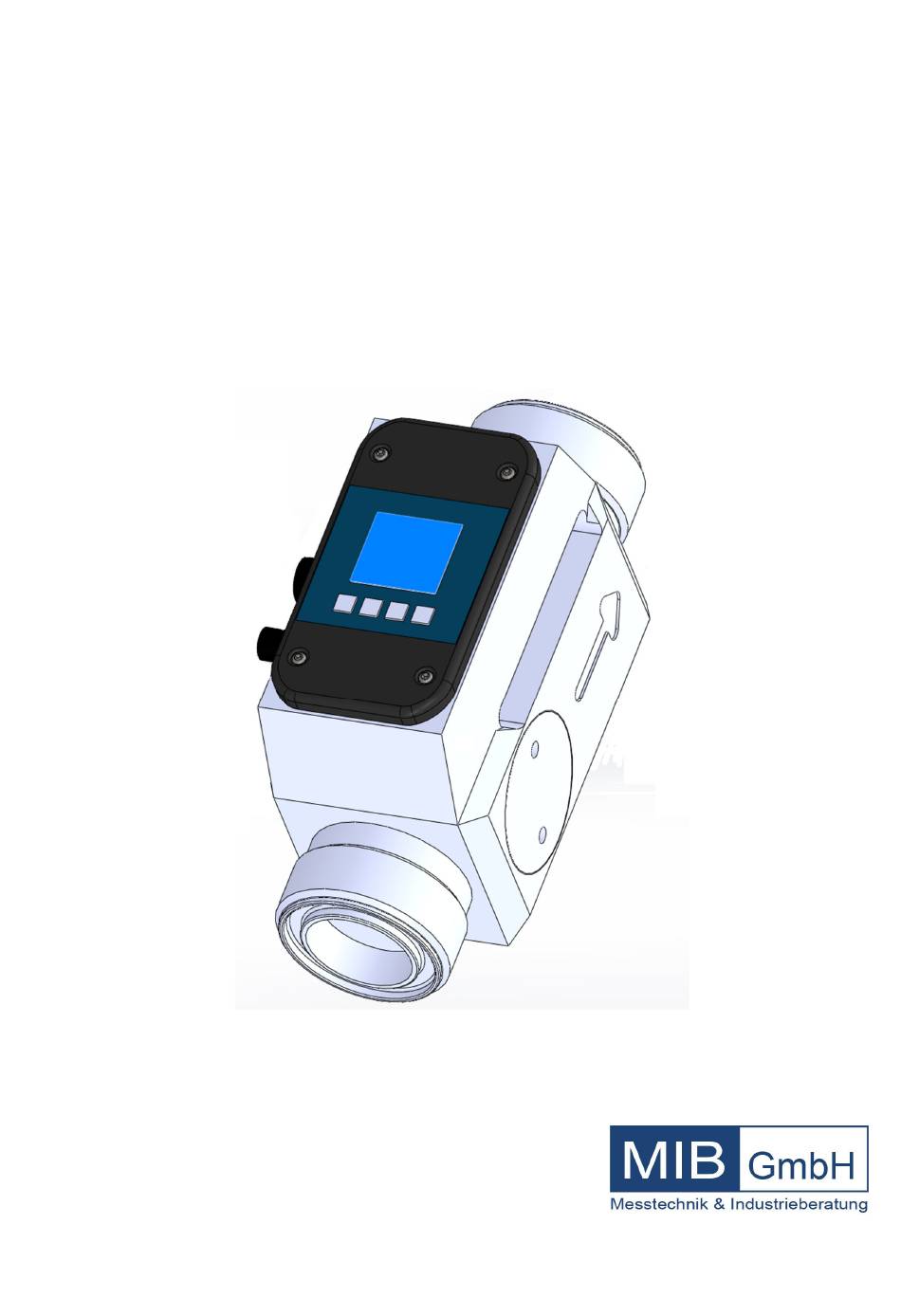

MIB Flowmax 54i Operating Manual

Ultrasonic flow metering / dosing device
Table of Contents

Advertisement

Quick Links

BA 007E/FM54i/01.21
Valid starting from
Hardware V 2.1
Software V 1.29
®
Flowmax
Ultrasonic flow
metering / dosing
device
Operating manual
54i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowmax 54i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MIB Flowmax 54i

  • Page 1 ® Flowmax BA 007E/FM54i/01.21 Valid starting from Hardware V 2.1 Software V 1.29 Ultrasonic flow metering / dosing device Operating manual...
  • Page 2: General Safety Instructions

    NOTICE! is used to lead users to helpful NOTICE! information not related to personal injury Intended use The flowmeter Flowmax 54i may only be used for measuring the flow of • pure, homogeneous liquids. The Flowmax 54i is not intended for use in medical applications.
  • Page 3: Table Of Contents

    ® Flowmax Contents Contents General safety instructions ......................2 Contents ............................3 List of figures ..........................4 Planning information ......................5 1.1 Areas of application..........................5 1.2 Measuring principle ..........................5 1.3 Operational safety ............................ 6 Assembly and installation..................... 7 2.1 Installation instructions ..........................
  • Page 4: List Of Figures

    List of figures Figure 1: Presentation of the principle of ultrasonic flow measuring ..............5 Figure 2: ideal installation position of Flowmax 54i ................... 7 Figure 3: Mounting examples for Flowmax 54i ....................8 Figure 4: Mounting possibilities .......................... 9 Figure 5: Pin code: Connection plug socket for 5-pin version .............
  • Page 5: Planning Information

    1.1 Areas of application The flow measurement device Flowmax 54i is designed to measure dynamic flow in pipes and tubes. This flowmeter is suitable for liquids only. The Flowmax 54i is used in • Chemicals supply for controlling, logistics, monitoring •...
  • Page 6: Operational Safety

    Faults (process or system errors) are output on a digital output or displayed on the display menu. The protection class is IP 65. Flowmax 54i meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6.
  • Page 7: Assembly And Installation

    Notwithstanding it may be advantageous for dosing applications to install the Flowmax 54i as close as possible to the dosing valve, as soft pipes change the cross-section depending on the system pressure. This may lead to repeatable differences.
  • Page 8: Assembly Of The Flowmeter

    Placing the flowmeter after a dosing valve and allowing it to run empty will cause a measuring deviation at the next measurement. To avoid bubbles in the liquid, Flowmax 54i should be installed on the pressure side of the pump.
  • Page 9: Figure 4: Mounting Possibilities

    ® Flowmax Assembly and installation IMPORTANT! The Flowmax 54i must be installed without mechanical tensions on the existing pipe system. The flowmeter may be damaged if there is tension on the existing pipe system. IMPORTANT! The hydraulic screw connections on the process side must be hand- tightened.
  • Page 10: Electrical Wiring

    Always shut off or disconnect electrical power at service panel and lock WARNING! switch or breaker and tag to prevent energizing electrical power during work or while Flowmax 54i is not assembled and installed. Wiring installation, disassembly and removal must be performed by qualified persons experienced and knowledgeable about electrical work.
  • Page 11 ® Flowmax Assembly and installation 5-pin plug with RS485 communication and current output: Function Description 24 VDC Voltage Supply: 18 ... 30 VDC Communication RS 485 B Ground: 0 V Communication RS 485 A Analog output QA 4 ... 20mA; 0 ... 20mA Example: 0l/min =>...
  • Page 12: Figure 6: Pin Code: Connection Plug / Socket For 8-Pin Version

    ® Assembly and installation Flowmax 8-pin plug with 1-wire communication: Figure 6: Pin code: Connection plug socket for 8-pin version Connector cable pin configuration defined by manufacturer. The outlets may be re-programmed for specific applications. Function Description 24 VDC Voltage supply: 18 ... 30 VDC Digital output Digital output Q1 Functions...
  • Page 13: Figure 7: Pin Code: Connection Plug / Socket For 8-Pin Version

    IMPORTANT: Only operate the flowmeter Flowmax54i within the operating limits stipulated on the product label and the operating manual / data sheet. Use of the Flowmax 54i outside these conditions will lead to overloads, which IMPORTANT! cause permanent damage. M I B...
  • Page 14: Commissioning

    NOTE: If Flowmax 54i used for a fluid other than water, the "basic trim" has to be carry NOTICE! out during commissioning. Therefore, the device has absolutely be filled with medium.
  • Page 15: Display And User Menu

    This ensures that only authorised personnel can make changes to the unit parameters. The default password for Flowmax 54i is 41414. The user level will remain active for 30 minutes after the last press on any button.
  • Page 16 ® Commissioning Flowmax M I B...
  • Page 17: Figure 9: Menu Structure Flowmax 54I

    ® Flowmax Commissioning Figure 9: Menu structure Flowmax 54i M I B...
  • Page 18: Functionalities Of Flowmeter And Default Settings

    Spanish, French and German. 3.2.2 Dosing The Flowmax 54i can be configured for manually dosing by choosing the dosing function via the user display. The Volume “Dosing Quantity“ and the “Dosing Time“ are freely adjustable. The dosing time is intended as a safeguard against unintentional overspill.
  • Page 19: Media

    In the sub menu “Set Offset” it is possible to set the actual offset of the flowmeter. Use this function only when Flowmax 54i is completely filled with liquid, and there must be no flow, as this condition is the new “zero” value.
  • Page 20: Basic Trim

    3.2.3.4 Basic Trim The “Basic Trim” function insures that the flowmeter is conforming to the media NOTICE! specific characteristics. To execute this function, Flowmax 54i runs a self- diagnostic function which optimizes all important parameters. This process lasts approximately 1 minute.
  • Page 21: General Settings

    ® Flowmax Commissioning 3.2.4 General Settings 3.2.4.1 Reset Counter The volume counter of Flowmax 54i can be reset. Example of operation see appendix. IMPORTANT! Once reset, counter values cannot be restored. After the reset, the counter IMPORTANT! starts again at the value 0.
  • Page 22: Lower Limit

    ® Commissioning Flowmax Lower Limit=60ml/s Hysteresis=15 ml/s Filter=Off Lower Limit Untergrenze 60 [ml/s] 60 [ml/s] Lower Limit – Hysteresis Untergrenze - 45 [ml/s] Hysteresis 45 [ml/s] Lower Limit + Untergrenze + Hysteresis 75 [ml/s] Hysteresis 75 [ml/s] Flow filter Fluss Filter [ml/s] [ml/s] Digital Output = Lower Limit...
  • Page 23: Pulse Value

    The pulse value determines the flow volumes for which an output pulse will be emitted. Choose a configuration which will neither exceed the maximum output frequency of the Flowmax 54i (10kHz) nor the maximum input frequency of the control. If the maximum frequency is exceeded the Flowmax 54i will not output pulses correctly.
  • Page 24: Display

    Total counter runs without resetting on. 3.2.5 Display 3.2.5.1 Units Flowmax 54i is able to show actual flow or the volume in different units. Setting range: ml/s + l, l/h + l, l/min + m³, Gal/min +Gal, l/min + l...
  • Page 25: Flashing

    ® Flowmax Commissioning 3.2.5.4 Flashing The display flashes in case off an error. This can be switched off. When activating the alarm flashing, the backlight first flashes after 150s. The time is extended by the set empty pipe delay time, when the empty pipe delay is active. Setting range: On, Off Default setting:...
  • Page 26: Figure 14: Characteristic Curve 0

    ® Commissioning Flowmax Characteristic curves analog output 0 … 20mA • For the following graphic “min Range” is used for 0% and “max Range” is used for 100%. Current output 0 ... 20mA Value [%] Value Current [mA] Smaller 0% 0% (min Range) Between 0% and 100% Linear interpolation from 0 ...
  • Page 27: Filter

    When this function via the menu (see Section 3.1.1 Fig 9. Menu structure NOTICE! Flowmax 54i with analog output QA - Output value) is selected and the function PID controller was not ordered, the output will be set on “flow”.
  • Page 28: Digital Output Q1 And Q2 (Q2 Only With 8-Pol Pin Plug!)

    ® Commissioning Flowmax Temperature measurement for the analog output Via the analog output the measured temperature is output. The temperature sensor is not wetted. It is used to calculate the extent of the measuring channel. The sensor is influenced by the ambient temperature. The temperature value will become sluggish, because it measures the plastic - Temperature inside the sensor pocket.
  • Page 29 If the dosing output is configured as normal closed the valve will stay open after the dosing batch. IMPORTANT! IMPORTANT! Inductive load on the digital outputs without an installed diode may cause damage on the Flowmax 54i electronics. M I B...
  • Page 30: Figure 17: Connecting Digital Output To Relay

    Example 1: Flowmax 54i via NPN, external relay Figure 17: Connecting Digital Output to relay Example 2: Flowmax 54i via PNP, external counter e.g. PLC Figure 18: Connecting Digital Output to counter With high impedance input counters and high speed counting, it may be necessary to include a resistor to have clean edges.
  • Page 31: Digital Input I1 (Only Available With 8-Pol Pin Plug)

    Commissioning 3.2.8 Digital Input I1 (Only available with 8-pol pin plug) Flowmax 54i has a digital input that is programmable for the following functions: dosing input, set offset, creeping suppression inactive and reset counter. In order to start a dosing process, 24V DC power is required. The status of the dosing parameters or modifications can be done via user display or FlowCon 200i.
  • Page 32: Overview Of Default Settings

    When everything has been checked, switch on power. After 30 minutes with power running the measuring device reaches the maximum accuracy. The meter reaches the optimum operating state after 30 minutes. See 3.Commissioning. Flowmax 54i is operational! M I B...
  • Page 33: Exchange Of Flowmeter

    If the device requires a configuration change, the display and programming unit FlowCon 200i may be required (see section 6. Accessories). Repair, hazardous substances Before sending the flowmeter Flowmax 54i for repair, the following precautions must be taken: Clean all process chemicals from the device. Fully rinse the flow path.
  • Page 34: Technical Specifications

    ® Technical specifications Flowmax 5. Technical specifications 5.1 Dimensions and weight of the compact version weight [kg] DN25 G1 ½ DN32 DN40 G2 ¼ DN50 G2 ¾ The process connection thread is a GF-thread. M I B...
  • Page 35: Technical Specifications

    36 … 900 l/min Repeatability: 0.5% The measuring system Flowmax 54i meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. It is in conformity with the requirements of the EC directives and has the CE label.
  • Page 36 ® Technical specifications Flowmax Pressure drop Flowmax54i DN25 pressure drop curve with water at 22°C 100kPa=1bar Flow (Reference Flowmeter) [l/min] Flowmax 54i DN32 pressure drop curve with water at 22°C 100kPa=1bar Flow (Reference Flowmeter) [l/min] M I B...
  • Page 37 ® Flowmax Technical specifications FM54i DN40 pressure drop curve with water at 22°C 100 kPa=1bar Flow (Reference Flowmeter) [l/min] FM54i DN50 pressure drop curve with water at 22°C 100 kPa= 1bar Flow (Reference Flowmeter) [l/min] M I B...
  • Page 38: Accessories

    However, the measurement still works. 6. Accessories Flowmax connection socket Flowmax connection socket M12x1 is used to power and connect Flowmax 54i to an external control unit. Ordercode 507321 (Socket 5 pins) Ordercode...
  • Page 39: Appendix

    ® Flowmax Appendix Appendix Examples of operation: Enter Password Display picture Password 4 x Λ 40000 X0000 X1000 Λ XX000 4 x Λ XX400 XXX00 Λ XXX10 XXXX0 4 x Λ XXXX4 Reset Counter Dosing Media General Adjustment Display Analog Output QA General Adustment Reset Counter General Adjustment...
  • Page 40 Flowmax Set Offset Use this function only when Flowmax 54i is completely filled with liquid, and there is no flow. If the offset is set while flow is present or when the pipe is empty it will cause an offset drift what results in a faulty measurement.
  • Page 41 ® Flowmax Appendix Setting the sign Setting the value Media 1-Point-Correction Done To enable the correction back to delivery, a correction of 00.0% is to be entered. Display rotate 90° Dosing Media General Adjustment Display Analog Output QA Media General Adjustment Display Analog Output QA Digital Output Q1...
  • Page 42 ® Appendix Flowmax M I B...
  • Page 43 ® Flowmax Appendix M I B...
  • Page 44 MIB GmbH Messtechnik und Industrieberatung Bahnhofstr. 35 D-79206 Breisach Tel. 0049 / (0)7667 / 20 777 90 Fax 0049 / (0)7667 / 20 777 99 E-Mail: info@mib-gmbh.com Internet: http://www.flowmax.de...
