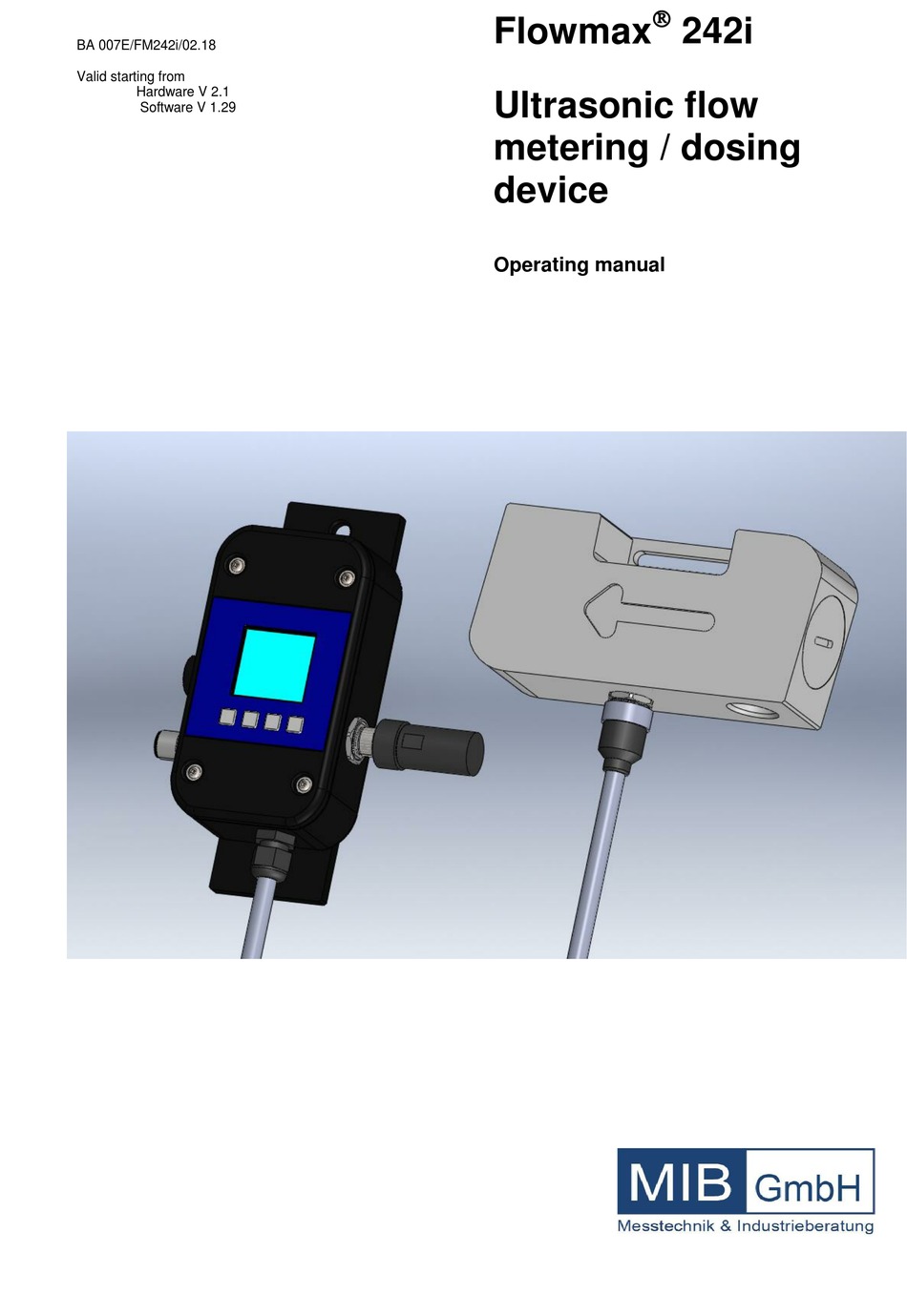

- Page 1 Flowmax 242i BA 007E/FM242i/02.18 Valid starting from Hardware V 2.1 Ultrasonic flow Software V 1.29 metering / dosing device Operating manual...
-
Page 2: General Safety Instructions
NOTICE! information not related to personal injury. Intended use The flow meter Flowmax 242i may only be used for measuring the flow of pure, homogeneous liquids. The volume flow meter Flowmax 242i is built operationally safe in accordance with the latest state of the art technologized developments and industry standard EN 61010 regulations (corresponds to VDE 0411 “Safety... -
Page 3: Table Of Contents
Flowmax 242i Tablet of contents Tablet of contents General safety instructions ......................2 Tablet of contents ......................... 3 Table of figures ..........................4 Planning information ......................5 1.1 Areas of application..........................5 1.2 Measuring principle ..........................5 1.3 Operational safety ............................ 6 Assembly and installation..................... -
Page 4: Table Of Figures
Figure 1: Presentation of the principle of ultrasonic flow measuring ..........5 Figure 2: Installation position of Flowmax 242i................6 Figure 3: Mounting examples for Flowmax 242i ................7 Figure 4: Mounting possibilities ....................... 8 Figure 5: Fixing Flowmax 242i ......................8 Figure 6: Pin code: Connection plug socket for 5-pin version ........ -
Page 5: Planning Information
Planning information 1. Planning information 1.1 Areas of application The flow measurement device in the Flowmax 242i designed to measure dynamic flow in pipes and tubes. This flow meter is suitable for liquids only. The Flowmax 242i is used in ... -
Page 6: Operational Safety
2. Assembly and installation 2.1 Installation instructions The housing of the Flowmax 242i has an arrow, symbolizing the flow direction of measurement. The flow meter has to be installed in a way so that the flow- through is in the same direction as the arrow symbol. -
Page 7: Assembly Of The Flow Meter
Flowmax 242i Assembly and installation When using pumps, Flowmax 242i must be installed in flow direction on the pressure side, on order to ensure sufficient pressure. The maximum pressure rating of Flowmax 242i has to be considered. Do not exceed the maximum pressure allowance for of the Flowmax 242i (see section 5.2 Technical specifications). -
Page 8: Figure 4: Mounting Possibilities
Vibrations or mechanical forces may decrease measuring accuracy. So if there is due to vibration or mechanical movements it is necessary to fix Flowmax 242i additionally, the instrument can be fixed on the lateral slot. Figure 5: Fixing Flowmax 242i Flowmax 242i must be installed without mechanical tensions on the existing pipe system. -
Page 9: Electrical Wiring
In all these messages, the device can not show the menu, can not measure any flow or empty pipe. Everything is blocked as long as Flowmax 242i starts with a valid measuring pipe and dongle. If dongle and measuring pipe fit together the usual field with current flow and counter is displayed and the menu is normally accessible. - Page 10 Assembly and installation Flowmax 242i 8-pin plug with 1-wire communication: Figure 7: Pin code: Connection plug socket for 8-pin version Connector cable pin configuration defined by manufacturer. The outlets may be re-programmed for specific applications. Function Description 24 VDC Voltage supply: 18...30 VDC Digital output Q1 Digital output Q1...
-
Page 11: Commissioning
IMPORTANT! 3. Commissioning NOTE: If Flowmax 242i is used for a fluid other than water the "basic trim" has to be carried out during commissioning. Therefore the device has absolutely be filled with medium. The basic trim can be done on the device display. During the adjustment the medium may not flow as it affects the function 3.1 Operation... -
Page 12: Display And User Menu
Password protection is used to ensure changes to values or configurations are done by authorized personnel. The default password for Flowmax 242i is 41414. The user level will remain active for 5 minutes after the last press on any button. - Page 13 Flowmax 242i Commissioning M I B...
-
Page 14: Figure 8: Menu Structure
Commissioning Flowmax 242i Figure 9: Menu structure M I B... -
Page 15: Functionalities Of Flow Meter And Default Settings
3 Seconds 3.2.3 Media Flowmax 242i comes with a medium matrix with up to 8 interpolation values. Different media can be managed in the sub menu “Media”. By using the sub menu point “Correction” it is possible to correct the flow measurement in percent. -
Page 16: Basic Trim
3.2.6 Basic Trim The “Basic Trim” function insures that the flow meter is conforming to the media NOTICE! specific characteristics. To execute this function, Flowmax 242i runs a self- diagnostic function which optimizes all important parameters. This process lasts approximately 1 minute. -
Page 17: Units
4,2s 3.2.8 Units Flowmax 242i is able to show actual flow or the volume in different units. Following units can be selected: ml/s + l , Gal/min +Gal , l/min + l , l/min + m³. The first letters correspond to the unit of the flow value. The letters after the + correspond to the unit of the volume value. -
Page 18: Analog Output Qa
Commissioning Flowmax 242i 3.2.11 Analog output QA The analog output is available as current output 4-20mA or 0-20mA. This is selected with the purchase order. As a standard it comes with current output 4- 20mA. It can also be switched off by the device menu. The current output ranges from 0 to 22.6mA measuring the flow rate or the condition of the flow measurement. -
Page 19: Pulse Value
The pulse value determines the flow volumes for which an output pulse will be emitted. Choose a configuration which will neither exceed the maximum output frequency of the Flowmax 242i (10kHz) nor the maximum input frequency of the control. If the maximum frequency is exceeded the Flowmax 242i will not output pulses correctly. -
Page 20: Digital Outputs
Commissioning Flowmax 242i Flow Pulse value Frequency Period Duration of the pulse ml/s ml/Pulse 0,01 0,005 1000 10000 0,0001 0,00005 0,05 0,05 0,05 1000 In the last case every 20 seconds, a pulse of 1 second duration is put out. IMPORTANT! If Dosing Time =0 the time switch-off is inactive. -
Page 21: Digital Output Q1
Setting area: off, pulse output, empty pipe, dosing output, lower limit, upper limit, negative flow Example 2:Flowmax 242i via pnp, external counter e.g. PLC Figure 14: Connecting output Q1 to counter Setting area: off, pulse output, empty pipe, dosing output,... -
Page 22: Dosing Function
Flowmax 242i controls the complete dosing function. The dosing quantity (e.g. 400 ml) is pre-set in the Flowmax 242i via the display. Dosing starts, as soon as the digital input is wired to 24V, e.g. via a pushbutton. Flowmax 242i will open the dosing valve via the output configured for it. -
Page 23: General Information
When everything has been checked, switch on power. After 30 minutes with power running the measuring device reaches the maximum accuracy. Flowmax 242i is operational! 3.5 Function of Dongle a) If no dongle and no measuring pipe is connected in the display appears “No dongle”... -
Page 24: Exchange Of Flow Meter
Repair, hazardous substances Before sending the flow meter Flowmax 242i for repair, the following precautions must be taken: Clean all process chemicals from the device. Fully rinse the flow path. -
Page 25: Technical Specifications
Flowmax 242i Technical specifications 5. Technical specifications 5.1 Dimensions and weight Dimension Flowmax 242iM (Measuring Channel) Nominal Height Depth Width Weight diameter PE-HD [mm] [mm] [mm] DN 3 / 5 /7 82,5 Dimension Flowmax 242iE (Electronics) Height Depth Width Weight [mm] [mm] [mm]... -
Page 26: Technical Specifications
0.5% Connection to the measuring pipe via a green cable, length 0,5, 1,5 or 2,0m. The measuring system Flowmax 242i meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. It is in conformity with the requirements of the EC directives and has the CE label. -
Page 27: Accessories
Actual sonic speed out of specified value. Run only text basic trim! 6. Accessories Flowmax connection socket Flowmax connection socket is used to power and connect Flowmax 242i to an external control unit. Ordercode 507321 (Socket 5 pins) Ordercode 800845 (Socket 8 pins) -
Page 28: Appendix
Appendix Flowmax 242i Appendix Examples of operation: Enter Password Display picture Password 4 x Λ 40000 X0000 Λ X1000 XX000 4 x Λ XX400 XXX00 Λ XXX10 XXXX0 4 x Λ XXXX4 Set Offset Use this function only when Flowmax 242iM is completely filled with liquid, and there is no flow. - Page 29 Flowmax 242i Appendix 1-point correction With the 1-point correction, the meter is calibrated to an operating point. Given an arbitrary amount of volume is filled into a container and measured with a weight. Attention: subtract the weight of the container. With inclusion of the density of the medium, the volume (volume = mass / density) is obtained.
- Page 30 Appendix Flowmax 242i Display rotate 90° Dosing Media General Adjustment Display Analog Output QA Media General Adjustment Display Analog Output QA Digital Output Q1 Display Units 2 x V Display Rotate Display Display Rotate Display 0° 3 x V Display Rotate Display 90°...
- Page 31 Flowmax 242i Appendix M I B...
- Page 32 MIB GmbH Messtechnik und Industrieberatung Bahnhofstr. 35 D-79206 Breisach Tel. 0049 / (0)7667 / 20 777 90 Fax 0049 / (0)7667 / 20 777 99 E-Mail: info@mib-gmbh.com Internet: www.flowmax.de...
