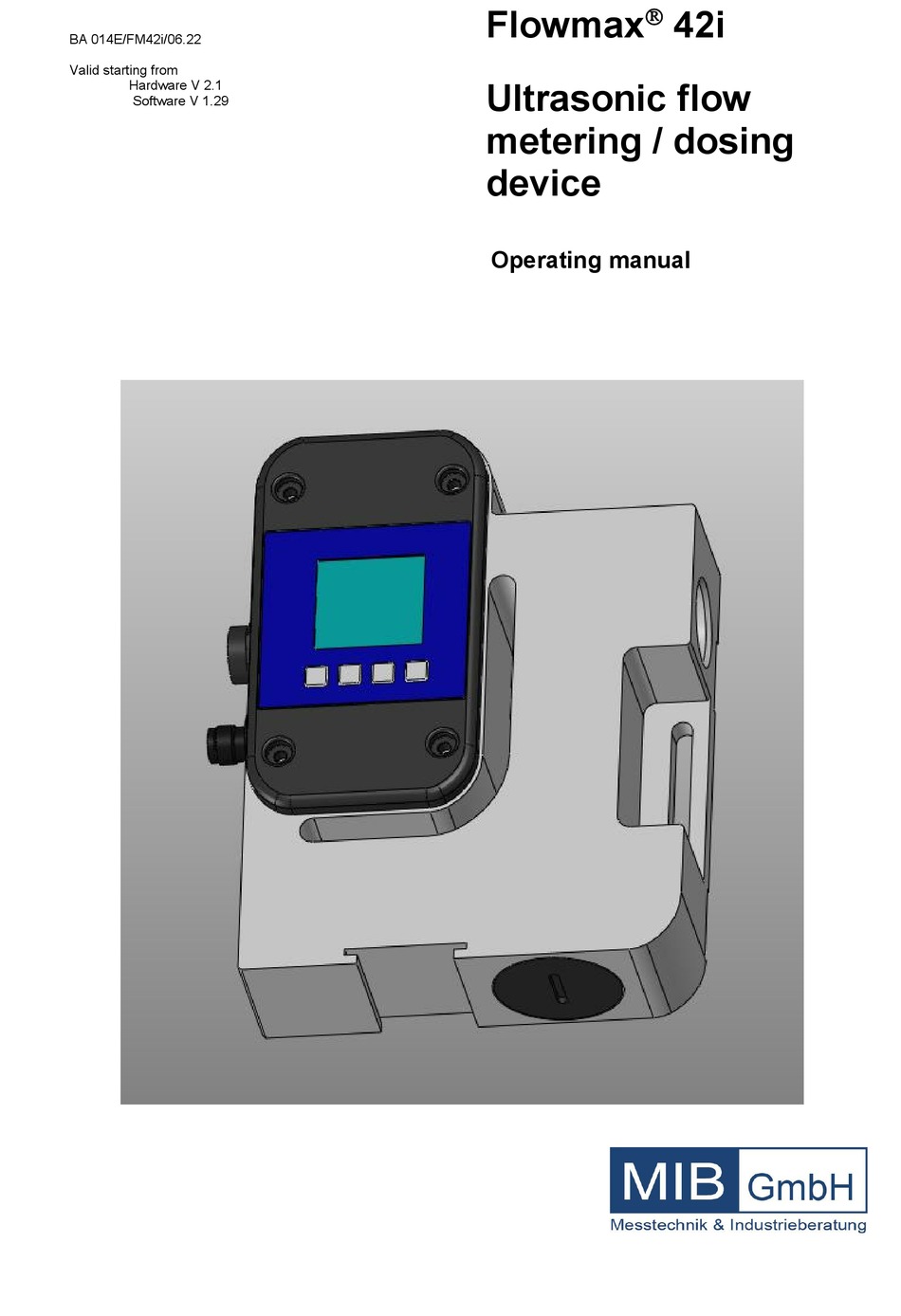

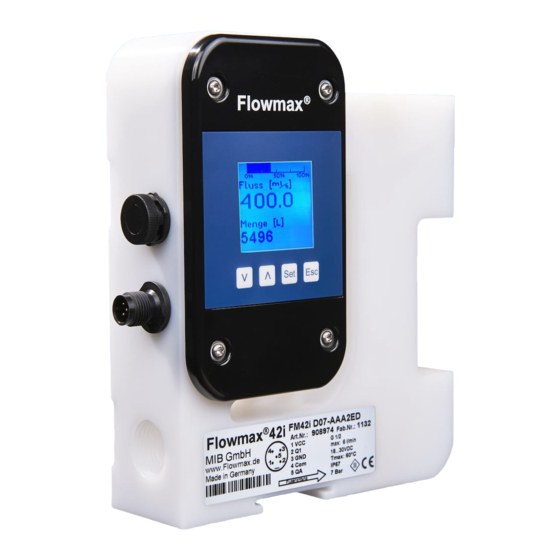

- Page 1 Flowmax BA 014E/FM42i/06.22 Valid starting from Hardware V 2.1 Ultrasonic flow Software V 1.29 metering / dosing device Operating manual...
-
Page 2: General Safety Instructions
NOTICE! is used to lead users to helpful NOTICE! information not related to personal injury. Intended use The flowmeter Flowmax 42i may only be used for measuring the flow of pure, homogeneous liquids. The Flowmax 42i is not intended for use in medical applications. -
Page 3: Table Of Contents
Flowmax Contents Contents General safety instructions ......................2 Contents ............................3 List of figures ..........................4 Planning information ......................5 1.1 Areas of application..........................5 1.2 Measuring principle ..........................5 1.3 Operational safety ............................ 6 Assembly and installation..................... 7 2.1 Installation instructions .......................... -
Page 4: List Of Figures
Figure 1: Presentation of the principle of ultrasonic flow measuring ..............5 Figure 2: ideal installation position of Flowmax 42i in the compact version ............7 Figure 3: ideal installation position of Flowmax 42i in the separated version ............ 7 Figure 4: Mounting examples for Flowmax 42i .................... -
Page 5: Planning Information
Planning information 1. Planning information 1.1 Areas of application The flow measurement device Flowmax 42i is designed to measure dynamic flow in pipes and tubes. This flowmeter is suitable for liquids only. The Flowmax 42i is used in Chemicals supply for controlling, logistics, monitoring ... -
Page 6: Operational Safety
Faults (process or system errors) are output on a digital output or displayed on the display menu. The protection class is IP 65. Flowmax 42i meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. -
Page 7: Assembly And Installation
Notwithstanding it may be advantageous for dosing applications to install the Flowmax 42i as close as possible to the dosing valve, as soft pipes change the cross-section depending on the system pressure. This may lead to repeatable differences. -
Page 8: Assembly Of The Flowmeter
Assembly and installation Flowmax When using pumps, Flowmax 42i must be installed in flow direction on the pressure side, in order to ensure sufficient pressure. The maximum pressure rating of Flowmax 42i has to be considered. WARNING! Do not exceed the maximum pressure allowance for of the Flowmax 42i (see section 5.3 Technical specifications). -
Page 9: Figure 5: Mounting Possibilities
Vibrations or mechanical forces may decrease measuring accuracy. So if there is due to vibration or mechanical movements is necessary to fix Flowmax 42i additionally, the instrument can be either mounted on a DIN rail, or be fixed on the lateral slot. -
Page 10: Electrical Wiring
Always shut off or disconnect electrical power at service panel and WARNING! lock switch or breaker and tag to prevent energizing electrical power during work or while Flowmax 42i is not assembled and installed. Wiring installation, disassembly and removal must be performed by qualified persons experienced and knowledgeable about electrical work. - Page 11 Flowmax Assembly and installation 5-pin plug with RS485 communication and current output: Function Description 24 VDC Voltage Supply: 18 ... 30 VDC Communication RS 485 B Ground: 0 V Communication RS 485 A Analog output QA 4 ... 20mA; 0 ... 20mA Example: 0l/min =>...
-
Page 12: Figure 9: Pin Code: Connection Plug / Socket For 8-Pin Version
Assembly and installation Flowmax 8-pin plug with 1-wire communication: Figure 9: Pin code: Connection plug socket for 8-pin version Connector cable pin configuration defined by manufacturer. The outlets may be re-programmed for specific applications. Function Description 24 VDC Voltage supply: 18 ... 30 VDC Digital output Q1 Digital output Q1 Functions... -
Page 13: Figure 10: Pin Code: Connection Plug / Socket For 8-Pin Version
Only operate the flowmeter Flowmax42i within the operating limits stipulated on the product label and the operating manual / data sheet. IMPORTANT! Use of the Flowmax 42i outside these conditions will lead to overloads which cause permanent damage. M I B... -
Page 14: Commissioning
NOTE: If Flowmax 42i is used for a fluid other than water the "basic trim" has to be NOTICE! carried out during commissioning. Therefore the device has absolutely be filled with medium. -
Page 15: Display And User Menu
The default password for Flowmax 42i is 41414. The user level will remain active for 30 minutes after the last press on any button. 200 seconds after the last key press, the device skips the menu and returns to the display mode, which does not apply to the menu items diagnostic and dosing. - Page 16 Commissioning Flowmax M I B...
-
Page 17: Figure 12: Menu Structure Flowmax 42I
Flowmax Commissioning Figure 12: Menu structure Flowmax 42i M I B... -
Page 18: Functionalities Of Flowmeter And Default Settings
Spanish, French and German. 3.2.2 Dosing The Flowmax 42i can be configured for manually dosing by choosing the dosing function via the user display. The Volume “Dosing Quantity“ and the “Dosing Time“ are freely adjustable. The dosing time is intended as a safeguard against unintentional overspill. -
Page 19: Media
In the sub menu “Set Offset” it is possible to set the actual offset of the flowmeter. Use this function only when Flowmax 42i is completely filled with liquid, and there is no flow, as this condition is the new “zero” value. -
Page 20: Basic Trim
3.2.3.4 Basic Trim The “Basic Trim” function insures that the flowmeter is conforming to the media NOTICE! specific characteristics. To execute this function, Flowmax 42i runs a self- diagnostic function which optimizes all important parameters. This process lasts approximately 1 minute. -
Page 21: General Settings
Flowmax Commissioning 3.2.4 General Settings 3.2.4.1 Reset Counter The volume counter of Flowmax 42i can be reset. Example of operation see appendix. IMPORTANT! Once reset, counter values cannot be restored. After a reset the counter works IMPORTANT! normally. 3.2.4.2 Empty pipe delay Small air bubbles or particles, which are carried with the liquid, disturb the sound transmission in the measuring channel. -
Page 22: Lower Limit
Commissioning Flowmax Lower Limit=60ml/s Hysteresis=15 ml/s Filter=Off Lower Limit Untergrenze 60 [ml/s] 60 [ml/s] Lower Limit – Hysteresis Untergrenze - 45 [ml/s] Hysteresis 45 [ml/s] Lower Limit + Untergrenze + Hysteresis 75 [ml/s] Hysteresis 75 [ml/s] Flow filter Fluss Filter [ml/s] [ml/s] Digital Output = Lower Limit... -
Page 23: Pulse Value
The pulse value determines the flow volumes for which an output pulse will be emitted. Choose a configuration which will neither exceed the maximum output frequency of the Flowmax 42i (10kHz) nor the maximum input frequency of the control. If the maximum frequency is exceeded the Flowmax 42i will not output pulses correctly. -
Page 24: Display
Total counter runs without resetting on. 3.2.5 Display 3.2.5.1 Units Flowmax 42i is able to show actual flow or the volume in different units. Setting range: ml/s + l, l/h + l, l/min + m³, Gal/min +Gal, l/min + l... -
Page 25: Flashing
Flowmax Commissioning 3.2.5.4 Flashing The display flashes in case off an error. This can be switched off. When activating the alarm flashing, the backlight first flashes after 150s. The time is extended by the set empty pipe delay time, when the empty pipe delay is active. -
Page 26: Figure 17: Characteristic Curve 0
Commissioning Flowmax Characteristic curves analog output 0 … 20mA For the following graphic “min Range” is used for 0% and “max Range” is used for 100%. Current output 0 ... 20mA Value [%] Value Current [mA] Smaller 0% 0% (min Range) Between 0% and 100% Linear interpolation from 0 ... -
Page 27: Filter
When this function via the menu (see Section 3.1.1 Fig 12. Menu structure NOTICE! Flowmax 42i with analog output QA - Output value) is selected and the function PID controller was not ordered, the output will be set on “flow”. -
Page 28: Digital Outputs Q1 And Q2 (Q2 Only Available With 8-Pin Plug)
Commissioning Flowmax Temperature measurement for the analog output Via the analog output the measured temperature is output. The temperature sensor is not wetted. It is used to calculate the extent of the measuring channel. The sensor is influenced by the ambient temperature. The temperature value will become sluggish, because it measures the plastic - Temperature inside the sensor pocket. - Page 29 If the dosing output is configured as normal closed the valve will stay open after the dosing batch. IMPORTANT! IMPORTANT! Inductive load on the digital outputs without an installed diode may cause damage on the Flowmax 42i electronics. M I B...
-
Page 30: Figure 21: Connecting Digital Output To Relay
Example 1: Flowmax 42i via npn, external relay Figure 21: Connecting Digital Output to relay Example 2: Flowmax 42i via pnp, external counter e.g. PLC Figure 22: Connecting Digital Output to counter With high impedance input counters and high speed counting, it may be necessary to include a resistor to have clean edges. -
Page 31: Digital Input I1 (Only Available With 8-Pin Plug)
Commissioning 3.2.8 Digital Input I1 (only available with 8-pin plug) Flowmax 42i has a digital input that is programmable for the following functions: dosing input, set offset, creeping suppression inactive and reset counter. In order to start a dosing process, 24V DC power is required. The status of the dosing parameters or modifications can be done via user display or FlowCon 200i. -
Page 32: Overview Of Default Settings
When everything has been checked, switch on power. After 30 minutes with power running the measuring device reaches the maximum accuracy. The meter reaches the optimum operating state after 30 minutes. See 3.Commissioning. Flowmax 42i is operational! M I B... -
Page 33: Exchange Of Flowmeter
If the device requires a configuration change, the display and programming unit FlowCon 200i may be required (see section 6. Accessories). Repair, hazardous substances Before sending the flowmeter Flowmax 42i for repair, the following precautions must be taken: Clean all process chemicals from the device. Fully rinse the flow ... -
Page 34: Technical Specifications
Technical specifications Flowmax 5. Technical specifications 5.1 Dimensions and weight of the compact version Nominal Height A Depth B Width E Weight diameter [mm] [mm] [mm] [mm] [mm] [mm] [mm] 167.5 G1/2 167.5 G1/2 167.5 G1/2 DN10 170.5 G3/4 26.5 DN15 175.5... -
Page 35: Dimensions And Weight Of The Separated Version
Flowmax Technical specifications 5.2 Dimensions and weight of the separated version Weight: 330g Weight Diameter [mm] [mm] [mm] [mm] [mm] [mm] 82.5 G1/2 82.5 G1/2 82.5 G1/2 DN10 92.5 G3/4 The cable between the measuring section and the transmitter may have a maximum length of 2 m. -
Page 36: Technical Specifications
… 60 l/min Repeatability: 0.5% The measuring system Flowmax 42i meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. It is in conformity with the requirements of the EC directives and has the CE label. -
Page 37: Accessories
However, the measurement still works. 6. Accessories Flowmax connection socket Flowmax connection socket is used to power and connect Flowmax 42i to an external control unit. Ordercode 507321 (Socket 5 pins) Ordercode... -
Page 38: Appendix
Appendix Flowmax Appendix Examples of operation: Enter Password Display picture Password 4 x Λ 40000 X0000 Λ X1000 XX000 4 x Λ XX400 XXX00 Λ XXX10 XXXX0 4 x Λ XXXX4 Reset Counter Dosing Media General Adjustment Display Analog Output QA General Adustment Reset Counter General Adjustment... - Page 39 Appendix Set Offset Use this function only when Flowmax 42i is completely filled with liquid, and there is no flow. If the offset is set while flow is present or when the pipe is empty it will cause an offset drift what results in a faulty measurement.
- Page 40 Appendix Flowmax Setting the sign Setting the value Media 1-Point-Correction Done To enable the correction back to delivery, a correction of 00.0% is to be entered. Display rotate 90° Dosing Media General Adjustment Display Analog Output QA Media General Adjustment Display Analog Output QA Digital Output Q1...
- Page 41 Flowmax Appendix M I B...
- Page 42 Appendix Flowmax M I B...
- Page 43 Flowmax Appendix M I B...
- Page 44 MIB GmbH Messtechnik und Industrieberatung Bahnhofstr. 35 D-79206 Breisach Tel. 0049 / (0)7667 / 20 777 90 Fax 0049 / (0)7667 / 20 777 99 E-Mail: info@mib-gmbh.com Internet: www.flowmax.de...
