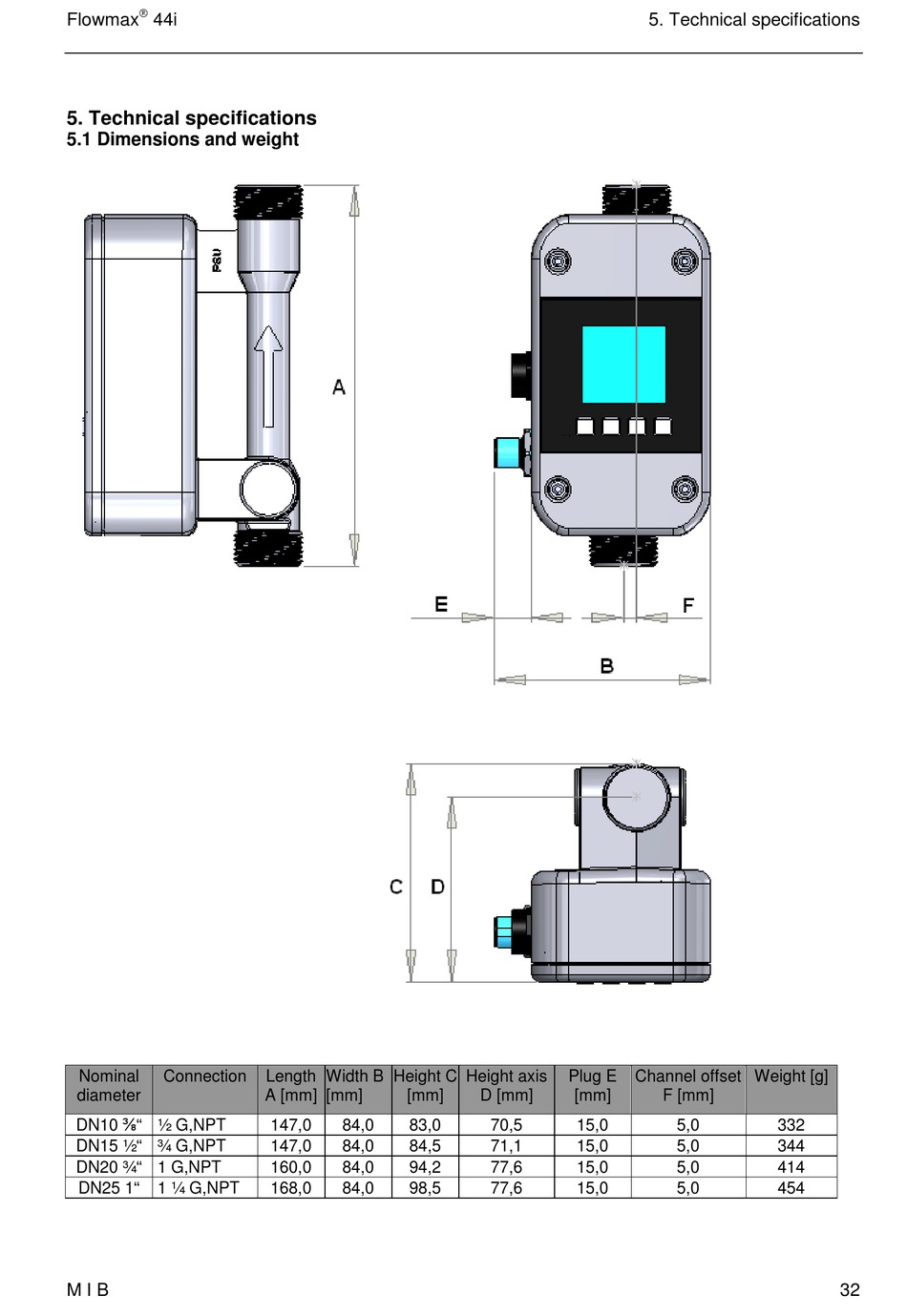

5. Technical specifications
5.1 Dimensions and weight
Nominal
Connection
diameter
DN10 ⅜" ½ G,NPT
DN15 ½" ¾ G,NPT
DN20 ¾" 1 G,NPT
DN25 1"
1 ¼ G,NPT
M I B
Length
Width B
Height C
A [mm]
[mm]
[mm]
147,0
84,0
83,0
147,0
84,0
84,5
160,0
84,0
94,2
168,0
84,0
98,5
Height axis
Plug E
Channel offset
D [mm]
[mm]
70,5
15,0
71,1
15,0
77,6
15,0
77,6
15,0
5. Technical specifications
Weight [g]
F [mm]
5,0
332
5,0
344
5,0
414
5,0
454
32
