Flowmax 44i
Lag Creeping Flow
The activation of the creeping suppression can be delayed. The value is
adjustable via menu.
Function Lag Creeping Flow
Example 2 Seconds
45
40
35
30
25
20
15
10
5
0
0 1 2

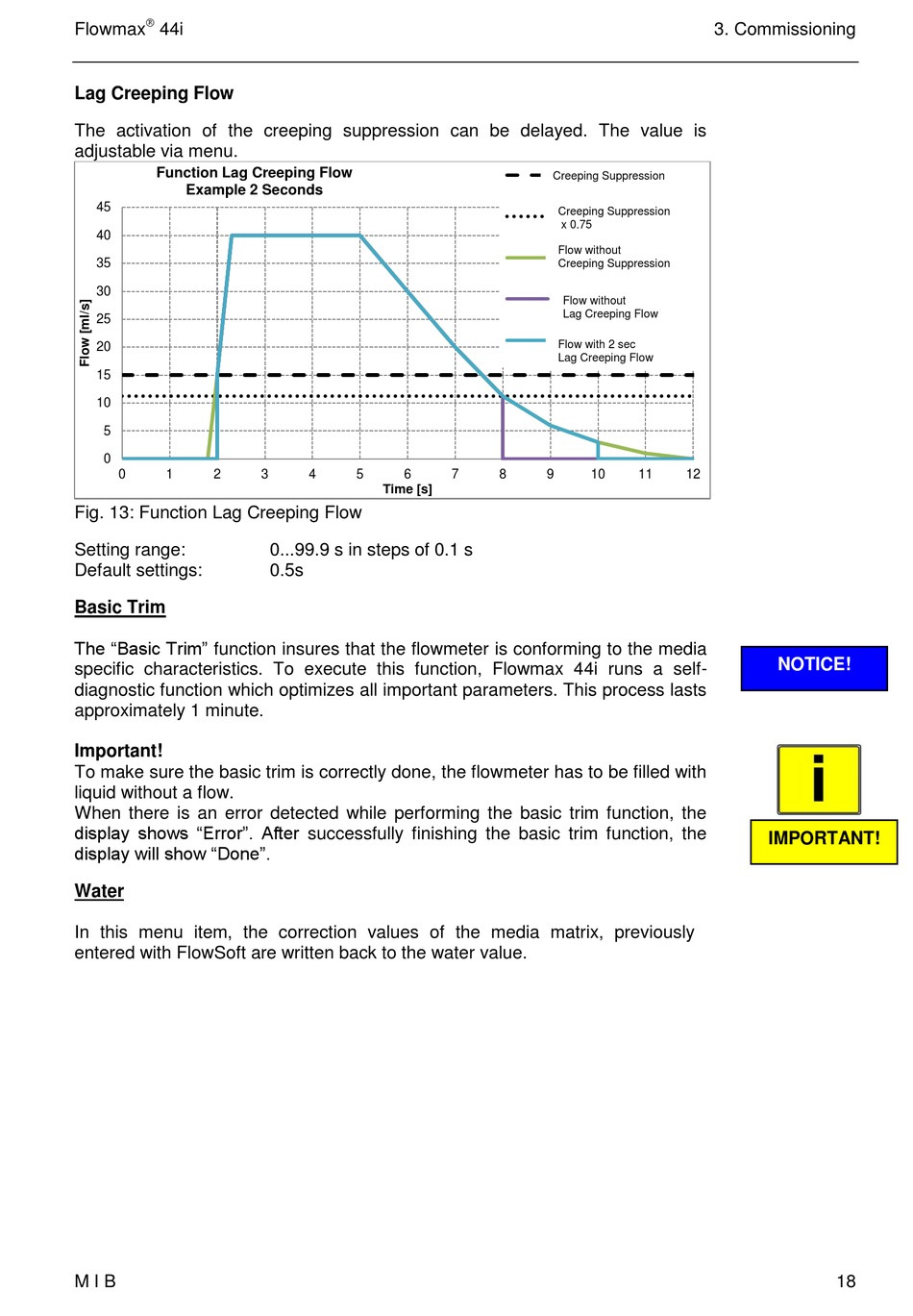

Fig. 13: Function Lag Creeping Flow

Setting range:
Default settings:
Basic Trim
The "Basic Trim" function insures that the flowmeter is conforming to the media
specific characteristics. To execute this function, Flowmax 44i runs a self-
diagnostic function which optimizes all important parameters. This process lasts
approximately 1 minute.
Important!
To make sure the basic trim is correctly done, the flowmeter has to be filled with
liquid without a flow.
When there is an error detected while performing the basic trim function, the
display shows "Error". After successfully finishing the basic trim function, the
display will show "Done".
Water
In this menu item, the correction values of the media matrix, previously
entered with FlowSoft are written back to the water value.
M I B
3 4 5 6
Time [s]
0...99.9 s in steps of 0.1 s
0.5s
Schleichmenge
Creeping Suppression
Creeping Suppression
Schleichmenge x 0,75
x 0.75
Flow without
Fluss ohne Schleichmenge
Creeping Suppression
Fluss ohne
Flow without
Schleichmengeverzögerung
Lag Creeping Flow
Fluss mit Schleichmenge 2s
Flow with 2 sec
Verzögerung
Lag Creeping Flow
7 8 9 10
3. Commissioning
11 12
