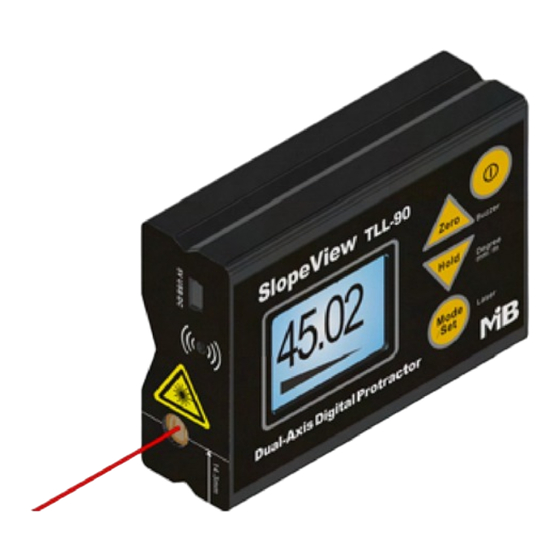

- Page 1 SlopeView TLL-90 User Guide V20100426 MIB Instruments Co. ,Ltd...
-
Page 2: Table Of Contents
CONTENT Title Page Introduction Specification Button and LCD Icon Battery Charging Degree or mm Measurement Mode Relative/ Absolute Measurement “Hold” function Auto Power Off Restore Factory Setting Angle Alarming Laser Alignment Calibration PC Communication Application Warranty MIB Instruments Co. ,Ltd... -
Page 3: Introduction
1) Introduction The SlopeView TLL-90 is a low cost and high accurate device for measuring surface and single axis inclinations. It is based on the revolutionary technology called Micro- Electro-Mechanical Systems (MEMS), in conjunction with sophisticated software techniques to accomplish a guaranteed accuracy of better than ±0.05º and with measurement resolution of 0.01º... -
Page 4: Specification
5V 500mA Mini type-B USB port Power Consumption: Standby: 200uA, Operation: 20mA. Standby Battery Life: 2000 hours Operating Battery Life: 40 hours Dimensions (in mm): 93(L) x 66(W) x 28(H) Magnetic Base: affix at the bottom and back. MIB Instruments Co. ,Ltd... -
Page 5: Button And Lcd Icon
Press and hold for 3 seconds to enable or disable sound. The icon on LCD will be displaced accordingly. The buzzer beep could be set at different accuracy level. Refer to section “Angle Alarming”. MIB Instruments Co. ,Ltd... - Page 6 Press to turn laser ON/OFF. The laser line is aligned in parallel with the Top and Bottom side edges, perpendicular with the Back side. To switch on/off the laser beam, simply press the Laser Button again. MIB Instruments Co. ,Ltd...
- Page 7 User can switch the measured unit to either mm/m (mm per meter) or in degree mode. The mm/m unit indicates how many mm/m to level. It is calculate by: mm/m = sin (Angle) * 1000 mm MIB Instruments Co. ,Ltd...
- Page 8 Dual-Axis Mode. Both the X and Y axis angle will be showed. Dual axis mode measures inclination upto +-30 degree for each axis before it automatically switch to single axis mode. MIB Instruments Co. ,Ltd...
- Page 9 Single Axis Mode. Measure slope upto +-90 degree. The triangle icon indicates the direction of tilt with respect to the bottom right corner of the unit. MIB Instruments Co. ,Ltd...
-
Page 10: Battery Charging
4) Battery Charging The SlopeView TLL-90 has a built in Lithium Ion rechargeable battery. A standard charger is supplied that the input voltage is 110V to 240V AC, 50/60Hz, and the output is 5V DC, 500mA. The charger operating procedure is list below:... -
Page 11: Degree Or Mm Measurement Mode
- The reading is 5mm/m on LCD - That means Y= 5X1.5= 7.5mm difference from leveling. Degree and mm/m Mode Switching: Press and hold the “HOLD” key for 3 seconds to switch between the Degree and mm mode. MIB Instruments Co. ,Ltd... -
Page 12: Relative/ Absolute Measurement
7) Hold Function Holding Mode: LCD Icon blinking: Holding function: Press and release the “HOLD” key to activate holding function, digit will freeze. Press and release the “HOLD” key to cancel the holding function. MIB Instruments Co. ,Ltd... -
Page 13: Auto Power Off
1. Press and hold “Laser/Set” key and enter MENU mode 2. Select “FACTORY SET” by “Zero” and “Hold” key, press “Laser/Set” key to enter FACTORY SET mode 3. Scroll “YES” or “NO” by “Zero” and “Hold” key 4. Press “Laser/Set” key to confirm MIB Instruments Co. ,Ltd... -
Page 14: Angle Alarming
The range (Degree)that will trigger the audible alarming For example: SINGLE. set to 20.00 RANGE set to 01.00 While the unit is in +19 ْ to +21 ْ or -19 ْ to -21 ْ , the unit will alarm MIB Instruments Co. ,Ltd... -
Page 15: Laser Alignment
2) Place TLL90 on the metal plate with dual axis mode 3) Tune the 2 screw and let the metal plane become level 4) You can then laser on the TLL90 and it will project a vertical or horizontal line to the wall within 5m. MIB Instruments Co. ,Ltd... - Page 16 MIB Instruments Co. ,Ltd...
-
Page 17: Calibration
At Step2, you measured X2 and Y2, in theory X1=-X2, Y1=-Y2. If the error is too large, you can enter calibration mode to eliminate the error Accuracy drift is causing by large ambient temperature change (5 to 10 Degree Celsius) or the unit has been dropped. MIB Instruments Co. ,Ltd... - Page 18 Step 2: Then rotate the unit 180 degree with the other side against the at the same place. Press the Set button again, and wait for the beep finished. CALIBRATE ROTATE 180 DEGREE, DUAL AXIS PRESS SET PRESS SET Step 1 Step 2 MIB Instruments Co. ,Ltd...
- Page 19 Step 4: Then rotate the unit 180 degree at the same place. Press the Set button again, and wait for the beep finished. CALIBRATE ROTATE 180 HORIZONTAL DEGREE, PRESS SET PRESS SET Step 3 Step 4 MIB Instruments Co. ,Ltd...
- Page 20 Now, the LCD should go back to the selection menu. The calibration is done, by selecting “Back” to go back for normal operation CALIBRATE ROTATE 180 VERTICAL DEGREE, PRESS SET PRESS SET Step 5 Step 6 MIB Instruments Co. ,Ltd...
-
Page 21: Pc Communication
13) PC Communication Slopeview TLL-90 has a PC data logging function. You can not directly plug the USB cable between PC to TLL-90 by a general USB cable. You need to optional purchase the PC adapter (model number: SV-RS232) You can continue to data logging TLL-90 X and Y inclination data to PC. -
Page 22: Application
14) Application -Interior decoration -Construction area -Plumbing -Floors & Stairs -Woodwork MIB Instruments Co. ,Ltd... -
Page 23: Warranty
15) Warranty The SlopeView TLL-90 comes with 12 months warranty from the data of purchase. The warranty ensures the SlopeView TLL-90 is free of defects in materials and workmanship during manufacturing. In case of malfunction or defects due to materials or workmanship, MIB Instruments Co. will repair or replace the device...
