Flowmax 44i 3. Commissioning
Important!
Inductive load on the digital outputs without an installed diode may cause
IMPORTANT!
damage on the Flowmax 44i electronics.
Example 1: Flowmax 44i via npn, external relay

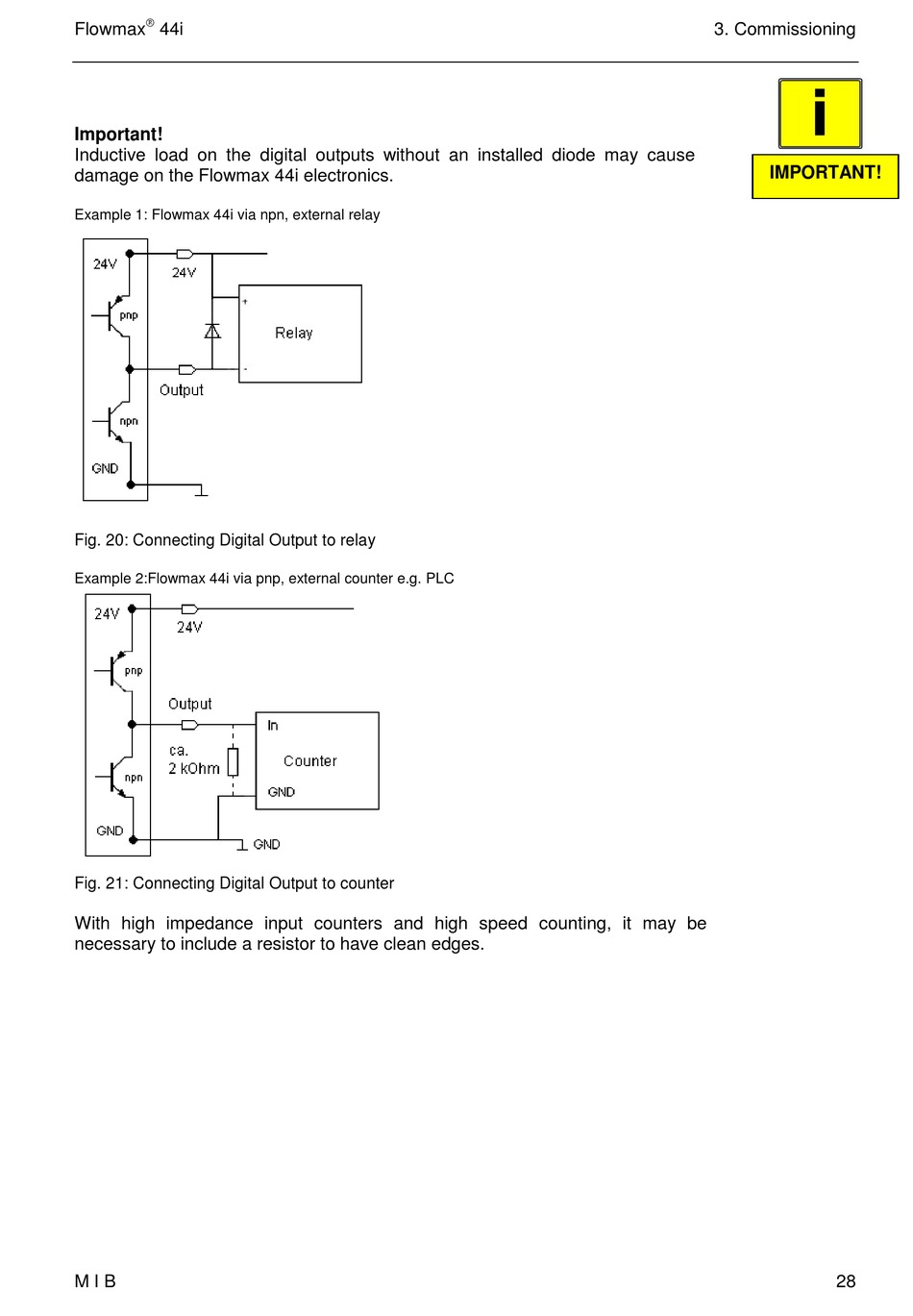

Fig. 20: Connecting Digital Output to relay

Example 2:Flowmax 44i via pnp, external counter e.g. PLC

Fig. 21: Connecting Digital Output to counter

With high impedance input counters and high speed counting, it may be
necessary to include a resistor to have clean edges.
M I B 28
