SDP660 – USER MANUAL

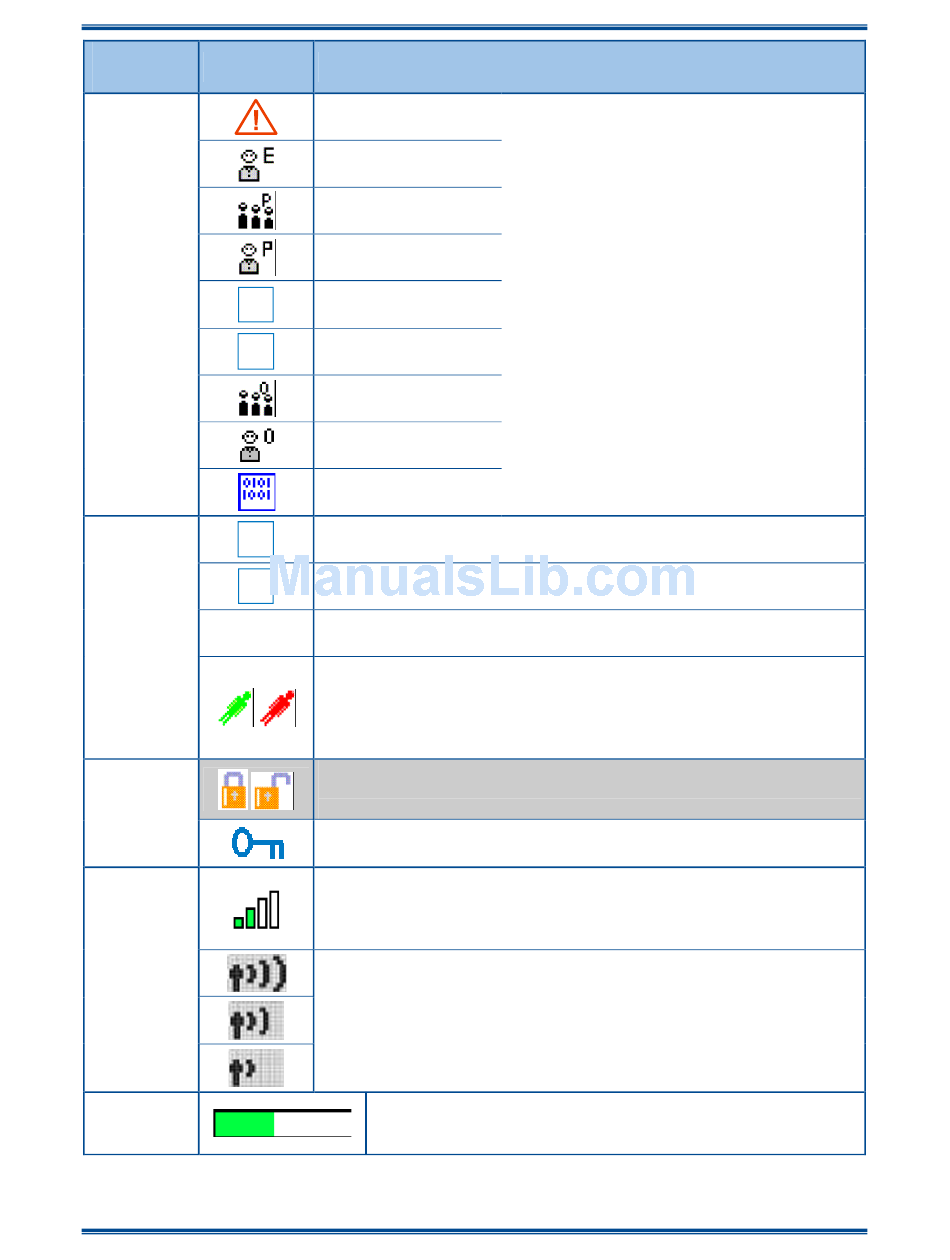

Icon
ICON
Position
Icon 4
(Call Type
contd.)
ALL
B
Icon 5
TA
(Misc.)
GPS
Icon 6 (Misc.)
Tx/Rx Level
Bar Icon
Jul 13 (Iss 1.1)
Emergency Call.
Individual Emergency.
Priority Group Call.
Priority Individual Call.
All Call.
Broadcast Call.
OVCM Group Call.
OVCM Individual Call.
Data Call.
Talk Around enabled. Talk Around is enabled for current channel only.
Global Positioning System Icon. Icon will flash while waiting to acquire
GPS location. Icon will be steady if location acquired.
Lone Worker. When Lone Worker function enabled, it will display and
start a countdown timer.
Man Down. When 'Man Down' facility enabled, Icon will:
Green
Flash while calibrating and remembering the radio orientation.
Steady Green once orientation has been remembered.
Flash Red when the man-down sensor has detected a lack of motion, an
impact to, or an abnormal orientation of the Radio.
Encryption. If channel has digital encryption enabled or an encrypted
digital signal is received, the padlock icon will be displayed. For Future
Development.
Keypad Locked. Displayed when the Keypad Locked function is enabled.
Received Signal Strength Indication (RSSI). The number of bars displayed
corresponds to the received signal strength.
0 bars = -128 dBm. 4 bars = -103 dBm or stronger.
Rx level is displayed while scanning.
Displayed while Transmitting. Indicates the channel's power setting
High/Medium/Low. If Low power override function enabled, the low power
icon will be displayed.
The actual power settings associated with H/M/L are defined in the FPP.
Displayed in the Text panel as a temporary progress or level
indicator, e.g. volume being changed.
Future: Display for Lone Worker time remaining.
Page 26
INDICATION
MAIN SCREEN LAYOUT
TNM-U-E-0114
