Fitting The Battery; Fitting The Antenna; Figure 1. Fitting The Battery; Figure 2. Fitting The Antenna - Simoco SDP660 User Manual

SDP660 – USER MANUAL
Table 2. Charge Indications.
Charge State
Battery absent
Fast Charge
Charge Complete
Charge suspended (High or Low Temp
2.1.2

Fitting the Battery

Insert the battery into the bottom of the radio. (See arrow 1 in Figure 1 below).
Press down slightly on the battery release clip located at the top of the battery until a click is heard.
(See arrow 2).
To remove the battery, turn the radio off. Slide the battery release clip downwards to release the
battery.
2.1.3

Fitting the Antenna

With the radio turned off, locate the antenna in its threaded socket and turn clockwise to tighten.
To remove the antenna, ensure the radio is turned off and turn the antenna counterclockwise.
Jul 13 (Iss 1.1)
Red LED
1 Hz Flashing
1

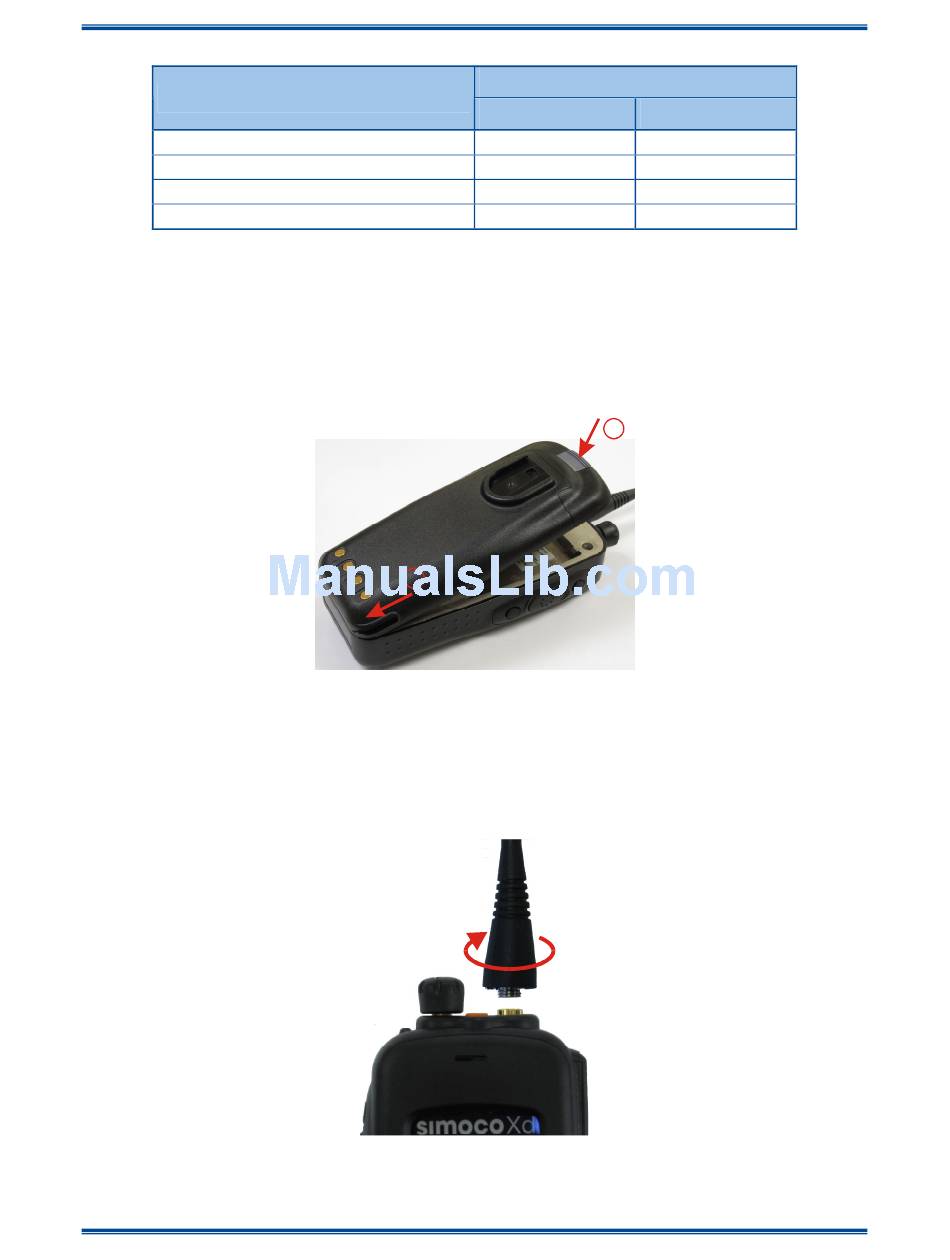

Figure 1. Fitting the Battery.

Figure 2. Fitting the Antenna.
