Simoco SDP600 Series Brief User's Manual

DISPLAY
Icon
Indicates that the keypad is locked. Press OK key for 2 seconds to unlock.
DMR Icon. Displayed when DMR Digital Channel selected.
Analogue Icon. Displayed when an Analogue Channel selected.
Solid Speaker Icon. Radio is receiving a valid signal, and audio can be heard from
the speaker.
Speaker Outline Icon. Radio is receiving a valid signal. The channel is busy so
user should not transmit.
Rotating Arrow. Radio is scanning a group of channels or trunked system when
in trunked mode.
rrow Icon. Indicates that the radio is transmitting.
A
Normal Mode. Only radio signals from the users own network will be heard on
the speaker.
Duplex Mode. Indicates duplex two-way communication is activated and in
progress.
Group Call
Individual Call
The call type displayed depends on the valid call type
Emergency Call
received or the call type associated with the selected
Individual Emergency
Contacts entry.
Broadcast Call
Telephone Call
Received Signal Strength Indicator (RSSI). Associated bars show signal strength
Displayed while Tx'ing. Indicates the channel's power setting High/Medium/Low.
If channel has digital encryption enabled or an encrypted digital signal is
received, the padlock icon will be displayed.
Envelope Icon. Indicates that a message(s) stored if Icon steady. Icon flashes if
unread messages(s) stored.
Battery Charge indicator. Always displayed on default screen. Goes Red when
battery low.
Function
SDM660
BRIEF USER GUIDE
TNM-U-E-0116
2.0
Note:- The SDP600 Series has two variants, one with a key pad (SDP660) and one without
(SDP650).
.
INTRODUCTION

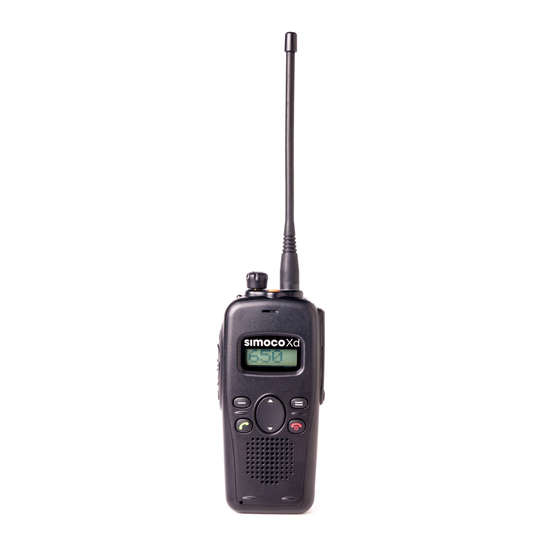

The SDP600 series radios are software defined portable two-way radio transceivers with
many customisable parameters to suit individual requirements.
Menus and Key Functions can be configured to customer requirements.
For greater operational functional detail, refer to the main User Guide, TNM-U-E-0114,
which is available for download, along with a comprehensive list of other documentation, on
the Simoco website http://www.simocowirelesssolutions.com via the Partner Portal.
