RX-9010VBK

Disassembly method

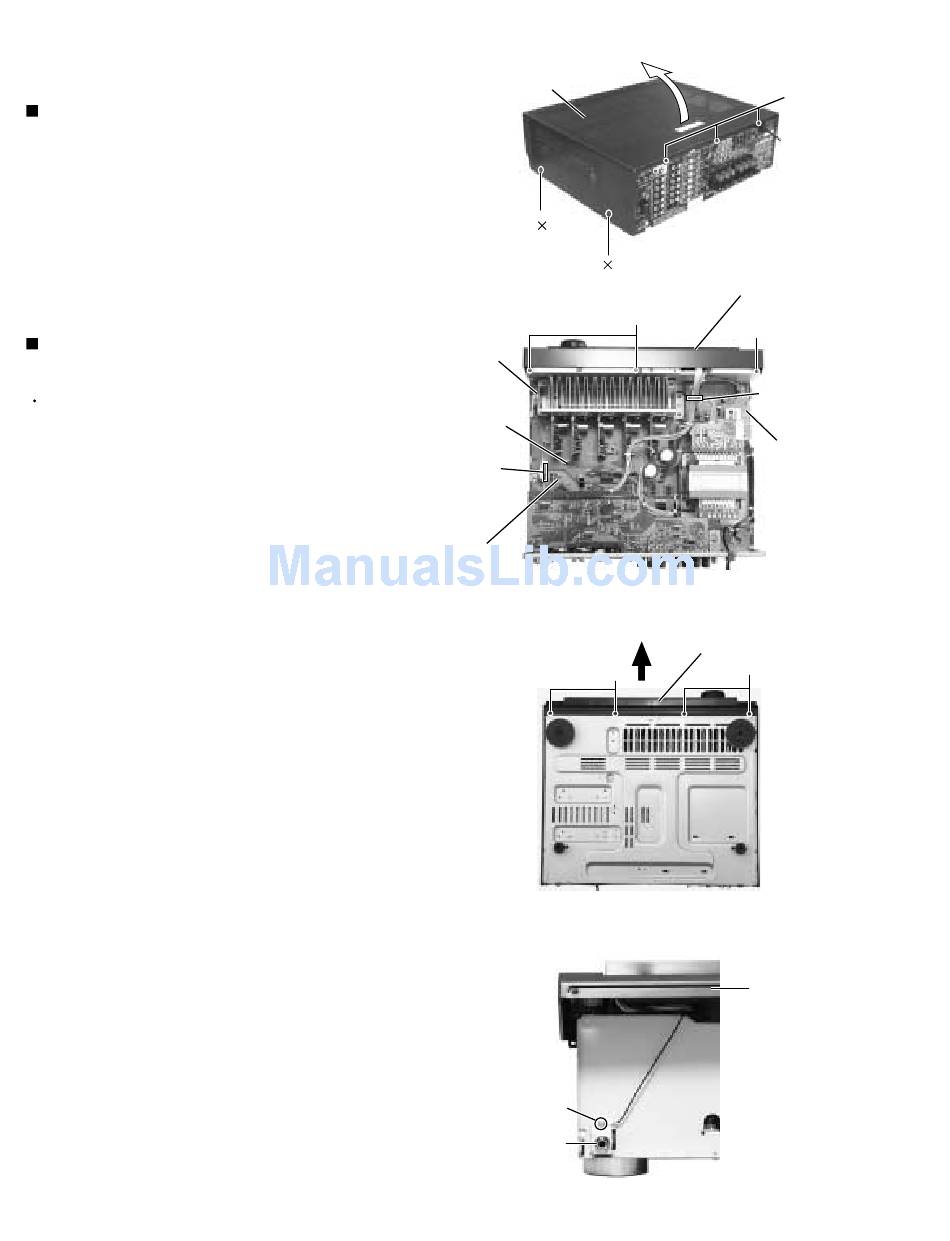

Removing the top cover (See Fig.1)
1. Remove the four screws A attaching the top cover
on both sides of the body.
2. Remove the three screws B on the back of the body.
3. Remove the top cover from behind in the direction of
the arrow while pulling both sides outward.
Removing the front panel assembly
Prior to performing the following procedure, remove
the top cover.
1. Disconnect the card wire from connector CN400 on
the audio board and CN402 on the power supply
board in the front panel assembly.
2. Cut off the tie band fixing the harness.
3. Remove the three screws C
panel assembly.
4. Remove the four screws D attaching the front panel
assembly on the bottom of the body. Detach the front
panel assembly toward the front.
5. Remove the screw a fixing a bonding ground.
1-4
Tie band
(See Fig.2 to 4)
Main
board
CN400
Audio board
attaching the front
Headphone jack
Top cover
A
2
Fig.1
A
2
C
Fig.2
Front panel assembly
D
Fig.3
a
Fig.4
B
Front panel assembly
C
CN402
Power
supply
board
D
Front panel
assembly
