JVC RX-9010VBK Service Manual page 74

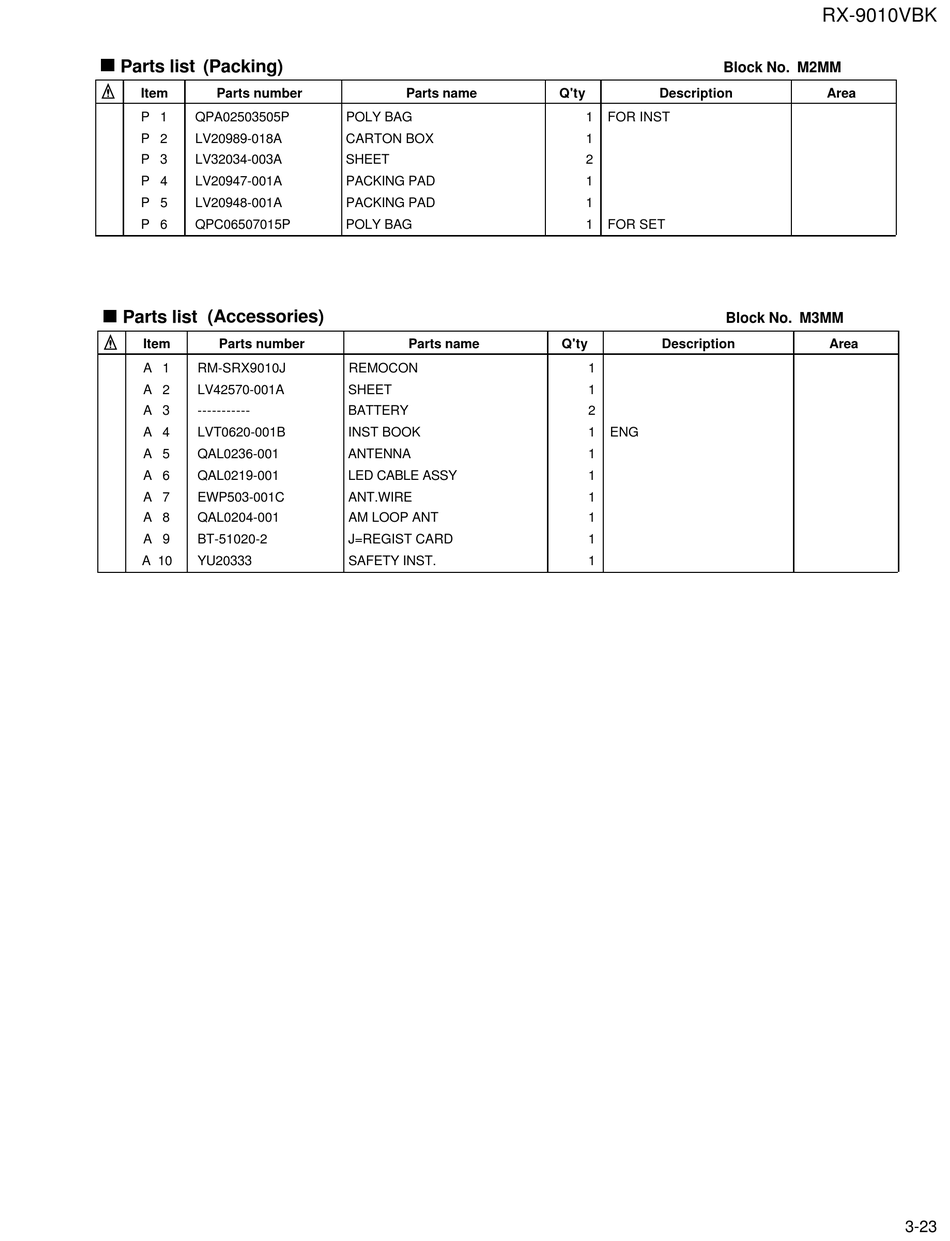

Parts list
(Packing)
A
Item Parts number
P 1 QPA02503505P
P 2 LV20989-018A
P 3 LV32034-003A
P 4 LV20947-001A
P 5 LV20948-001A
P 6 QPC06507015P
(Accessories)
Parts list
A
Item Parts number
A 1 RM-SRX9010J
A 2 LV42570-001A
A 3 -----------
A 4 LVT0620-001B
A 5 QAL0236-001
A 6 QAL0219-001
A 7 EWP503-001C
A 8 QAL0204-001
A 9 BT-51020-2
A 10 YU20333
Parts name
POLY BAG
CARTON BOX
SHEET
PACKING PAD
PACKING PAD
POLY BAG
Parts name
REMOCON
SHEET
BATTERY
INST BOOK
ANTENNA
LED CABLE ASSY
ANT.WIRE
AM LOOP ANT
J=REGIST CARD
SAFETY INST.
Block No. M2MM
Q'ty Description
1 FOR INST
1
2
1
1
1 FOR SET
Block No. M3MM
Q'ty Description
1
1
2
1 ENG
1
1
1
1
1
1
RX-9010VBK
Area
Area
3-23
