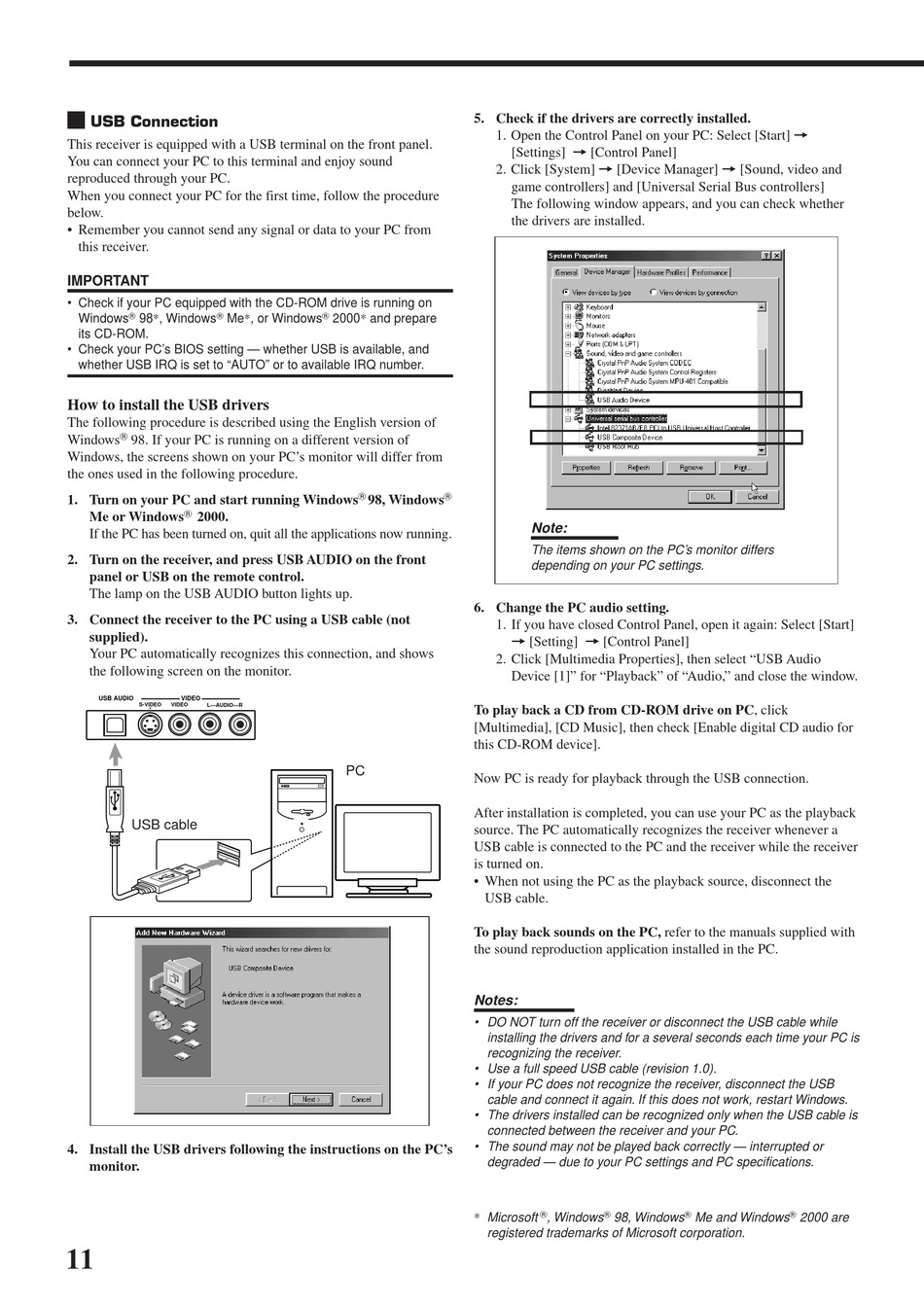

USB Connection

This receiver is equipped with a USB terminal on the front panel.
You can connect your PC to this terminal and enjoy sound
reproduced through your PC.
When you connect your PC for the first time, follow the procedure
below.
• Remember you cannot send any signal or data to your PC from
this receiver.
IMPORTANT
• Check if your PC equipped with the CD-ROM drive is running on
R R
Windows 98*, Windows Me*, or Windows
its CD-ROM.
• Check your PC's BIOS setting — whether USB is available, and
whether USB IRQ is set to "AUTO" or to available IRQ number.
How to install the USB drivers
The following procedure is described using the English version of
R
Windows 98. If your PC is running on a different version of
Windows, the screens shown on your PC's monitor will differ from
the ones used in the following procedure.
1. Turn on your PC and start running Windows
R
Me or Windows 2000.
If the PC has been turned on, quit all the applications now running.
2. Turn on the receiver, and press USB AUDIO on the front
panel or USB on the remote control.
The lamp on the USB AUDIO button lights up.
3. Connect the receiver to the PC using a USB cable (not
supplied).
Your PC automatically recognizes this connection, and shows
the following screen on the monitor.
USB AUDIO VIDEO
S-VIDEO
VIDEO L—AUDIO—R
USB cable
4. Install the USB drivers following the instructions on the PC's
monitor.
11
5. Check if the drivers are correctly installed.
1. Open the Control Panel on your PC: Select [Start] =
2. Click [System] = [Device Manager] = [Sound, video and
R
2000* and prepare
R R
98, Windows
6. Change the PC audio setting.
1. If you have closed Control Panel, open it again: Select [Start]
2. Click [Multimedia Properties], then select "USB Audio
To play back a CD from CD-ROM drive on PC, click
[Multimedia], [CD Music], then check [Enable digital CD audio for
this CD-ROM device].
PC
Now PC is ready for playback through the USB connection.
After installation is completed, you can use your PC as the playback
source. The PC automatically recognizes the receiver whenever a
USB cable is connected to the PC and the receiver while the receiver
is turned on.
• When not using the PC as the playback source, disconnect the
USB cable.
To play back sounds on the PC, refer to the manuals supplied with
the sound reproduction application installed in the PC.
Notes:
• DO NOT turn off the receiver or disconnect the USB cable while
installing the drivers and for a several seconds each time your PC is
recognizing the receiver.
• Use a full speed USB cable (revision 1.0).
• If your PC does not recognize the receiver, disconnect the USB
cable and connect it again. If this does not work, restart Windows.
• The drivers installed can be recognized only when the USB cable is
connected between the receiver and your PC.
• The sound may not be played back correctly — interrupted or
degraded — due to your PC settings and PC specifications.
* Microsoft
registered trademarks of Microsoft corporation.
[Settings] = [Control Panel]
game controllers] and [Universal Serial Bus controllers]
The following window appears, and you can check whether
the drivers are installed.
Note:
The items shown on the PC's monitor differs
depending on your PC settings.
= [Setting] = [Control Panel]
Device [1]" for "Playback" of "Audio," and close the window.
R R R
, Windows 98, Windows
R
Me and Windows 2000 are
