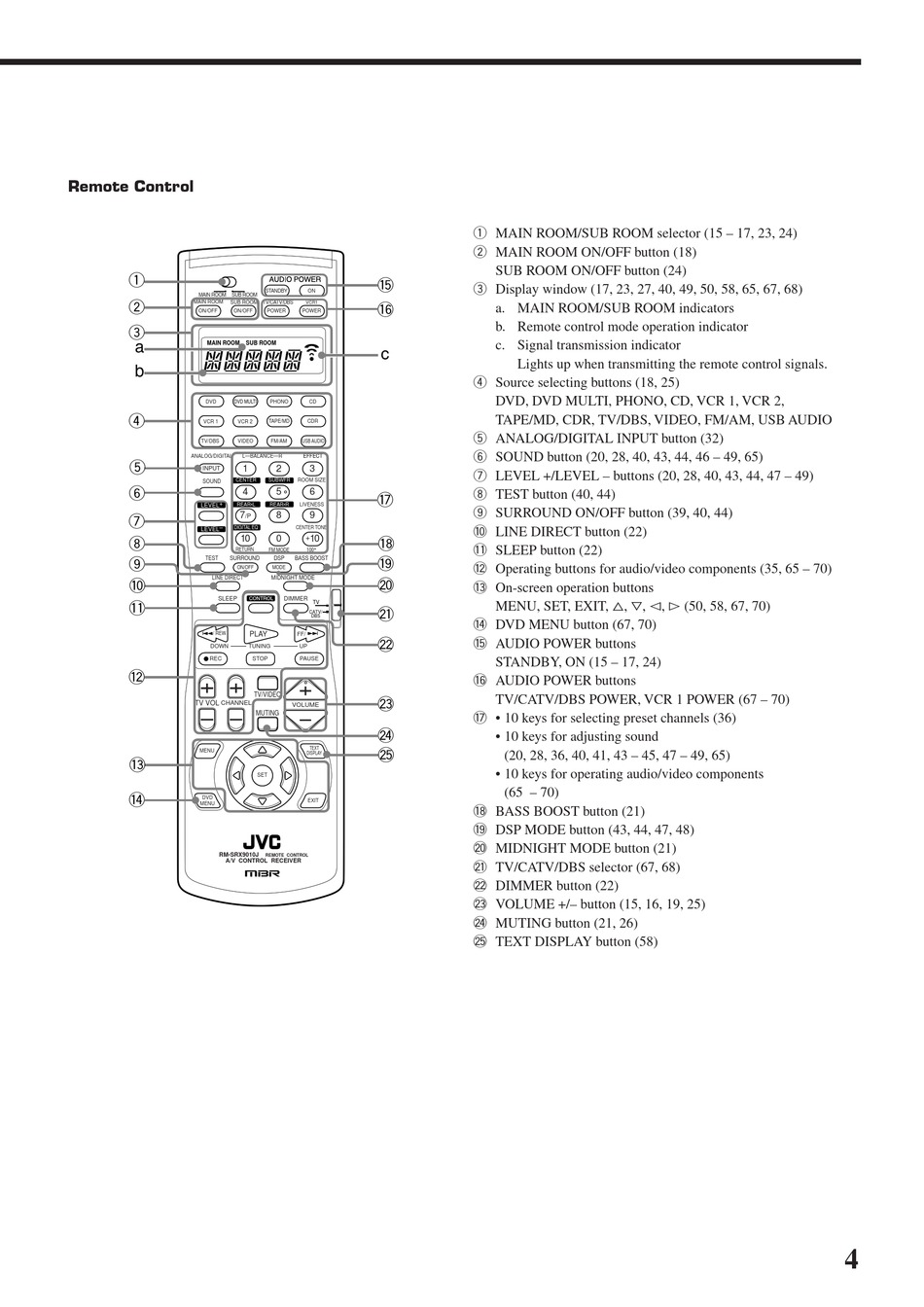

Remote Control
1
MAIN ROOM SUB ROOM
2
MAIN ROOM
SUB ROOM
ON/OFF ON/OFF
3
a MAIN ROOM
b
DVD DVD MULTI
4
VCR 1 VCR 2
TV/DBS VIDEO
ANALOG/DIGITAL L—BALANCE—R
5
1
INPUT
CENTER
SOUND
6
4
LEVEL +
REAR•L
7
7
LEVEL –
DIGITAL EQ
10
8
RETURN
9 TEST SURROUND
ON/OFF
LINE DIRECT
0
SLEEP
-
/ REW
DOWN
REC
=
CHANNEL
TV VOL
MENU
~
!
DVD
MENU
RM-SRX9010J
A/V CONTROL RECEIVER
@
STANDBY ON
TV/CATV/DBS VCR1
#
POWER POWER
SUB ROOM
c
PHONO CD
TAPE/MD CDR
USB AUDIO
FM/AM
EFFECT
2 3
SUBWFR ROOM SIZE
5 6
$
REAR•R LIVENESS
8 9
/P
CENTER TONE
0 + 10
%
100 +
FM MODE
^
DSP BASS BOOST
MODE
MIDNIGHT MODE
&
DIMMER
TV
*
CATV/
DBS
PLAY
FF/
(
TUNING UP
STOP PAUSE
TV/VIDEO
)
VOLUME
MUTING
_
TEXT +
DISPLAY
SET
EXIT
REMOTE CONTROL
1 MAIN ROOM/SUB ROOM selector (15 – 17, 23, 24)
2 MAIN ROOM ON/OFF button (18)
SUB ROOM ON/OFF button (24)
3 Display window (17, 23, 27, 40, 49, 50, 58, 65, 67, 68)
a. MAIN ROOM/SUB ROOM indicators
b. Remote control mode operation indicator
c. Signal transmission indicator
Lights up when transmitting the remote control signals.
4 Source selecting buttons (18, 25)
DVD, DVD MULTI, PHONO, CD, VCR 1, VCR 2,
TAPE/MD, CDR, TV/DBS, VIDEO, FM/AM, USB AUDIO
5 ANALOG/DIGITAL INPUT button (32)
6 SOUND button (20, 28, 40, 43, 44, 46 – 49, 65)
7 LEVEL +/LEVEL – buttons (20, 28, 40, 43, 44, 47 – 49)
8 TEST button (40, 44)
9 SURROUND ON/OFF button (39, 40, 44)
0 LINE DIRECT button (22)
- SLEEP button (22)
= Operating buttons for audio/video components (35, 65 – 70)
~ On-screen operation buttons
MENU, SET, EXIT, %, fi, @, # (50, 58, 67, 70)
! DVD MENU button (67, 70)
@ AUDIO POWER buttons
STANDBY, ON (15 – 17, 24)
# AUDIO POWER buttons
TV/CATV/DBS POWER, VCR 1 POWER (67 – 70)
$ • 10 keys for selecting preset channels (36)
• 10 keys for adjusting sound
(20, 28, 36, 40, 41, 43 – 45, 47 – 49, 65)
• 10 keys for operating audio/video components
(65 – 70)
% BASS BOOST button (21)
^ DSP MODE button (43, 44, 47, 48)
& MIDNIGHT MODE button (21)
* TV/CATV/DBS selector (67, 68)
( DIMMER button (22)
) VOLUME +/– button (15, 16, 19, 25)
_ MUTING button (21, 26)
+ TEXT DISPLAY button (58)
