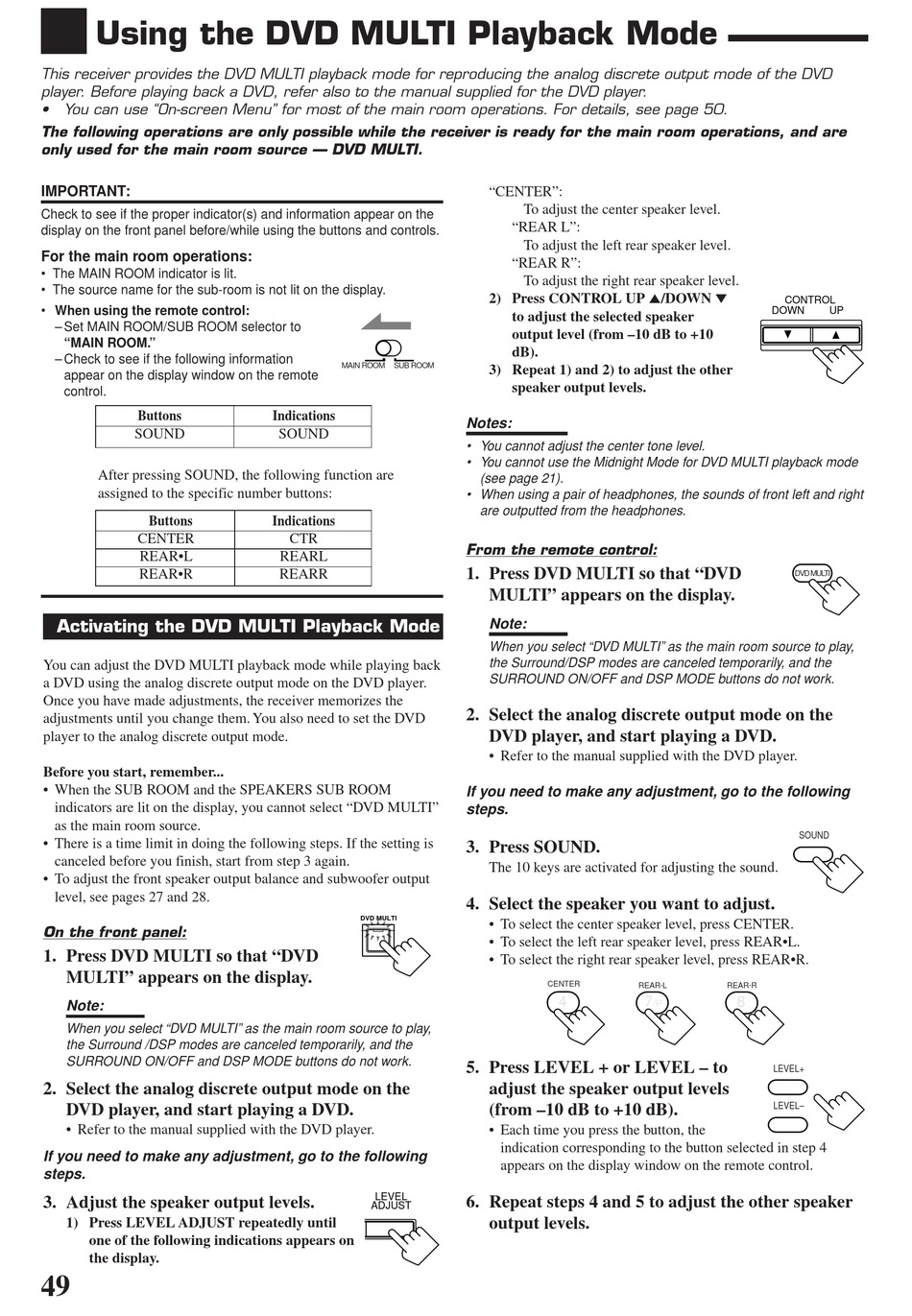

Using the DVD MULTI Playback Mode

This receiver provides the DVD MULTI playback mode for reproducing the analog discrete output mode of the DVD
player. Before playing back a DVD, refer also to the manual supplied for the DVD player.
• You can use "On-screen Menu" for most of the main room operations. For details, see page 50.
The following operations are only possible while the receiver is ready for the main room operations, and are
only used for the main room source — DVD MULTI.
IMPORTANT:
Check to see if the proper indicator(s) and information appear on the
display on the front panel before/while using the buttons and controls.
For the main room operations:
• The MAIN ROOM indicator is lit.
• The source name for the sub-room is not lit on the display.
• When using the remote control:
– Set MAIN ROOM/SUB ROOM selector to
"MAIN ROOM."
– Check to see if the following information
appear on the display window on the remote
control.
Buttons
SOUND
After pressing SOUND, the following function are
assigned to the specific number buttons:
Buttons
CENTER
REAR•L
REAR•R

Activating the DVD MULTI Playback Mode

You can adjust the DVD MULTI playback mode while playing back
a DVD using the analog discrete output mode on the DVD player.
Once you have made adjustments, the receiver memorizes the
adjustments until you change them. You also need to set the DVD
player to the analog discrete output mode.
Before you start, remember...
• When the SUB ROOM and the SPEAKERS SUB ROOM
indicators are lit on the display, you cannot select "DVD MULTI"
as the main room source.
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 3 again.
• To adjust the front speaker output balance and subwoofer output
level, see pages 27 and 28.
On the front panel:
1. Press DVD MULTI so that "DVD
MULTI" appears on the display.
Note:
When you select "DVD MULTI" as the main room source to play,
the Surround /DSP modes are canceled temporarily, and the
SURROUND ON/OFF and DSP MODE buttons do not work.
2. Select the analog discrete output mode on the
DVD player, and start playing a DVD.
• Refer to the manual supplied with the DVD player.
If you need to make any adjustment, go to the following
steps.
3. Adjust the speaker output levels.
1) Press LEVEL ADJUST repeatedly until
one of the following indications appears on
the display.
49
MAIN ROOM SUB ROOM
Indications
SOUND
Indications
CTR
REARL
REARR
DVD MULTI
LEVEL
ADJUST
"CENTER":
To adjust the center speaker level.
"REAR L":
To adjust the left rear speaker level.
"REAR R":
To adjust the right rear speaker level.
2) Press CONTROL UP 5/DOWN ∞
to adjust the selected speaker
output level (from –10 dB to +10
dB).
3) Repeat 1) and 2) to adjust the other
speaker output levels.
Notes:
• You cannot adjust the center tone level.
• You cannot use the Midnight Mode for DVD MULTI playback mode
(see page 21).
• When using a pair of headphones, the sounds of front left and right
are outputted from the headphones.
From the remote control:
1. Press DVD MULTI so that "DVD
MULTI" appears on the display.
Note:
When you select "DVD MULTI" as the main room source to play,
the Surround/DSP modes are canceled temporarily, and the
SURROUND ON/OFF and DSP MODE buttons do not work.
2. Select the analog discrete output mode on the
DVD player, and start playing a DVD.
• Refer to the manual supplied with the DVD player.
If you need to make any adjustment, go to the following
steps.
3. Press SOUND.
The 10 keys are activated for adjusting the sound.
4. Select the speaker you want to adjust.
• To select the center speaker level, press CENTER.
• To select the left rear speaker level, press REAR•L.
• To select the right rear speaker level, press REAR•R.
CENTER
4
5. Press LEVEL + or LEVEL – to
adjust the speaker output levels
(from –10 dB to +10 dB).
• Each time you press the button, the
indication corresponding to the button selected in step 4
appears on the display window on the remote control.
6. Repeat steps 4 and 5 to adjust the other speaker
output levels.
CONTROL
DOWN
DVD MULTI
SOUND
REAR·L REAR·R
7 8
/P
LEVEL+
LEVEL–
UP
