Disassembly Method - JVC RX-7030VBK Service Manual

Audio/video control receiver

Hide thumbs Also See for RX-7030VBK:

Instructions manual (114 pages)

Instructions manual (58 pages)

Instructions for use manual (109 pages)

Table of Contents

2.1

Removing the top cover

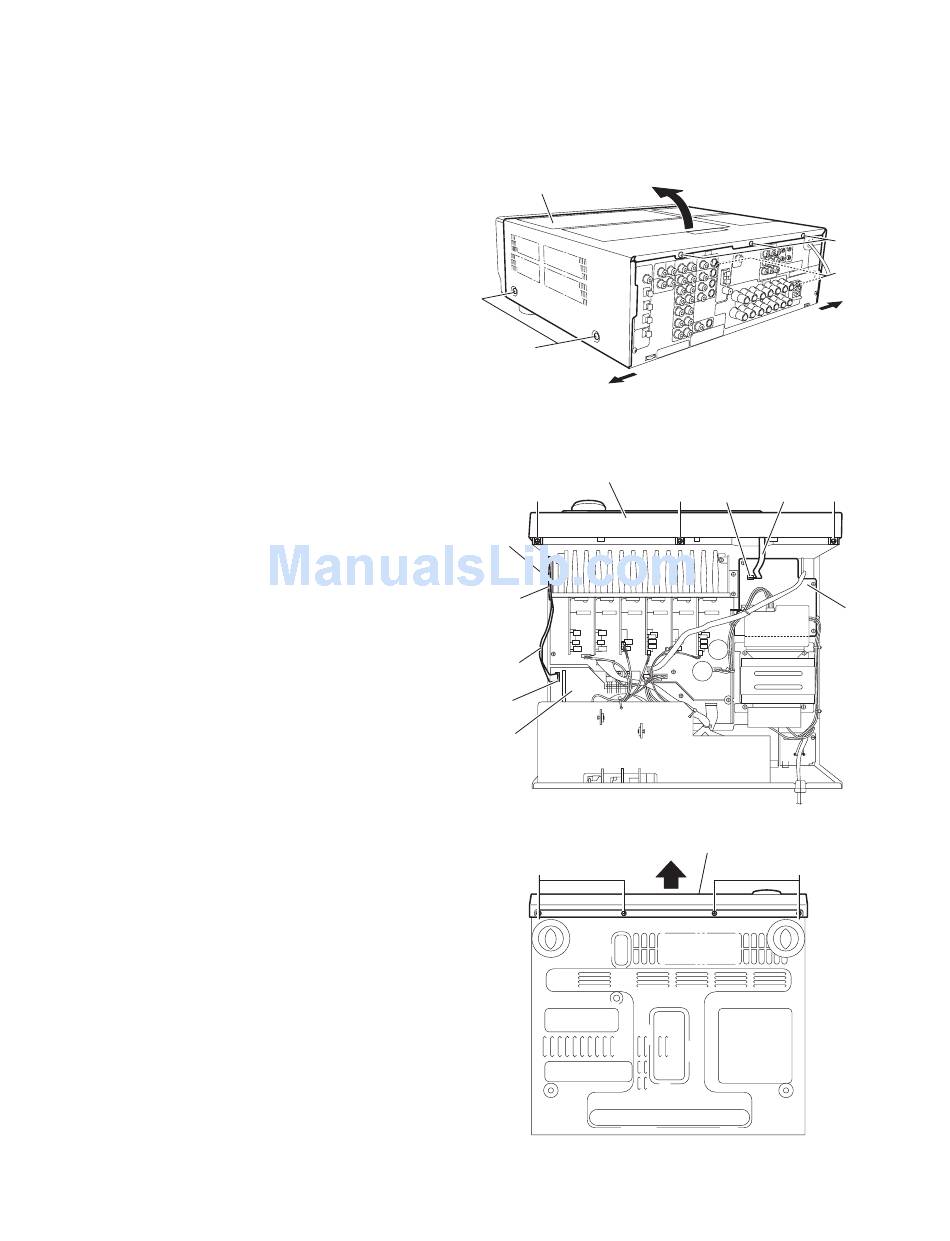

(See Fig.1)

(1) From the right and left sides of the main body, remove the

four screws A attaching the top cover.

(2) From the back side of the main body, remove the three

screws B attaching the top cover.

(3) Remove the top cover in the direction of the arrow 2 while

extending the lower sections of the top cover in the direc-

tion of the arrow 1.

2.2

Removing the front panel assembly

(See Figs.2 and 3)

• Prior to performing the following procedures, remove the top

cover.

(1) Disconnect the card wire from the connector CN400 on the

micon board. (See Fig.2.)

(2) Disconnect the card wire from the connector CN402 on the

power supply board. (See Fig.2.)

(3) Remove the tie band and wire protection board fixing the

card wire. (See Fig.2.)

(4) Remove the three screws C attaching the front panel as-

sembly. (See Fig.2.)

(5) From the bottom side of the main body, remove the four

screws D attaching the front panel assembly. (See Fig.3.)

(6) Remove the front panel assembly in the direction of the ar-

row. (See Fig.3.)
