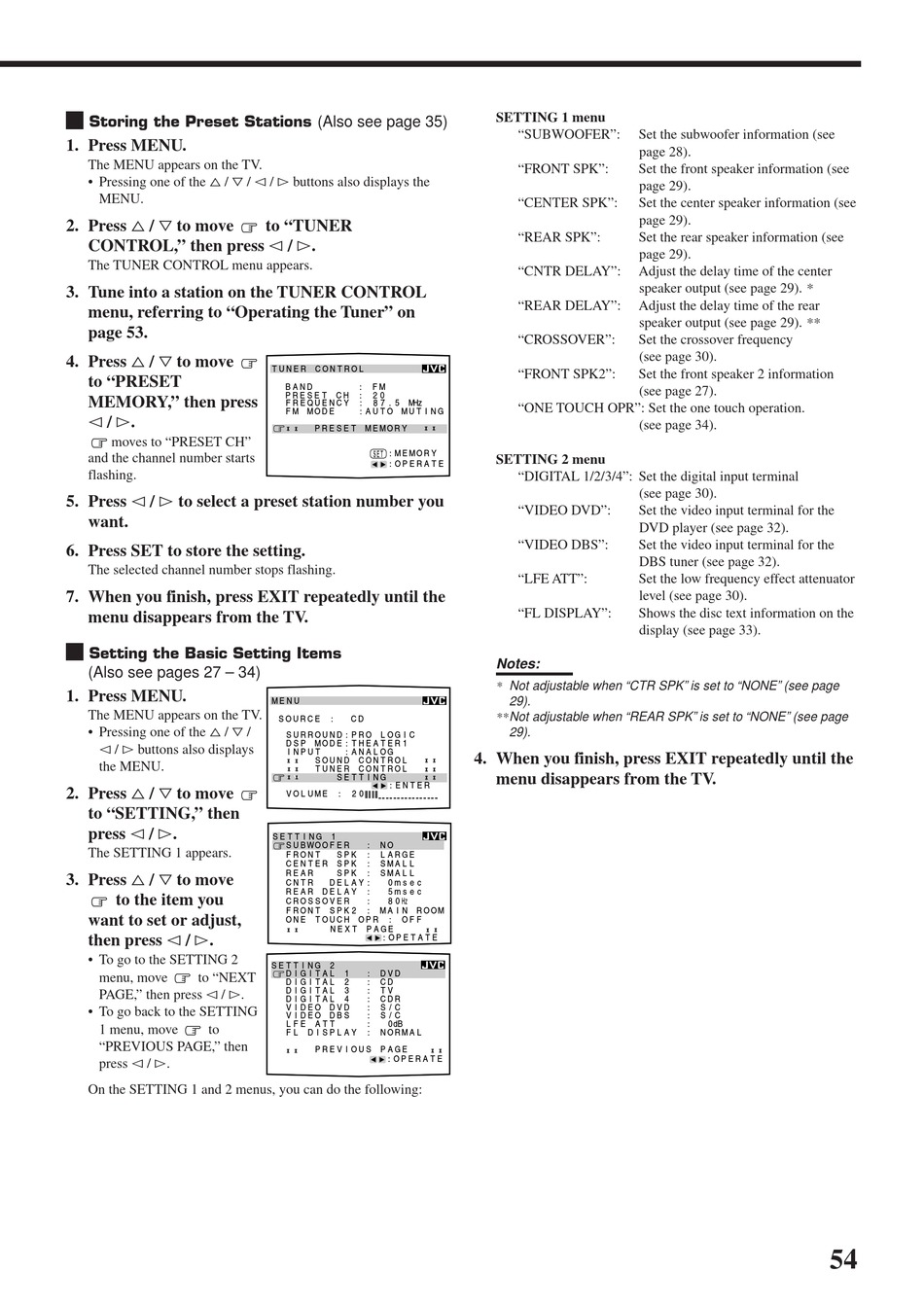

Storing the Preset Stations (Also see page 35)
1. Press MENU.
The MENU appears on the TV.
• Pressing one of the % / fi / @ / # buttons also displays the
MENU.
2. Press % / fi to move
CONTROL," then press @ / #.
The TUNER CONTROL menu appears.
3. Tune into a station on the TUNER CONTROL
menu, referring to "Operating the Tuner" on
page 53.
4. Press % / fi to move
to "PRESET
MEMORY," then press
@ / #.
moves to "PRESET CH"
and the channel number starts
flashing.
5. Press @ / # to select a preset station number you
want.
6. Press SET to store the setting.
The selected channel number stops flashing.
7. When you finish, press EXIT repeatedly until the
menu disappears from the TV.

Setting the Basic Setting Items

(Also see pages 27 – 34)
1. Press MENU.
The MENU appears on the TV.
• Pressing one of the % / fi /
@ / # buttons also displays
the MENU.
2. Press % / fi to move
to "SETTING," then
press @ / #.
The SETTING 1 appears.
3. Press % / fi to move
to the item you
want to set or adjust,
then press @ / #.
• To go to the SETTING 2
menu, move to "NEXT
PAGE," then press @ / #.
• To go back to the SETTING
1 menu, move to
"PREVIOUS PAGE," then
press @ / #.
On the SETTING 1 and 2 menus, you can do the following:
to "TUNER
TUNER CONTROL
BAND : FM
PRESET CH : 20
FREQUENCY : 87.5 M H z
FM MODE :AUTO MUTING
PRESET MEMORY
:MEMORY
:OPERATE
MENU
SOURCE : CD
SURROUND:PRO LOGIC
DSP MODE:THEATER1
INPUT :ANALOG
SOUND CONTROL
TUNER CONTROL
SETTING
:ENTER
VOLUME : 20
SETTING 1
SUBWOOFER : NO
FRONT SPK : LARGE
CENTER SPK : SMALL
REAR SPK : SMALL
CNTR DELAY: 0msec
REAR DELAY : 5msec
CROSSOVER : 80Hz
FRONT SPK2 : MAIN ROOM
ONE TOUCH OPR : OFF
NEXT PAGE
:OPETATE
SETTING 2
DIGITAL 1 : DVD
DIGITAL 2 : CD
DIGITAL 3 : TV
DIGITAL 4 : CDR
VIDEO DVD : S/C
VIDEO DBS : S/C
LFE ATT : 0 d B
FL DISPLAY : NORMAL
PREVIOUS PAGE
:OPERATE
SETTING 1 menu
"SUBWOOFER": Set the subwoofer information (see
page 28).
"FRONT SPK": Set the front speaker information (see
page 29).
"CENTER SPK": Set the center speaker information (see
page 29).
"REAR SPK": Set the rear speaker information (see
page 29).
"CNTR DELAY": Adjust the delay time of the center
speaker output (see page 29). *
"REAR DELAY": Adjust the delay time of the rear
speaker output (see page 29). **
"CROSSOVER": Set the crossover frequency
(see page 30).
"FRONT SPK2": Set the front speaker 2 information
(see page 27).
"ONE TOUCH OPR": Set the one touch operation.
(see page 34).
SETTING 2 menu
"DIGITAL 1/2/3/4": Set the digital input terminal
(see page 30).
"VIDEO DVD": Set the video input terminal for the
DVD player (see page 32).
"VIDEO DBS": Set the video input terminal for the
DBS tuner (see page 32).
"LFE ATT": Set the low frequency effect attenuator
level (see page 30).
"FL DISPLAY": Shows the disc text information on the
display (see page 33).
Notes:
* Not adjustable when "CTR SPK" is set to "NONE" (see page
29).
** Not adjustable when "REAR SPK" is set to "NONE" (see page
29).
4. When you finish, press EXIT repeatedly until the
menu disappears from the TV.
