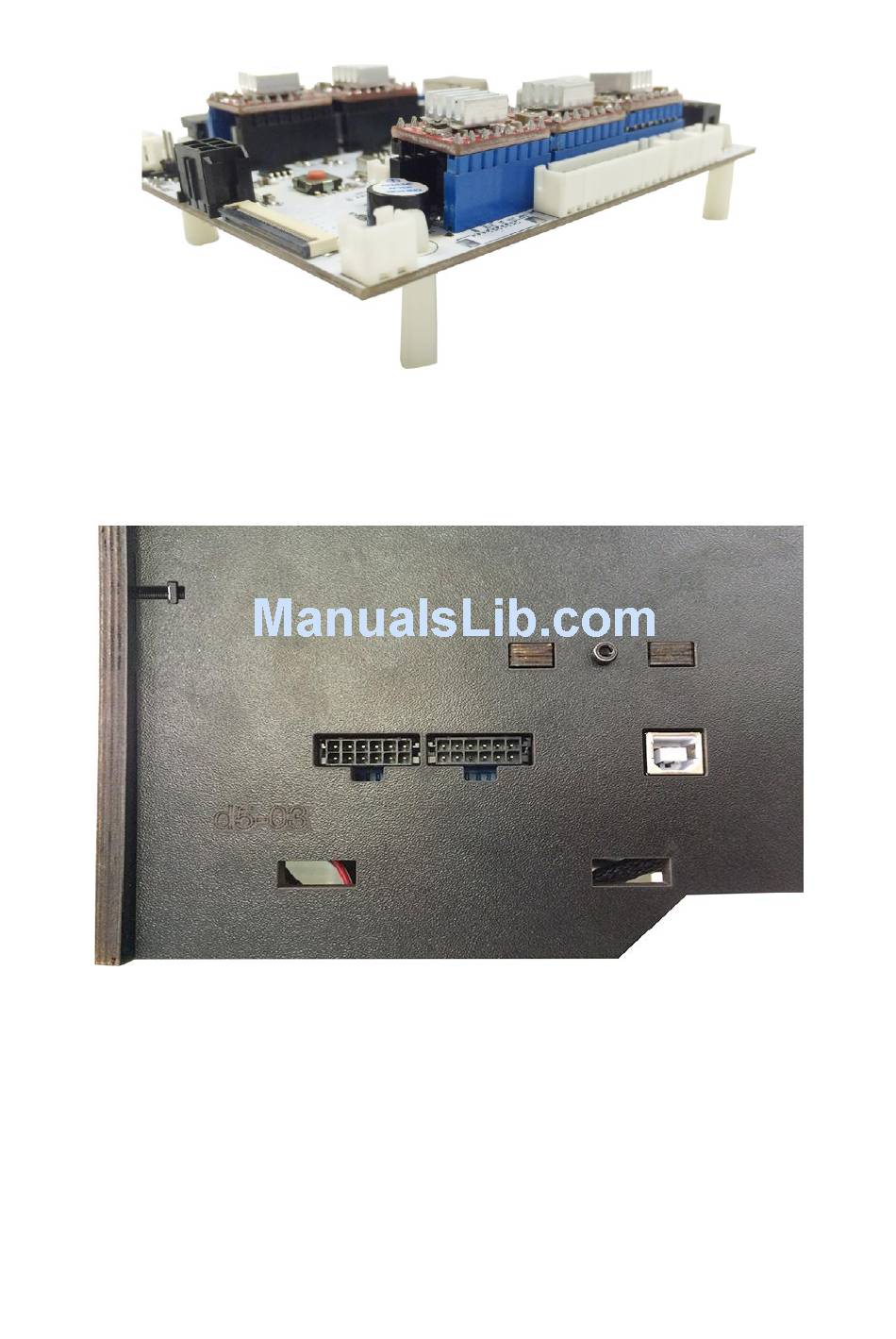

Step 3. Fit the protruding side of the control board into the sinks on the lower left
part of the rear panel. Mount the control board on the bottom of the lower panel with
4xM3*16mm screws and 4xM3 washer.
Step 4. Connect the control board with power supply unit. Please distinguish the
anode wire from the cathode one (red-anode, black-cathode).
65
