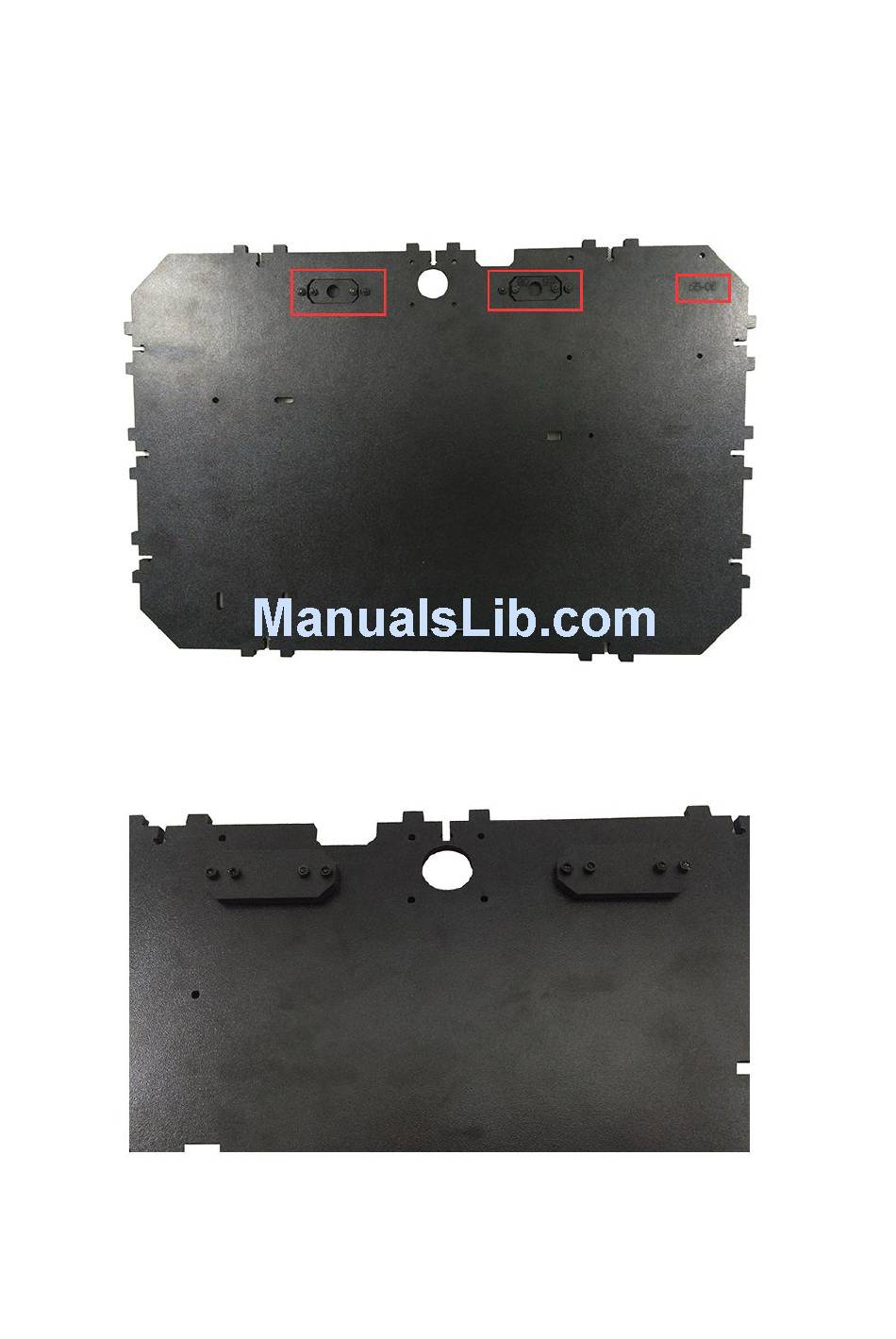

Step 2: Fix the above assembled parts on the bottom of the lower panel with
4xM3*16mm screws and 4xM3 hex nuts.
Note: With the Z axis rod fixed panel (with a hole on it) on top of the Z axis rod
holder.
bottom
up
