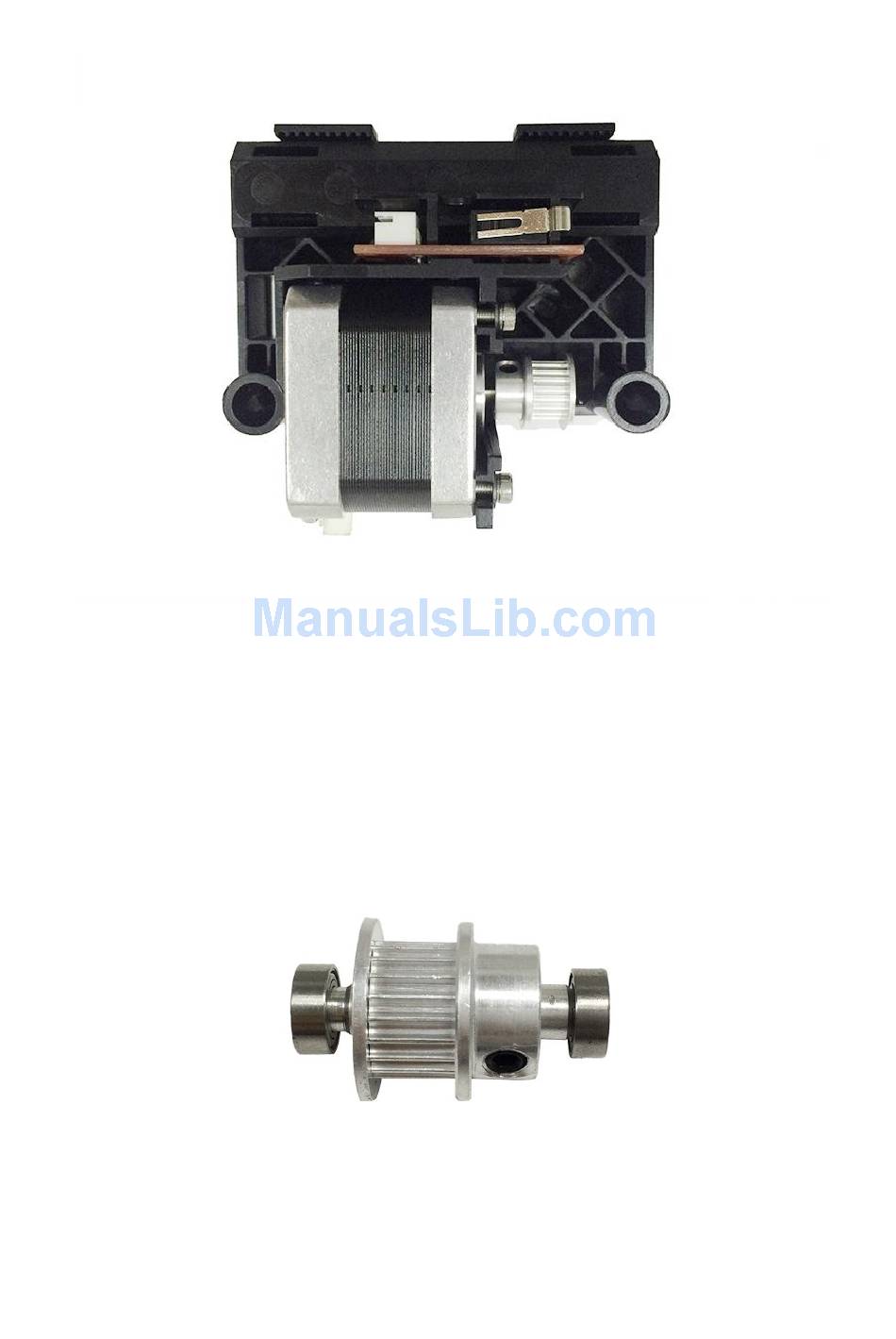

Step 2. Assemble the driven wheel carriage.
a.
Insert 2 linear bearings into the grooves of the driven wheel carriage.
b. Take the driven wheel shaft. First, loosen the set screws in the pulley and
thread the driven wheel shaft through the pulley. Subsequently, attach one ball
bearing on each side of the shaft.
c.
Insert the assembled pulley into the driven wheel carriage from the back.
33
