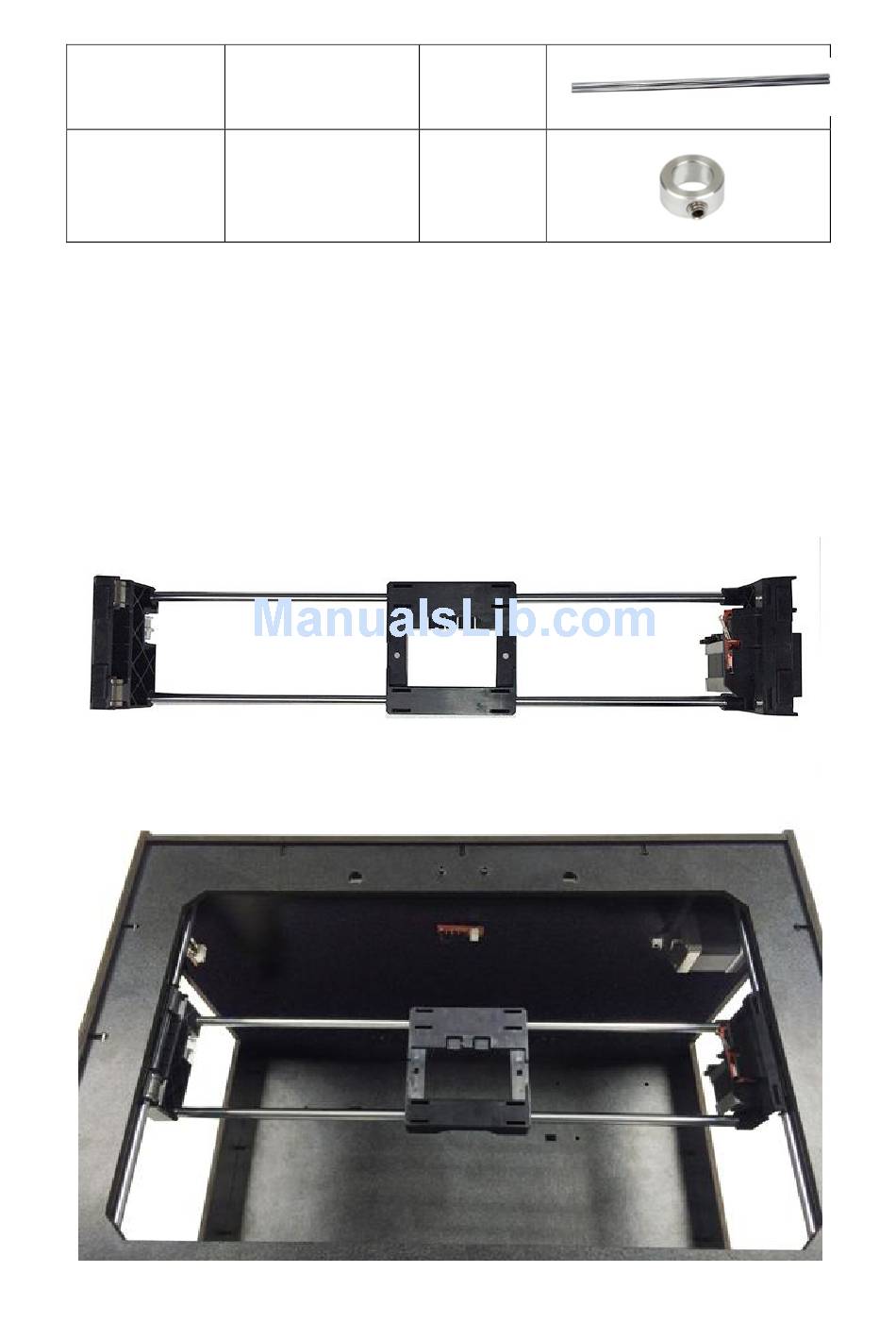

Y axis rod
Locking ring
Insert the Y axis rods orderly through the holes on the rear panel, 2 locking rings
(one for each rod), the linear bearings on X axis driving wheel carriage and driven
wheel carriage, until they reach the Y axis rod fixed panel on the front panel. Fasten
the locking rings.
Connect the Y Axis left rod with the driven wheel carriage.
Connect the Y Axis right rod with the driving wheel carriage;
2
NO. 1
2
NO. 6
42
