Hex nut
M3 Washer
Motor gasket
Pulley
Fan
Step 1. Take the right side panel and Insert 2 ball bearings into the corresponding
holes on the top of the panel.

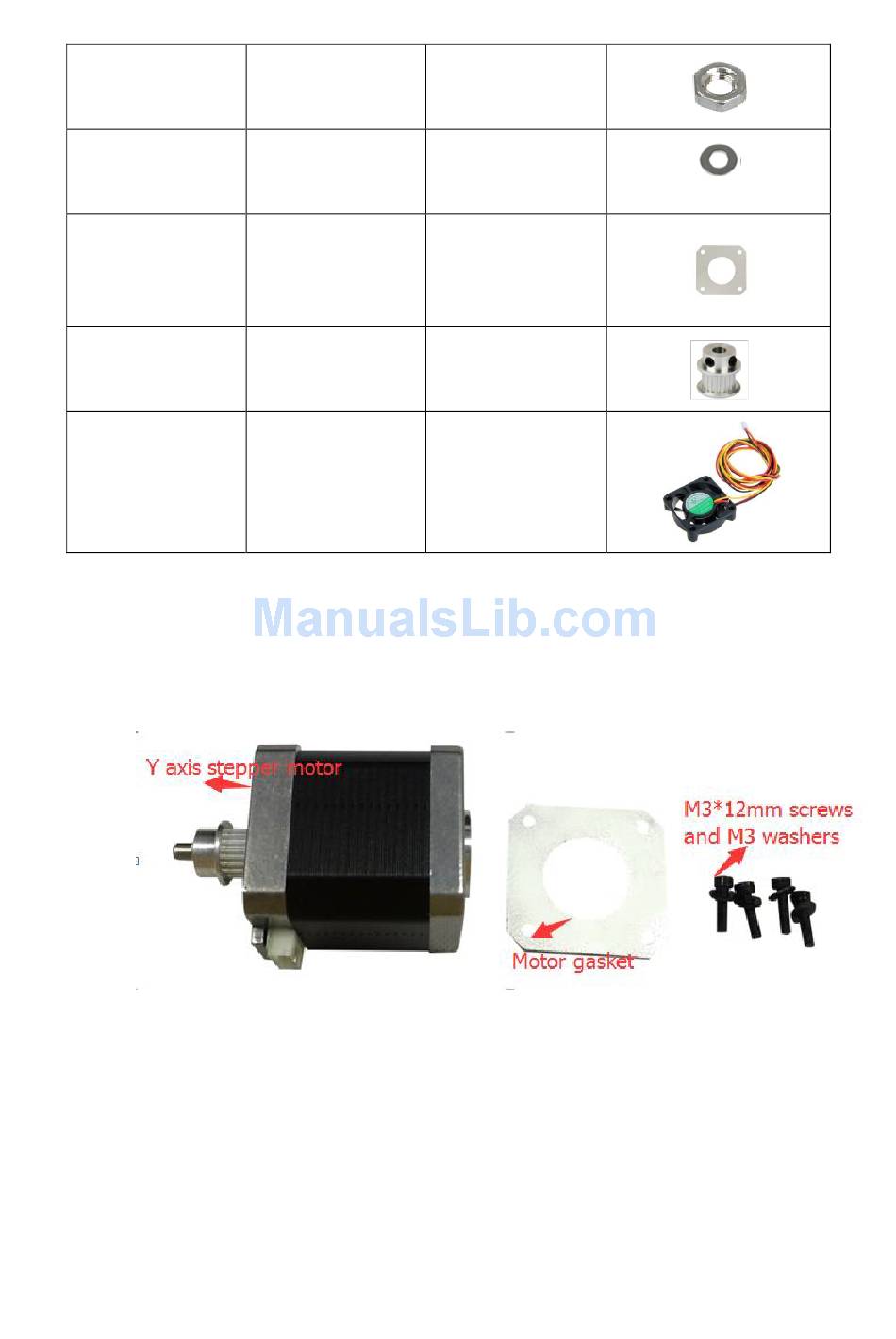

Step 2. Attach the Y axis stepper motor to the inside of the panel with
4xM3*12mm screws, 4x M3 washers and the motor gasket.
8
NO. 11
12
NO. 5
1
NO. 38
1
NO. 31
2
NO. 53
11
