Step 4. Connect the X axis.

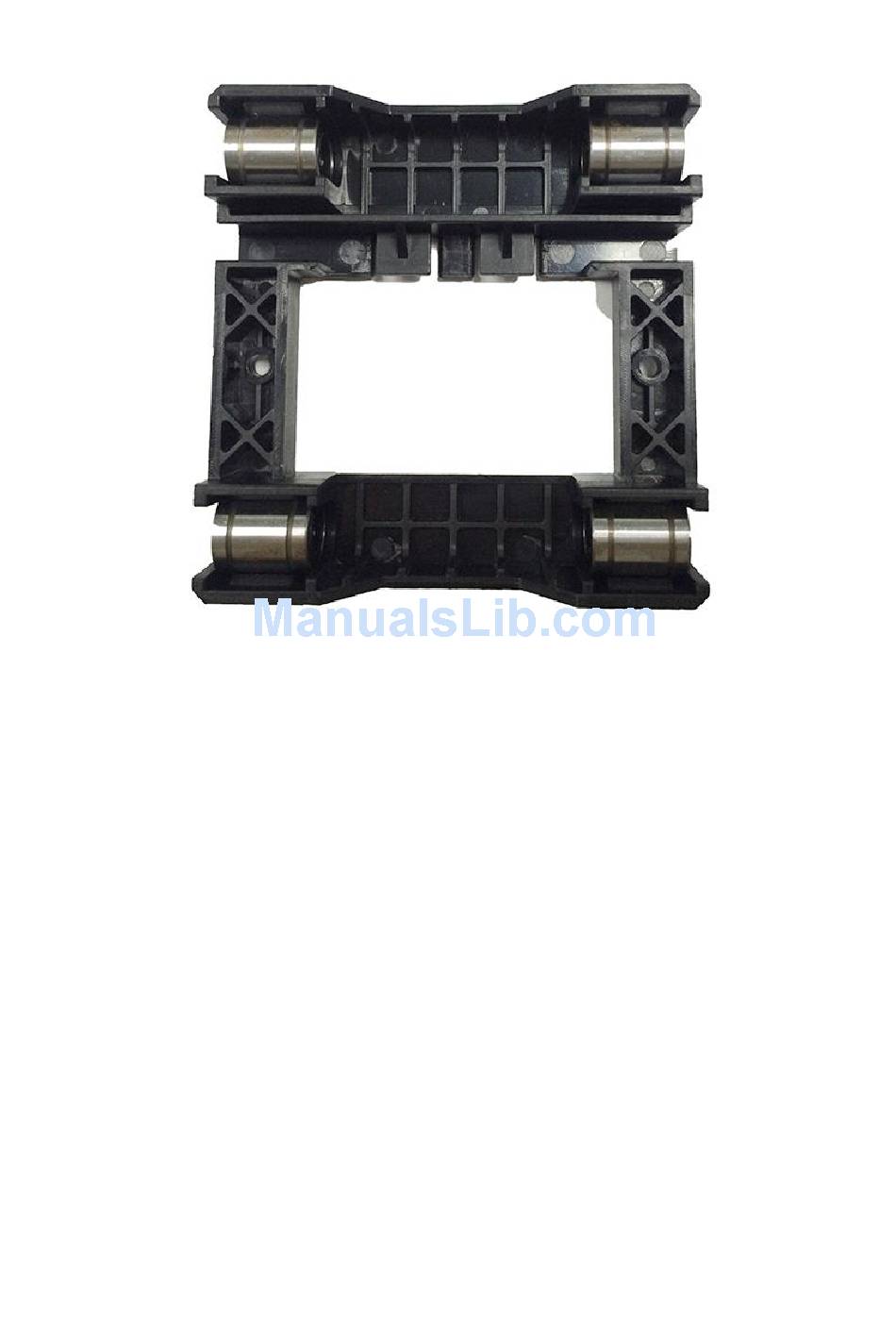

First, fit the two X axis rods through the linear bearings on the extruder carriage.
Then insert one end of the two X axis rods into the corresponding holes of the
driven wheel carriage.
Finally, insert the other end of the two rods into the holes of the driving wheel
carriage.
Note:
1. Note the direction of the 3 carriages, the belt grooves on the extruder carriage
must be aligned with the pulleys on the driving wheel and the driven wheel
carriage.
2. If the holes are not perfectly fit, please trim them with a file.
3. It is suggested that you use soft headed hammer to hit the two ends of the rods,
making sure that the rods are fully inserted into the holes.
35
