motors. Thread the thermistor wire for the hot bed, the heating wire, the fan wires and
2 extruder motor wires from the bottom up through the carriage for the extension
board. Place the two extension boards on the carriage.

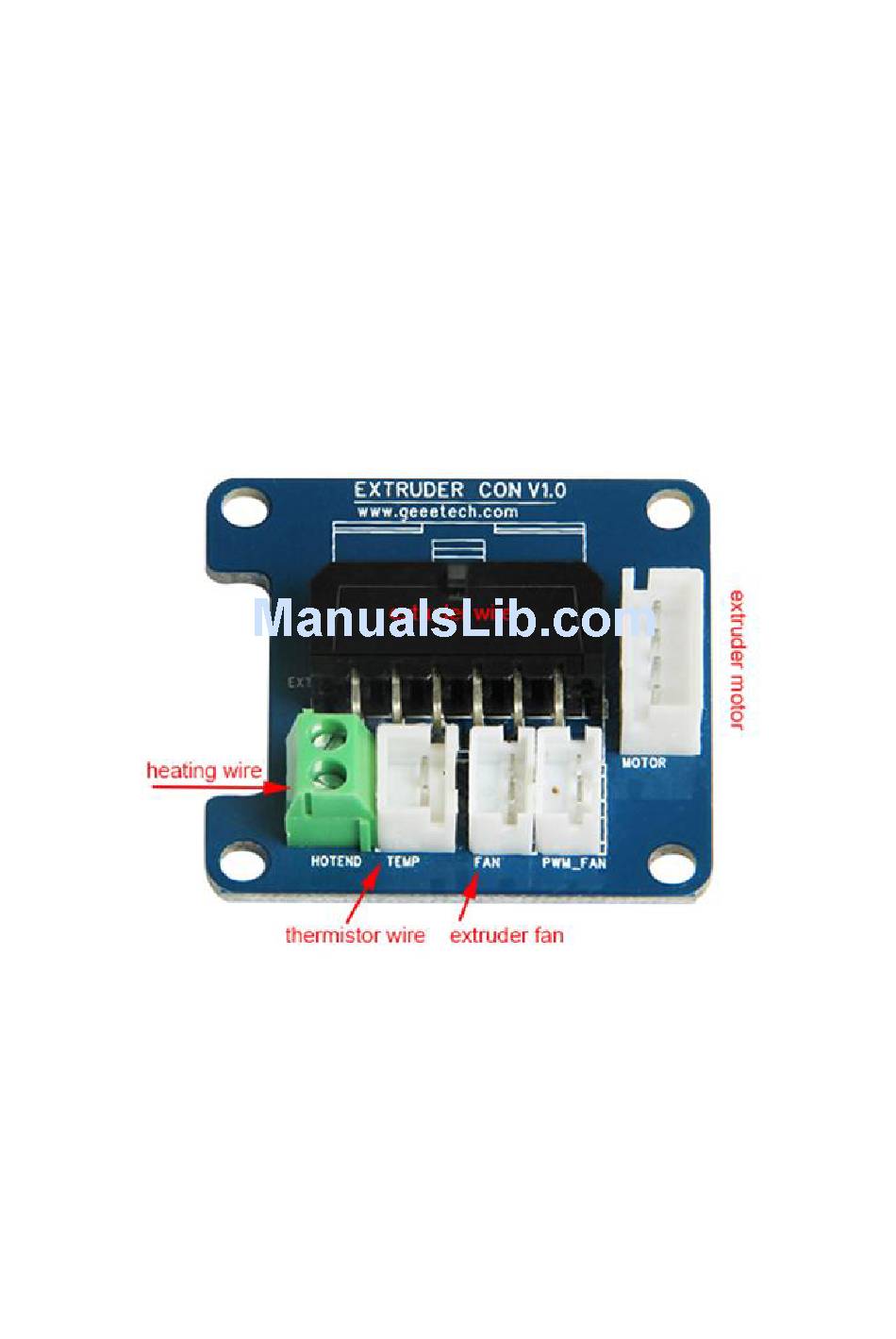

Step 3. Connect the 4-pin port of motor wire with the extension board (the port
labeled with [motor]). Then connect the fan wire with the middle port, the thermistor
wire with the right one and the heating wire with the green one.
Note: Loosen the screws on the green connection port, insert the heating wire
and tighten the screws. Please tailor the heating wire to expose the conductive part.
The same wiring procedures apply to the other extruder.
Step 4. Attach the two extension boards to their carriage with 4 hex copper
spacers. (Each board with 2 hex copper spacers.)
Step 5. Connect the 2 wires (i.e. extruder wire) for the dual extruder and control
board with the extension board. Fix the extension board covers on the board with 4x
M3*6mm screws and 4xM3 washers.
55
