Communications Instructions
397

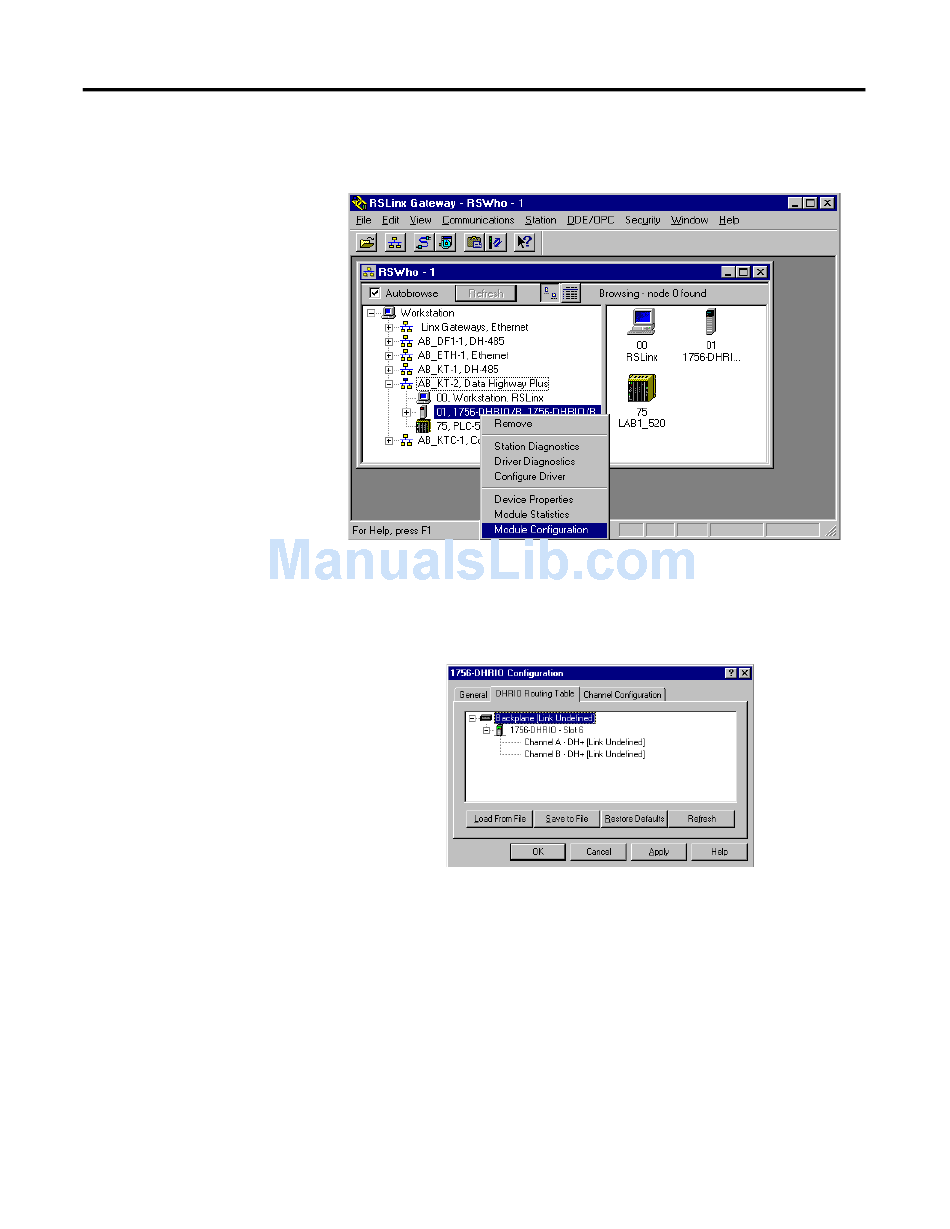

Right Click your mouse on top of the DHRIO module and a drop down
box will open.
Select Module Configuration by clicking with the left mouse button.
Select DHRIO Routing Table tab. If no routing table has been created the
following should appear.
Right click on the Backplane and left click on Edit Module. Make sure that
the Back plane Link ID is set to 20.
Right click on the 1756-DHRIO module and left click on Edit Module.
Make sure that CH A's Link ID is set for 7 and CH B's Link ID is set for 2.
Select OK. Channel B is actually not necessary.
Right click on the Backplane and left click on Add Module. Left click on
1756-ENET.
Enter the correct slot number 2 and Link ID 16 for the ENET module.
Publication 1763-RM001B-EN-P - April 2007
