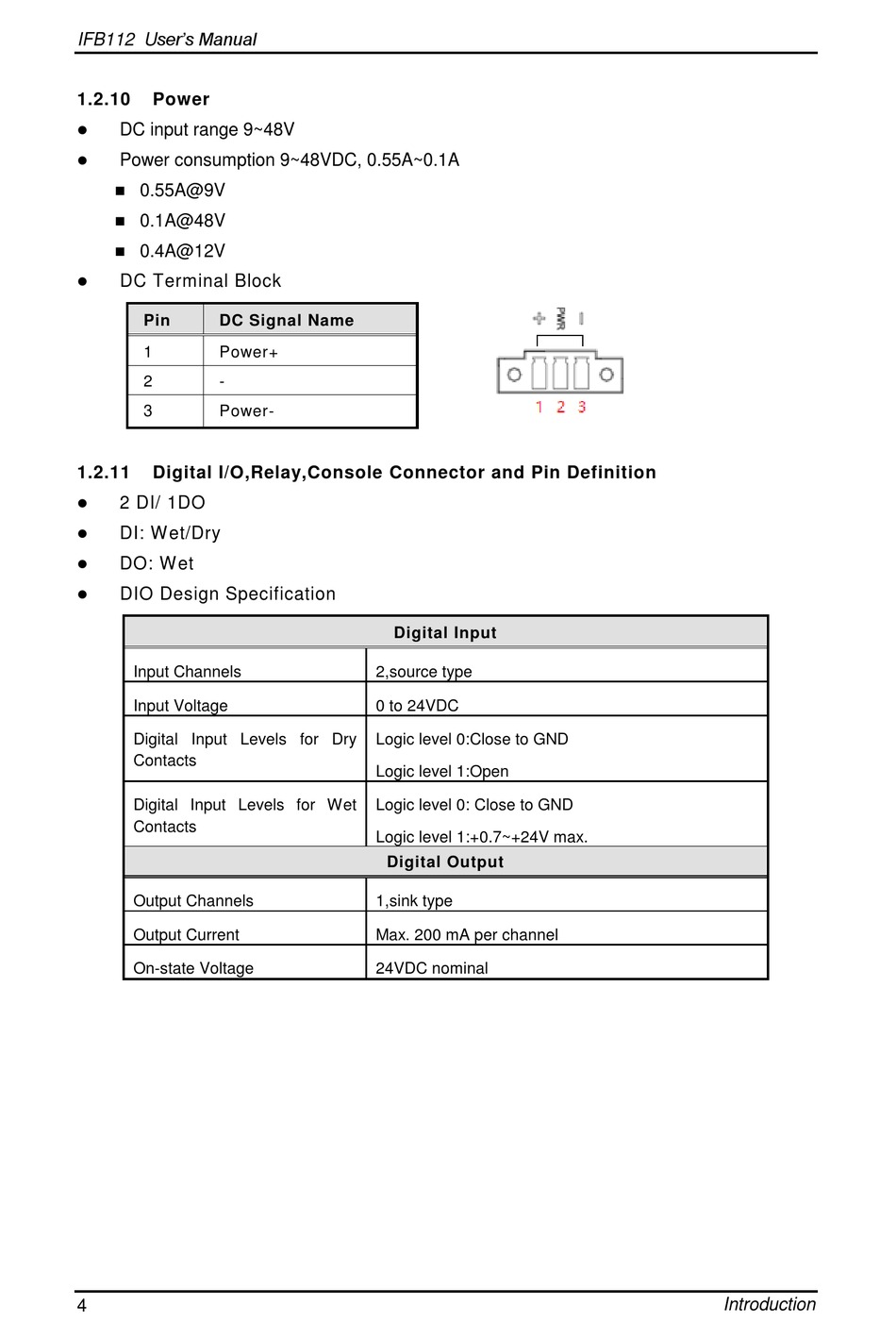

IFB112 User's Manual
1.2.10

Power

DC input range 9~48V
Power consumption 9~48VDC, 0.55A~0.1A
0.55A@9V
0.1A@48V
0.4A@12V
DC Terminal Block
Pin
DC Signal Name
1
Power+
2
-
3
Power-
1.2.11

Digital I/O,Relay,Console Connector and Pin Definition

2 DI/ 1DO
DI: W et/Dry
DO: W et
DIO Design Specification
Input Channels
Input Voltage
Digital Input Levels for Dry
Contacts
Digital Input Levels for Wet
Contacts
Output Channels
Output Current
On-state Voltage
4
Digital Input
2,source type
0 to 24VDC
Logic level 0:Close to GND
Logic level 1:Open
Logic level 0: Close to GND
Logic level 1:+0.7~+24V max.
Digital Output
1,sink type
Max. 200 mA per channel
24VDC nominal
