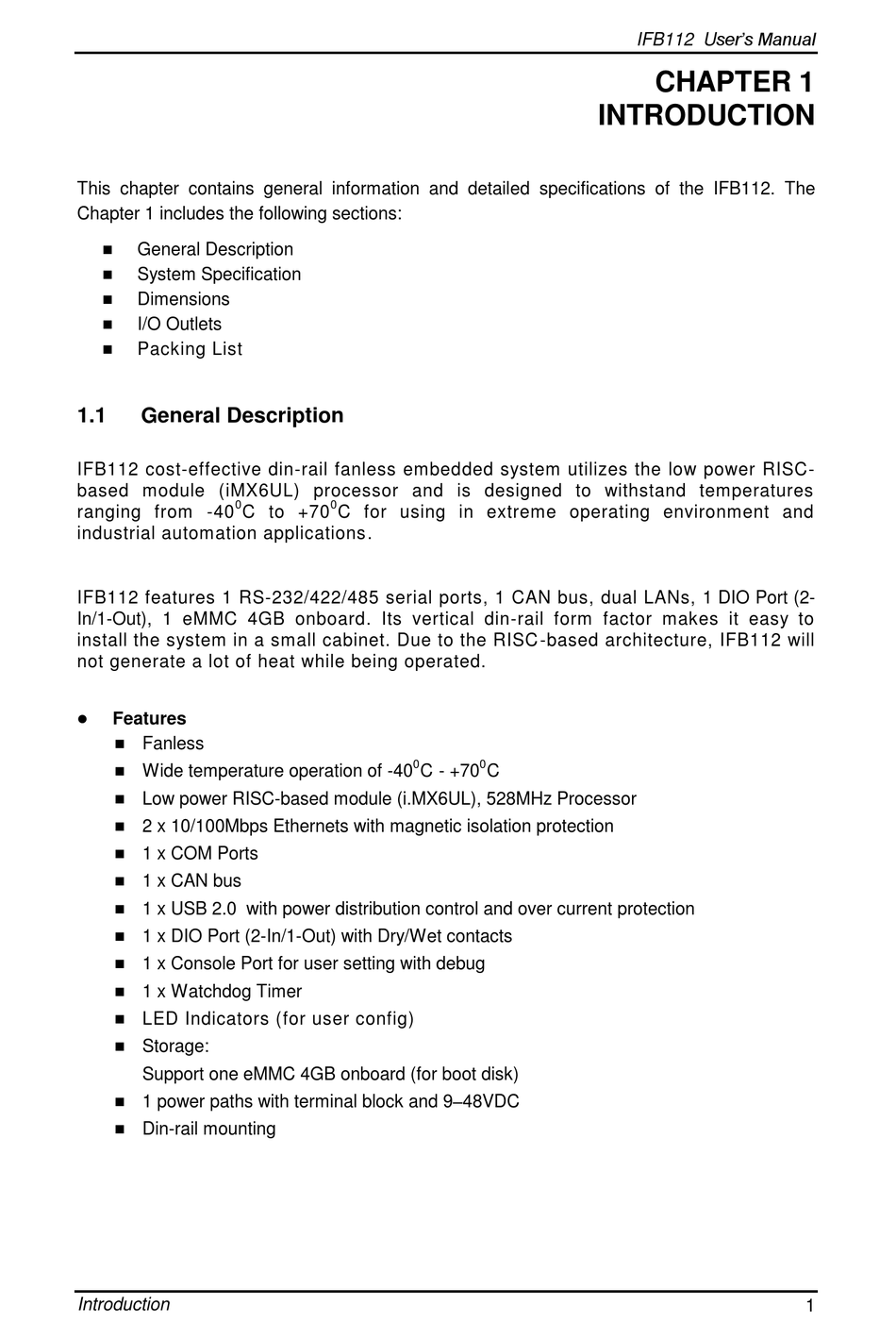

Chapter 1 Introduction; General Description - AXIOMTEK IFB112 Hardware User Manual

This chapter contains general information and detailed specifications of the IFB112. The
Chapter 1 includes the following sections:


General Description

 System Specification
 Dimensions
 I/O Outlets
 Packing List
1.1 General Description
IFB112 cost-effective din-rail fanless embedded system utilizes the low power RISC-
based module (iMX6UL) processor and is designed to withstand temperatures
0
ranging from -40 C to +70
industrial automation applications.
IFB112 features 1 RS-232/422/485 serial ports, 1 CAN bus, dual LANs, 1 DIO Port (2-
In/1-Out), 1 eMMC 4GB onboard. Its vertical din-rail form factor makes it easy to
install the system in a small cabinet. Due to the RISC -based architecture, IFB112 will
not generate a lot of heat while being operated.

Features
 Fanless

Wide temperature operation of -40
 Low power RISC-based module (i.MX6UL), 528MHz Processor
 2 x 10/100Mbps Ethernets with magnetic isolation protection
 1 x COM Ports
 1 x CAN bus
 1 x USB 2.0 with power distribution control and over current protection
 1 x DIO Port (2-In/1-Out) with Dry/Wet contacts
 1 x Console Port for user setting with debug
 1 x Watchdog Timer
 LED Indicators (for user config)
 Storage:
Support one eMMC 4GB onboard (for boot disk)

1 power paths with terminal block and 9–48VDC
 Din-rail mounting
Introduction
0
C for using in extreme operating environment and
0 0
C - +70 C
