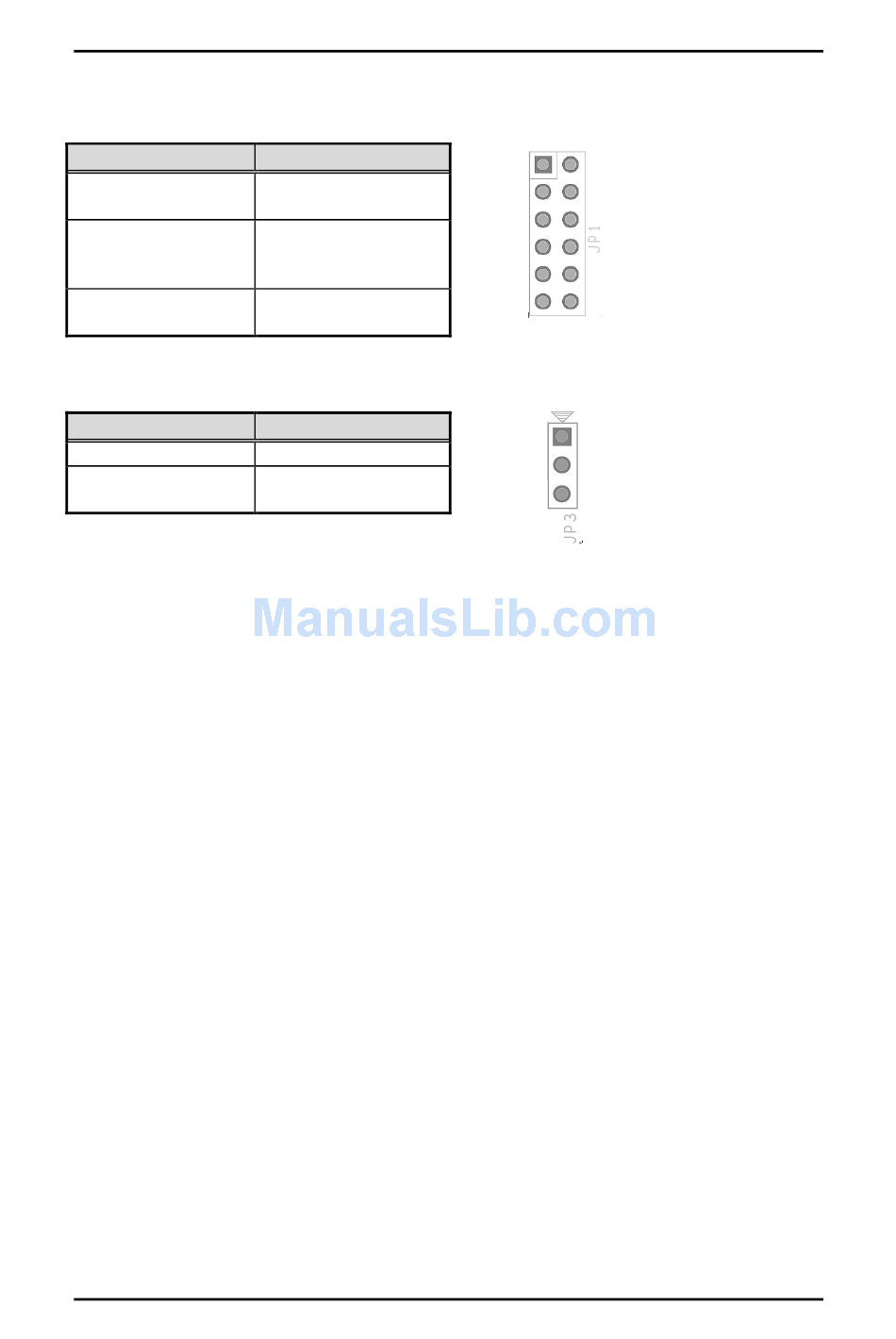

Jumper setting

1.3.1

JP1 setting

Function
Copy image to eMMC
Boot to OS
(IFB122 eMMC)
(Default)
Boot to OS
(IFB122 SD Card)
1.3.2

JP3 setting

Function
OTG Client
OTG Host
(Default)
10
Setting
JP1 1-2 Close
JP2 3-4,5-6 Close
JP2 7-8, 11-12 Close
JP2 3-4, 9-10 Close
Setting
JP3 1-2 Close
JP3 2-3 Close
