IFB112 User's Manual
1.2

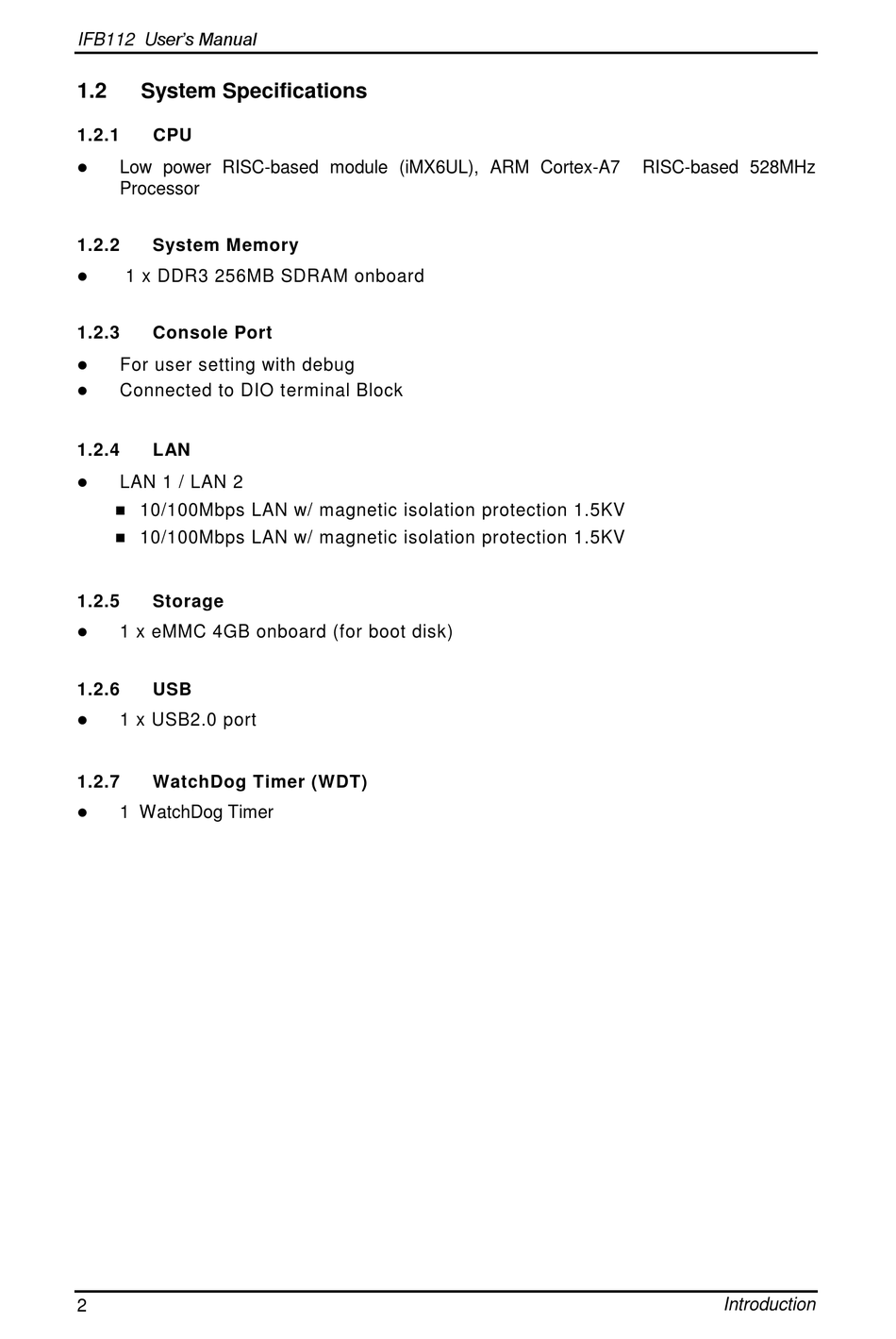

System Specifications

1.2.1

CPU

 Low power RISC-based module (iMX6UL), ARM Cortex-A7
Processor
1.2.2

System Memory

 1 x DDR3 256MB SDRAM onboard
1.2.3

Console Port

 For user setting with debug
 Connected to DIO terminal Block
1.2.4

LAN

 LAN 1 / LAN 2
 10/100Mbps LAN w/ magnetic isolation protection 1.5KV
 10/100Mbps LAN w/ magnetic isolation protection 1.5KV
1.2.5

Storage

 1 x eMMC 4GB onboard (for boot disk)
1.2.6

USB

 1 x USB2.0 port
1.2.7

WatchDog Timer (WDT)

 1 WatchDog Timer
2
RISC-based 528MHz
Introduction
