Application 3 – MediaPort 200 with Hardware and Software Codecs
This is an application for soft codec conferencing in a room that also has a hardware video
codec. Either may be used independently at any time. This application uses the single
microphone input on the MediaPort 200 for both conferencing devices.
MediaPort 200
POWER STANDBY
Camera

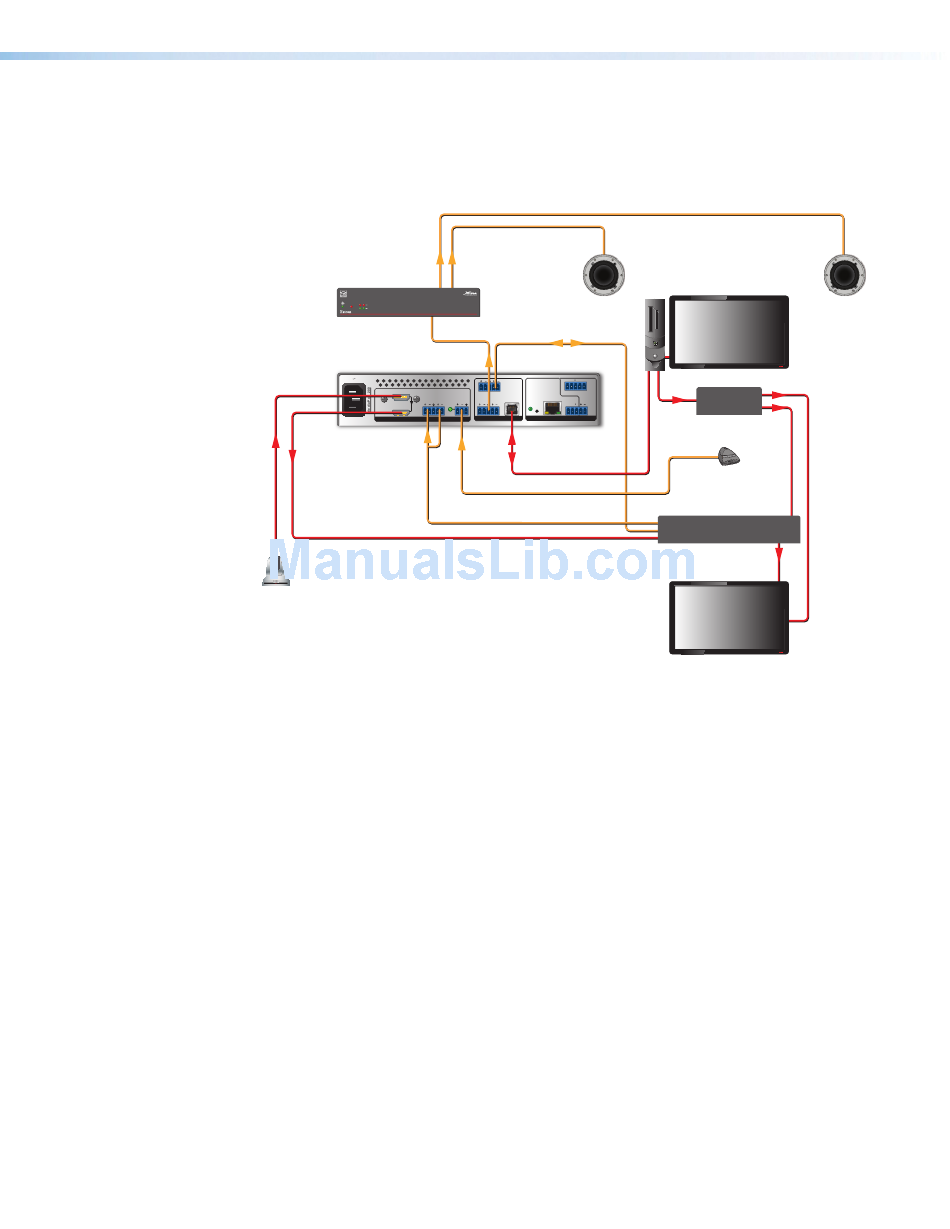

Figure 3.
Connect to and from the MediaPort 200
1. Connect an HDMI source to the MediaPort input. For this example, an HDMI video
camera is used.
2. Connect the HDMI loop out on MediaPort to the camera or content input on the
hardware video codec. If a matrix switcher is being used an output of the switcher, it
may alternatively be connected to the hardware video codec.
3.
Connect the MediaPort Line Output to a sound reinforcement system.
4. Connect a microphone to the Mic Input.
5. Connect a USB cable to the rear USB connector and your PC or Mac computer. Make
sure that the drivers are configured properly.
6. Set the MediaPort 200 to enumerate as a Speakerphone device.
Audio
OVER 1 2
TEMP
LIMITER/PROTECT
SIGNAL
XPA 1002
XPA 1002
100-240V - - A MAX
HDMI
REF AUX
MIC/LINE USB
L LINE R L LINE R
LOOP OUT
+48V
INPUT OUTPUT
50/60 Hz
Application 3 — MediaPort 200 with Hardware and Software Codecs
MediaPort 200 Audio Application Tutorial • Audio Application Setup
'
I1 I2 O 1 O2
I/O
LAN
RS-232 +12V
RESET
Tx Rx
0.1A
MAX
REMOTE
Video/Audio
Table Microphone
Video Codec
PC
HDMI DA
Display
