Connect MediaPort to/from the hardware video codec
1. Connect the Aux Out of the MediaPort to the input of the video codec. This may be the
microphone input of the video codec, although preferably it should be able to receive a
line level signal. Check the user guide of the video codec to find the appropriate input
and settings.
The MediaPort Aux Out sends the microphone signal to the video codec. Doing so
allows the same microphone to be used with the MediaPort only, the video codec only,
or both simultaneously.
2. Connect the line output of the video codec to the MediaPort line input. This will route
the hardware codec audio to the sound reinforcement system in the room, and also
to the far end of the soft codec conference in the case where hardware and software
conferences are bridged.

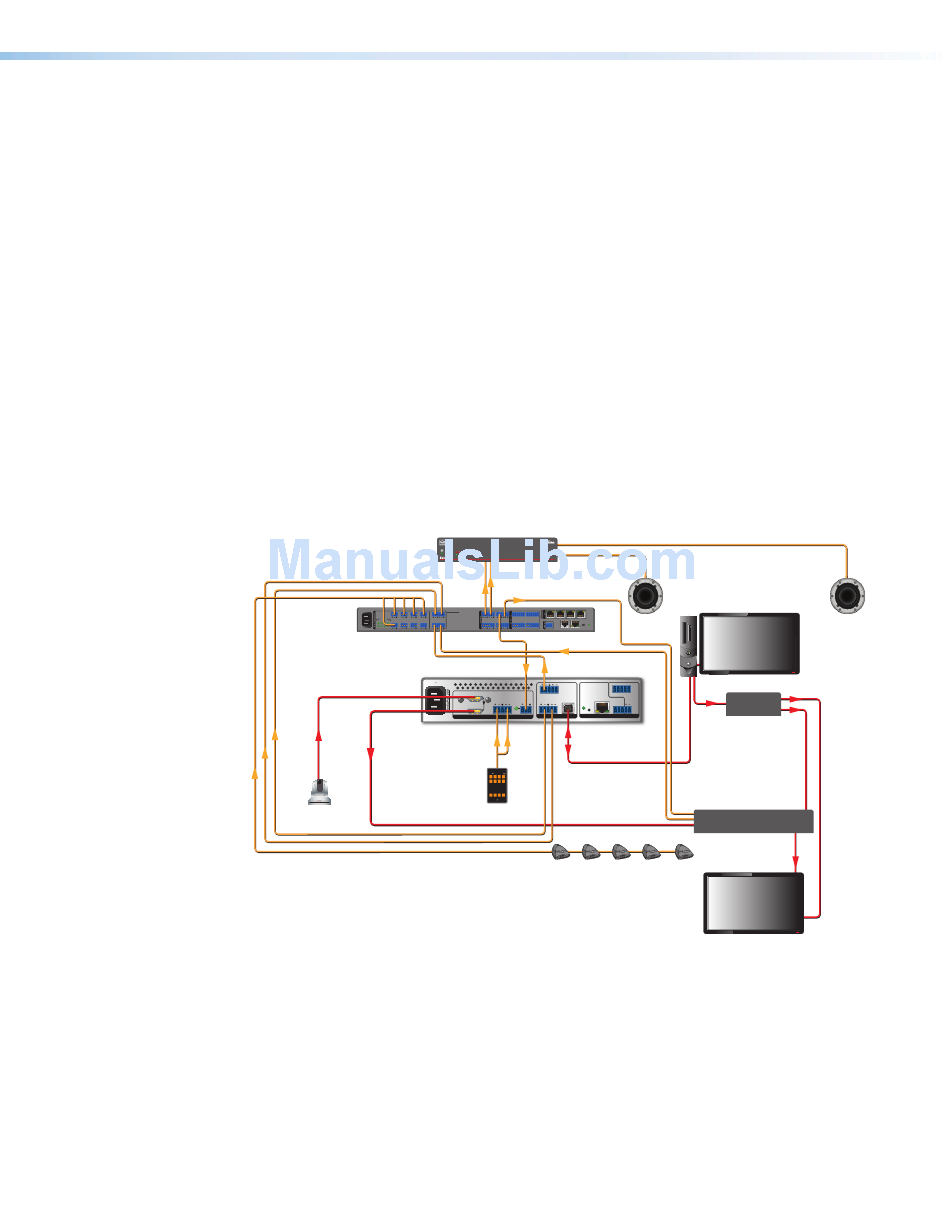

Application 4 – MediaPort 200 with Hardware and Software Codecs and DSP
Processor
This is an application for soft codec conferencing in a room that also has a hardware video
codec, in addition to a DSP processor that adds multiple microphones with distributed AEC.
Either software or hardware conferencing may be used independently at any time, or both
may be used simultaneously bridging both hardware and software codecs into the same
conference.
POWER
HD Camera
Figure 4.
For this application, the MediaPort must be configured for use with an external AEC
processing device. In Extron PCS, navigate to the
Audio Mode, select External DSP with AEC.
OVER 1 2
TEMP
LIMITER/PROTECT
SIGNAL
XPA 1002
100-240V ~ 0.7A MAX 1 2 3 4 9 10 DMP 128 C AT 1 2 3
MIC +48V
1 2 3 4
5 6 7 8 11 12 5 6 7
5 6 7 8
50/60 Hz
DMP 128 C AT
100-240V - - A MAX
HDMI
LINE
L
LOOP OUT
INPUT
50/60 Hz
MediaPort 200
iPod
9:45 AM
STANDBY
iPod
Application 4 — MediaPort 200 with Hardware and Software Codecs
and a DSP Processor
MediaPort 200 Audio Application Tutorial • Audio Application Setup
Audio
XPA 1002
4
1 2 3 4 5 G 6 7 8 9 10 G
1 2 3 4
8 RS-232 RESET
11 12 13 14 15 G 16 17 18 19 20 G Tx Rx G EXP LAN
I1 I2 G O1 O2
I/O
REF AUX
LAN
MIC/LINE LINE USB RS-232 +12V
R L R
RESET
Tx Rx G
0.1A
MAX
+48V
OUTPUT REMOTE
Video/Audio
Table Microphones
General Settings
PC
HDMI DA
Video Codec
Display
page, and under
