Application 2 – MediaPort 200 with DSP Processor with AEC
This is an application for soft codec conferencing, where the MediaPort 200 operates in
conjunction with a DSP processing device with AEC (acoustic echo cancellation). The
MediaPort AEC Ref output sends far end USB communications audio to the DSP processor
as an AEC reference. The line output from the MediaPort 200 sends program audio to the
DSP processor, where it's routed for AEC reference and for sound reinforcement. The send
to the sound reinforcement system, which includes program and far end audio, comes from
the DSP processor output.
DMP 128 C AT
HD Camera

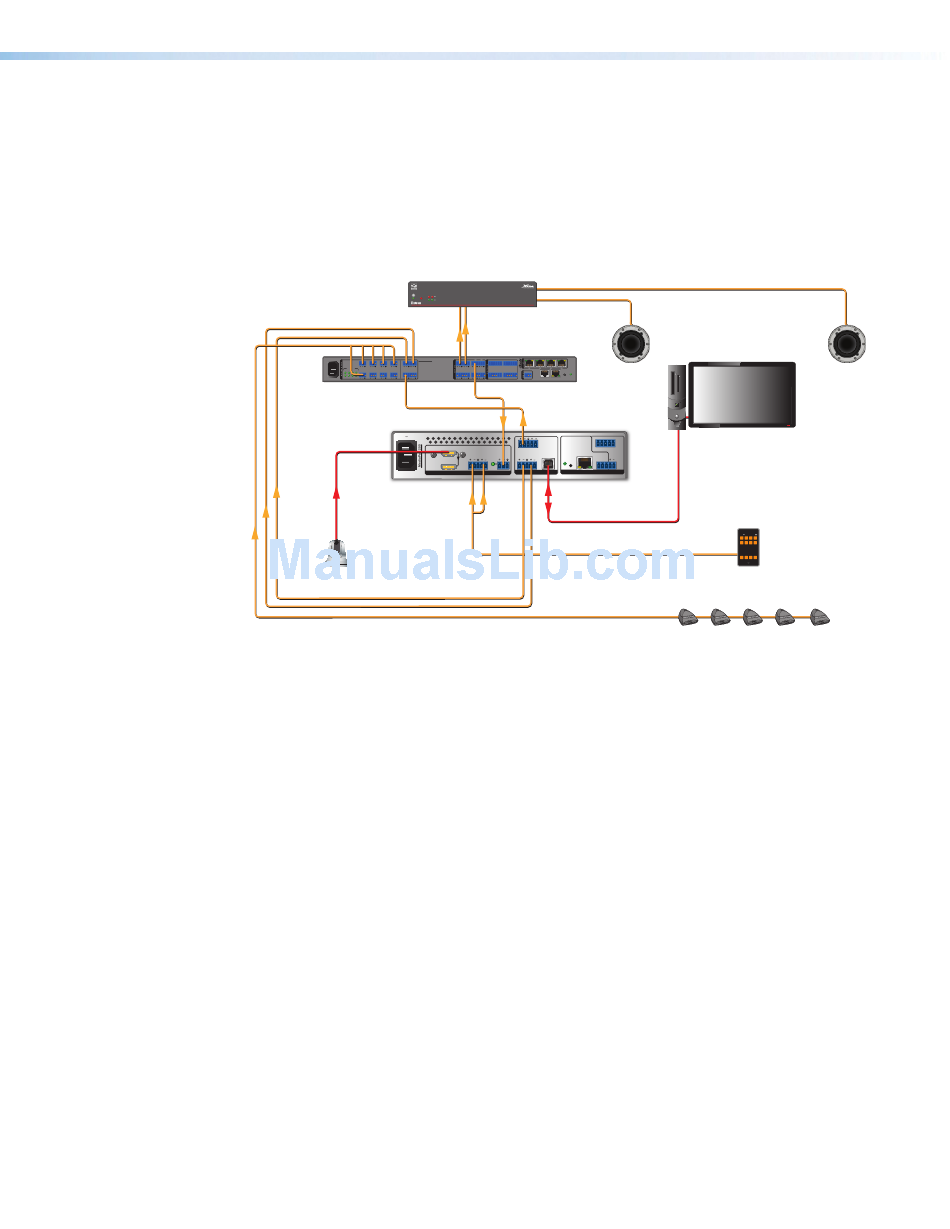

Figure 2.
For this application the MediaPort must be configured for use with an external AEC
processing device. In Extron PCS, navigate to the
Audio Mode, select External DSP with AEC.
Connect to the MediaPort 200
1. Connect an HDMI source to the MediaPort input. For this example, an HDMI video
camera is used.
2. Connect a program source to the MediaPort Line Input (as needed).
3.
Connect a USB cable to the MediaPort rear panel USB connector and your PC or Mac
computer. Make sure that the drivers are configured properly.
4. Set the MediaPort 200 to enumerate as a Speakerphone device with AEC.
1 2
OVER
TEMP
LIMITER/PROTECT
SIGNAL
XPA 1002
1 2 3 4 9 10 DMP 128 C AT 1 2 3 4
100-240V ~ 0.7A MAX
1 2 3 4 5 G 6
MIC +48V
1 2 3 4 5 6 7 8 11 12 5 6 7 8
5 6 7 8
50/60 Hz 11 12 13 14 15 G 16 17 18 19 20 G
100-240V - - A MAX
HDMI
LINE MIC/LINE
L R
LOOP OUT
+48V
INPUT
50/60 Hz
MediaPort 200
POWER STANDBY
Application 2 — MediaPort 200 with a DMP 128 DSP Processor for Soft
Codec
MediaPort 200 Audio Application Tutorial • Audio Application Setup
Audio
XPA 1002
7 8 9 10 G
1 2 3 4
RS-232 RESET
Tx Rx G EXP LAN
I1 I2 G O1 O2
REF AUX I/O
LAN
LINE USB RS-232 +12V
L R
RESET
Tx Rx G
0.1A
MAX
OUTPUT REMOTE
Video/Audio
General Settings
PC
iPod
9:45 AM
iPod
Table Microphones
page, and under
