AEC Ref and Aux Outs

These two outputs provide special routing capabilities that make it easy to use the
MediaPort 200 with an external DSP matrix processor and/or a hardware video
conferencing device (video codec). The AEC Ref Out carries the only far end USB
Communications audio, while the Aux Out carries only the audio signal from the MediaPort
Mic/Line In.

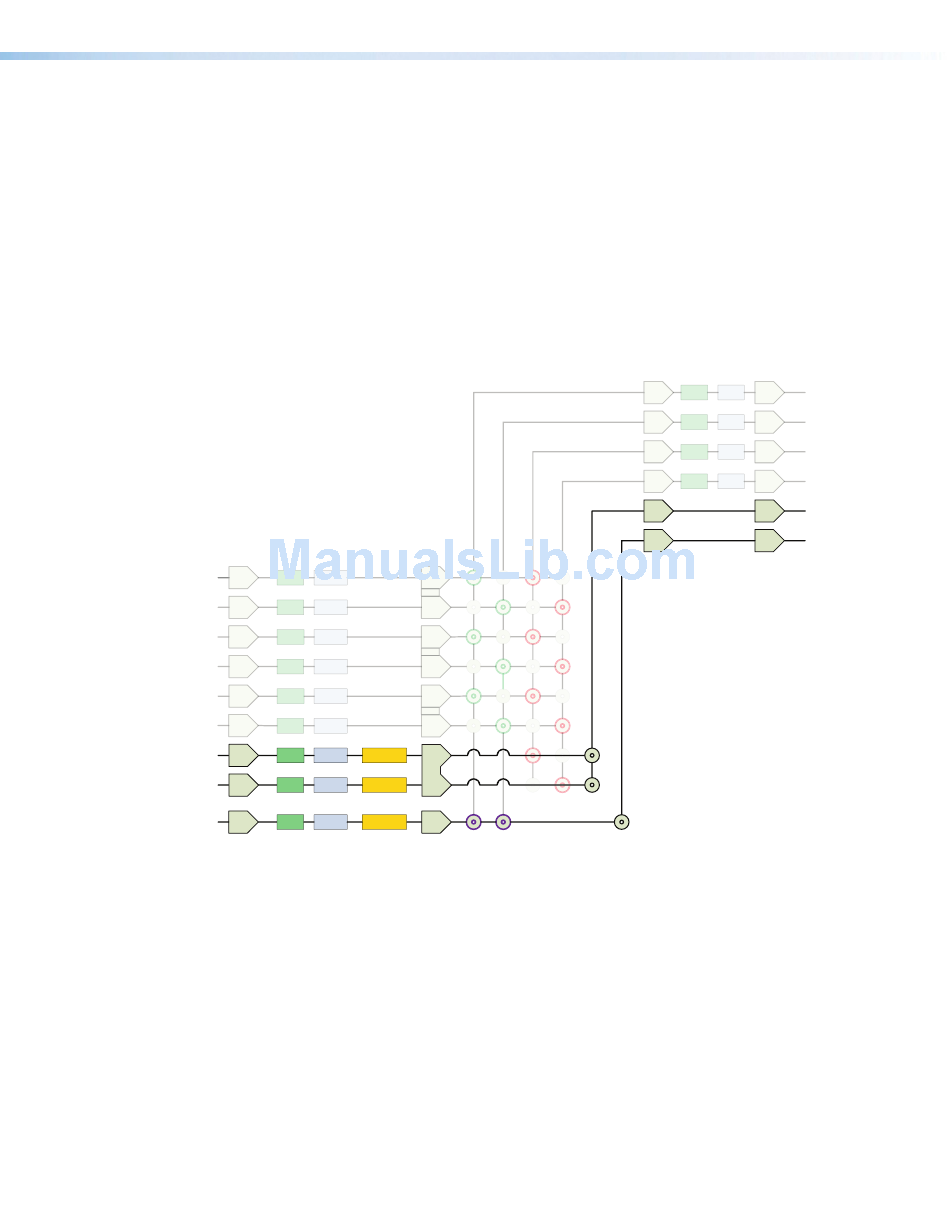

The illustration below highlights the routing to these two outputs. There are no master
controls for these signal paths. Level is set on the input gain controls and the output
attenuation controls.
Set the input gain for optimal signal levels. Settings for AEC Ref and Aux Out attenuation
controls may remain at 0 dB for unity gain in most cases. Adjust the output controls if the
device connected to these outputs requires a lower signal level, though it is recommended
to adjust the input level of the connected device in this case.
USB PLAYBACK L
GAIN
USB PLAYBACK R
GAIN
HDMI IN L
GAIN
HDMI IN R
GAIN
LINE IN L
GAIN
LINE IN R
GAIN
USB COMMUNICATIONS L
GAIN
USB COMMUNICATIONS R
GAIN
MIC/LINE IN
GAIN
Figure 12.
FLT COMP GAIN
FLT COMP GAIN
FLT COMP GAIN
FLT COMP GAIN
FLT COMP GAIN
FLT COMP GAIN
FLT COMP DUCKER GAIN
FLT COMP DUCKER GAIN
FLT COMP DUCKER GAIN
AEC Ref and Aux Out Routing (Example)
MediaPort 200 Audio Application Tutorial • MediaPort 200 Signal Flow
SIG
USB OUT L
FLT LIM ATT
GEN
SIG
USB OUT R
FLT LIM ATT
GEN
SIG
LINE OUT L
FLT LIM ATT
GEN
SIG
LINE OUT R
FLT LIM ATT
GEN
SIG
REF OUT
ATT
GEN
SIG
AUX OUT
ATT
GEN
