Application Setup Examples

Application 1 – Standalone MediaPort 200
This is an application for soft codec conferencing, where the MediaPort 200 operates as a
standalone device.
Camera
Figure 1.
1.
2.
3.
4.
5.
6.
1 2
OVER
TEMP
LIMITER/PROTECT
SIGNAL
XPA 1002
100-240V - - A MAX
HDMI
LINE
L R
LOOP OUT
+48V
INPUT
50/60 Hz
MediaPort 200
POWER STANDBY

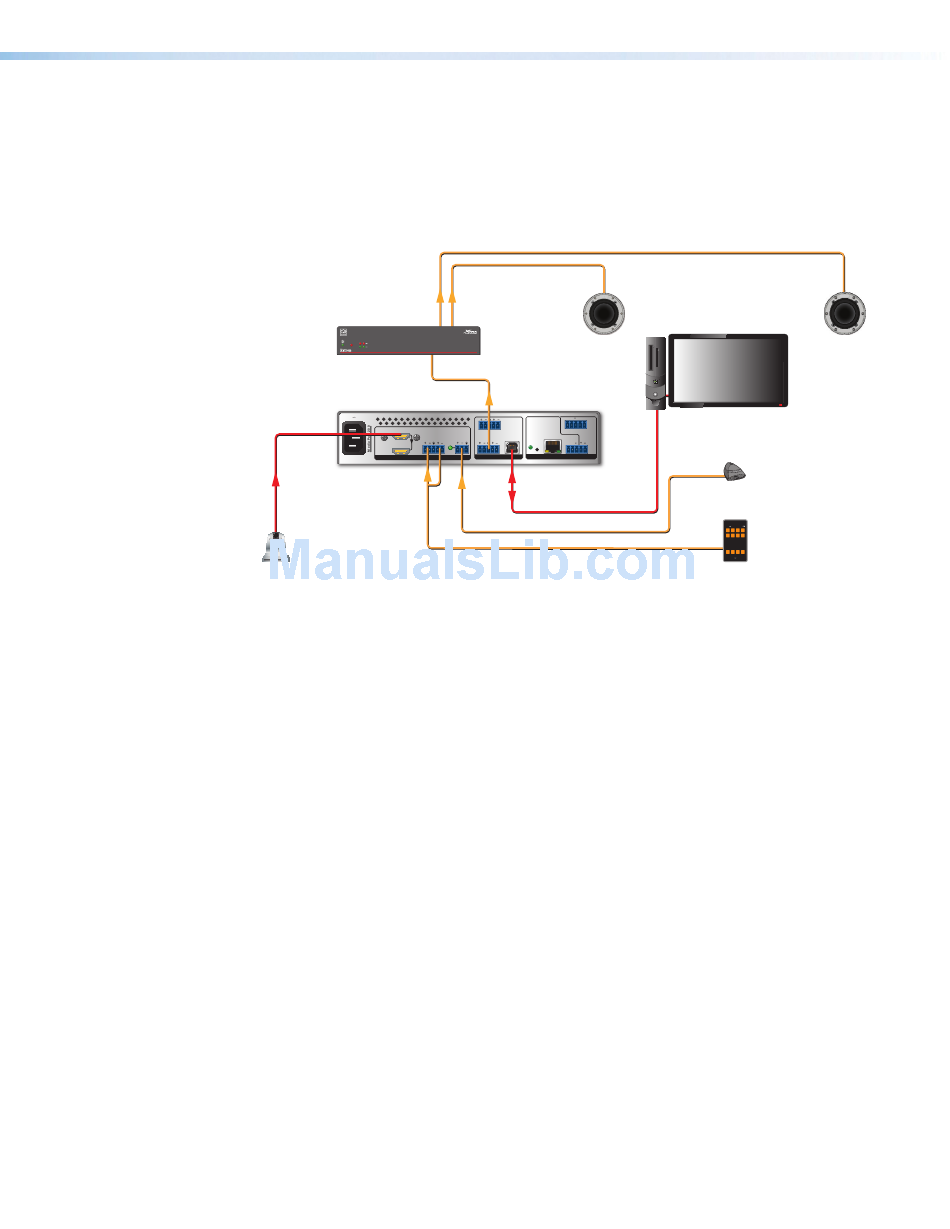

Application 1 — Standalone MediaPort 200 for Soft Codec
Conferencing
Connect an HDMI source to the MediaPort input. For this example, an HDMI video
camera is used.
Connect a program source to the MediaPort Line Input (as needed).
Connect a microphone to the MediaPort Mic Input.
Connect the MediaPort Line Output to a sound reinforcement system.
Connect a USB cable to the MediaPort rear panel USB connector and your PC or Mac
computer. Make sure that the drivers are configured.
Set the MediaPort 200 to enumerate as a Speakerphone device.
MediaPort 200 Audio Application Tutorial • Audio Application Setup
Audio
'
XPA 1002
I1 I2
O 1 O2
REF AUX I/O
LAN
MIC/LINE LINE USB RS-232 +12V
L R
RESET
Tx Rx
0.1A
MAX
OUTPUT REMOTE
Video/Audio
PC
Table Microphone
iPod 9:45 AM
iPod
