USB Communications Input 11

"Far end" audio from a soft codec conference is received at the MediaPort's USB
Communications input and is sent to the MediaPort 200 Ref Out.
• MediaPort Ref Out is connected to DMP 128 Input 11 "MP Far End."
DMP 128 Input 11 is routed to Outputs 1 and 2, and then connected to the sound
•
reinforcement system in the room.
• DMP 128 Input 11 is also routed to Virtual Send H for the AEC reference.

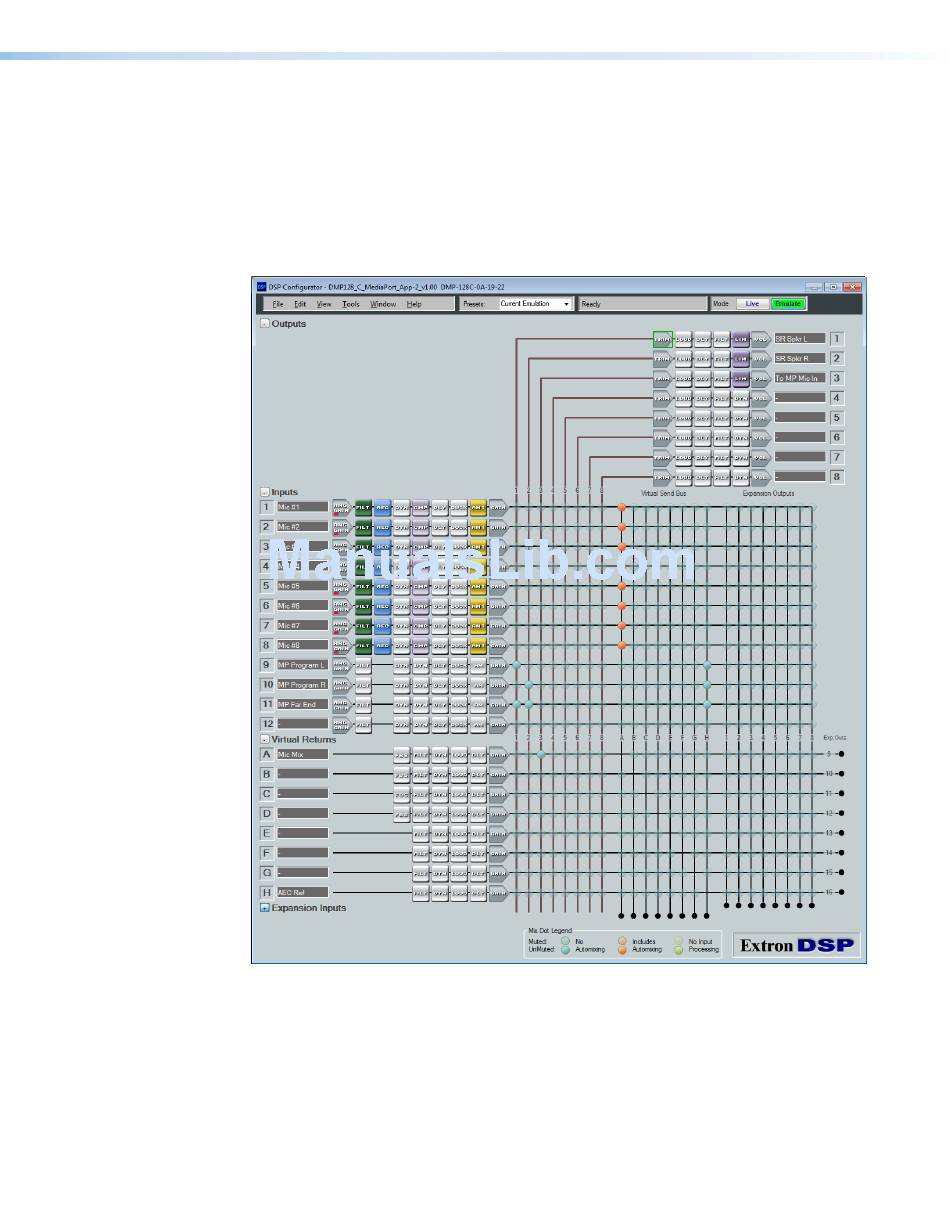

Figure 13. Application #2 Screenshot
MediaPort 200 Audio Application Tutorial • Configurations for DMP 128 23
