3. Operating Controls

07
06
05

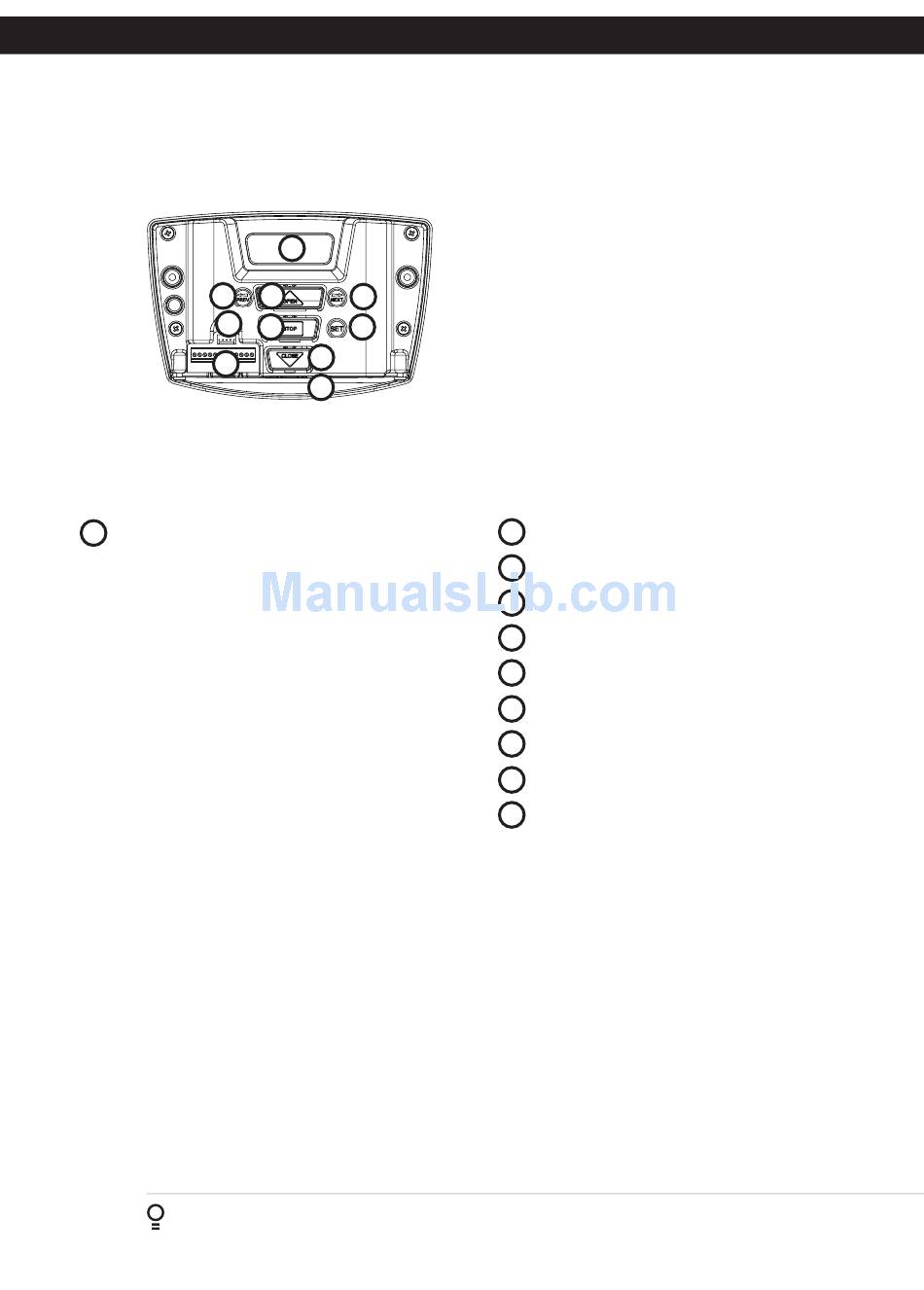

Fig 3.1 - Logic Console
Terminal Block ( From Left To Right )
05
V2 Console:
AUX OUT Receiver's Auxiliary Output
V+ Accessory Supply
SB3 Third Safety Beam Input
SB2 Second Safety Beam Input
SB1 First Safety Beam Input
0V Common For Safety Beams
0V Common Terminal For Control Inputs
FIRE N/O , N/C Input Terminal
GPI N/O Input Terminal
OPN N/O , N/C Input Terminal
STP N/O , N/C Input Terminal
CLS N/O Input Terminal
6 Axess Pro 1505
®
08
10 09
11 12
13
14
Installation Instructions
Programmer PG-3 Input
06
Console Previous Button
07
Liquid Crystal Display
08
Console Next Button
09
Console Open Button
10
Console Stop Button
11
Console Set Button
12
Console Close Button
13
RJ45 Connector
14
