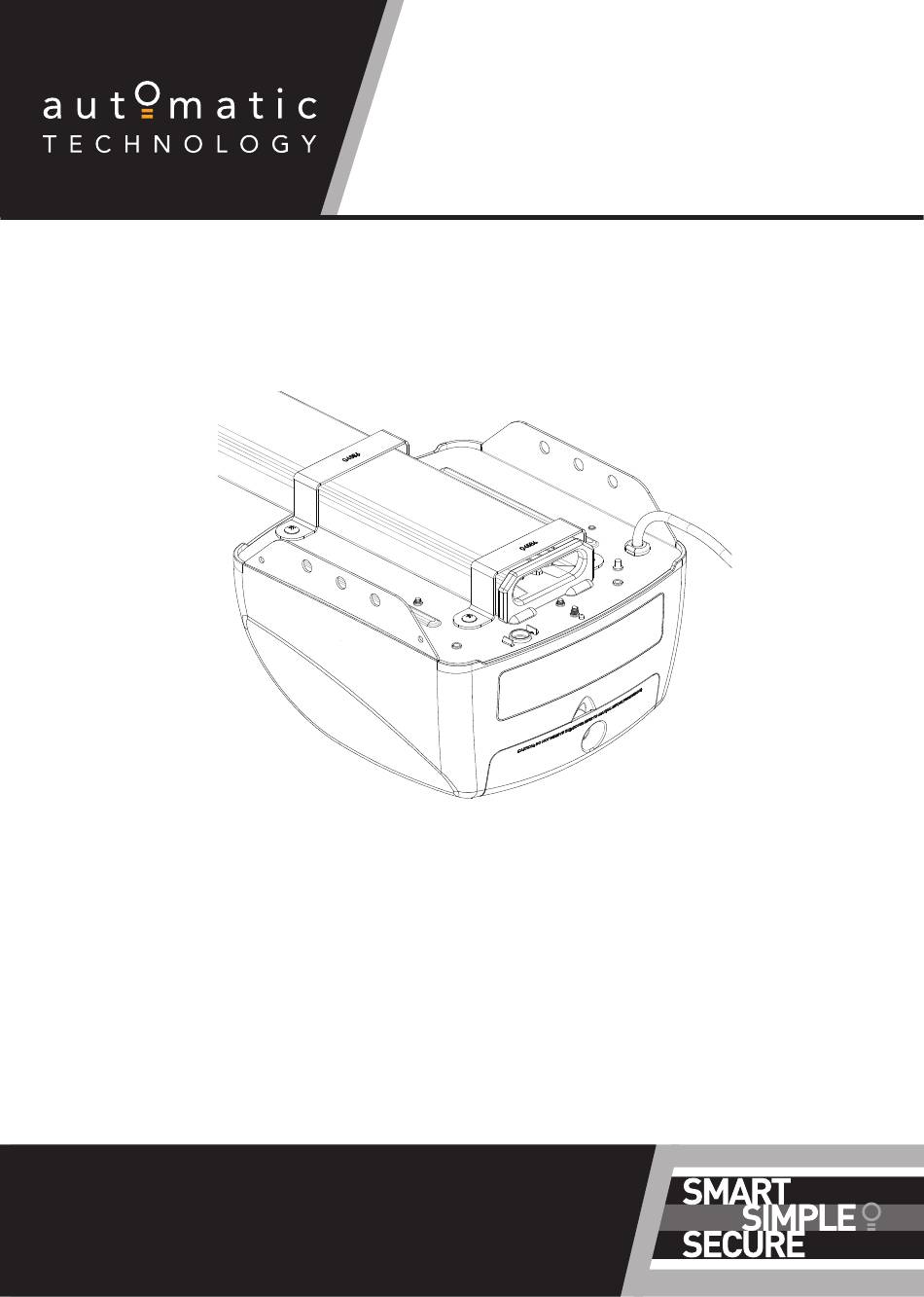

- Page 1 ® GDO-11 S e c t i o n a l D o o r O p e n e r I n s t a l l a t i o n M a n u a l Doc # 160424_04 Released 15/12/22...
-
Page 2: Table Of Contents
GDO-11 Ero Installation Manual Table of Contents 1. Important Safety Warnings! Installation Instructions 2. Before you Begin 14. Coding a Transmitter 14.1 Storing the Transmitter Code 3. Tools Required 14.2 Remotely Coding Transmitters 4. Kit Contents 14.3 Vacation Mode 5. Position 14.4 Aux Output 6. -
Page 3: Important Safety Warnings
Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. •... - Page 4 GDO-11 Ero Installation Manual 1. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage.
-
Page 5: Before You Begin
GDO-11 Ero Installation Manual 2. Before you Begin 2.1 Examine the conditions in the garage: a. Look at the ceiling: i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural support. You will need to locate the structural beams in the ceiling which are generally 400mm apart. -
Page 6: Kit Contents
GDO-11 Ero Installation Manual 4. Kit Contents PLUS 1 x Track Hardware Kit 1 x GDO-11 drive unit 1 x Pre-Assembled track 1 x Bent arm door attachment 1 x Transmitter Holder 3 x Transmitters 5. Position 5.1 The Opener: a. -
Page 7: Fit The Opener
GDO-11 Ero Installation Manual 6. Fit the Opener 6.1 Secure C-Rail to Opener: a. Remove the Opener from the box. b. Locate and insert the shaft of drive unit into the C-Rail’s sprocket. c. Fix the two track brackets with four (4) M4 x 8 screws supplied in accessory pack. -
Page 8: Perforated Angle
GDO-11 Ero Installation Manual 8. Perforated Angle (Not supplied) 8.1 Attach Perforated Angle (not supplied) or equivalent a. Measure across the ceiling from the centre point 3177mm (+/- 150mm) to find a supporting beam. b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the perforated angle to a supporting beam using diagrams shown below. -
Page 9: Mounting Brackets And Arms
GDO-11 Ero Installation Manual 9. Mounting Brackets and Arms 9.1 Mounting the Door Bracket: For J-Type doors: Refer to Appendix G for a. The door bracket locator is placed over the door bracket attaching arms , on the door’s centre line one-third down the top panel and mounted using M6 or equivalent screws (not supplied), b. -
Page 10: Setting Limits
GDO-11 Ero Installation Manual 11. Setting Limits 11.1 Setting the Datum: a. Press and hold the MINUS (-) or PLUS (+) buttons to move the door to the halfway position. Ensure that the door, shuttle and chain index are engaged. b. -
Page 11: Clearting The Door Limit Positions
GDO-11 Ero Installation Manual NOTE: If unhappy with the positions set, restart the proceedure by resetting the door limit positions as per below. 11.3 Clearting the Door Limit Positions: C L E A R I N G T H E D O O R L I M I T P O S I T I O N S S T E P O N E S T E P T W O Remove controls cover... -
Page 12: Safety Testing
GDO-11 Ero Installation Manual 12. Safety Testing 12.1 Test the Close Cycle CAUTION: Take care when completing a a. Press the OPERATE button to open the door. safety test. Failure to follow this warning b. If the door closes, press the OPERATE button to stop the door, can result in serious personal injury and/or then press OPERATE again to open. -
Page 13: Control Board & Accessories
GDO-11 Ero Installation Manual 13. Control Board & Accessories 13.1 Control Board Layout To access the control board: a. Remove the back cover by unscrewing the two (2) screws. b. Refer to below diagram. Programmer Solar / Battery Backup Network Terminal Solar Block... -
Page 14: Coding A Transmitter
GDO-11 Ero Installation Manual 14. Coding a Transmitter 14.1 Storing the Transmitter Code The opener can only be operated from remote controllers that have been programmed into its The opener can only be operated from remote memory. Up to 64 remotes can be programmed. BUTTON controllers that have been programmed into its memory. -
Page 15: Pet (Pedestrian) Mode
GDO-11 Ero Installation Manual 14. Coding a Transmitter 14.5 PET (Pedestrian) Mode 14.6 Courtesy Light P E T M O D E C O U R T E S Y L I G H T S T E P O N E S T E P T W O S T E P O N E S T E P T W O... -
Page 16: Opener Safety & Security
T O D I S E N G A G E T H E O P E N E R GDO-11 Ero Installation Manual It is recommended to disengsgre the door with the door in the closed position. 15. Opener Safety & Security DOOR 15.1 Your Door CAN NOT be used by the opener when: WARNING! When operating the manual... -
Page 17: User Operating Controls
GDO-11 Ero Installation Manual 17. User Operating Controls Button Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation 4. -
Page 18: Specifications
GDO-11 Ero Installation Manual 19. Specifications ™ Technical Specifications GDO-11V3 Ero Power supply 230V - 240V 50Hz Maximum door opening: Door Height (standard rail): 2440mm Maximum Door Weight: 110kg Door Area: 16.5m Door myst be well balanced and able to be operated by hand, as per warranty conditions and AS/NZS 4505:2012 Rail headroom... -
Page 19: Troubleshooting
GDO-11 Ero Installation Manual 20. Troubleshooting Symptom Possible cause Remedy The opener does Garage door in poor condition e.g. Check the door’s operation not work from the springs may be broken transmitter The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) into the power point and check that it is OK The battery in the transmitter is flat Replace the battery... - Page 20 GDO-11 Ero Installation Manual 20. Troubleshooting Symptom Possible cause Remedy The SERVICE LED has A Fault has been detected. The fault Record opener function (How many beeps?) then started to flash and will be active each time an attempt is press the SET button once to reset the opener.
-
Page 21: Service Checklist
GDO-11 Ero Installation Manual 21. After Installation Care 21.1 Service Checklist Preventative servicing of your garage door and opener, is just as WARNING! Failure to maintain your your important as servicing your car. Much like the engine of your car, your garage door voids the warranty on your garage door is made up of numerous moving parts designed to lift and garage door opener. -
Page 22: After Installation Care
SEE K I M M E D I ATE me di cal a t te n t i on . simple steps for protecting the environment. Refer to the Automatic Technology website for information on where to recycle batteries in Australia. - Page 23 GDO-11 Ero Installation Manual Automatic Technology office location Head Office 6-8 Fiveways Blvd, Keysborough 3073 Phone (03) 9791 0200 Prefixed trademarks are the property of Automatic Technology (Australia) Pty Ltd ABN 11 007 125 368. © 2020 Automatic Technology Australia Pty Ltd. ata-aust.com.au...
