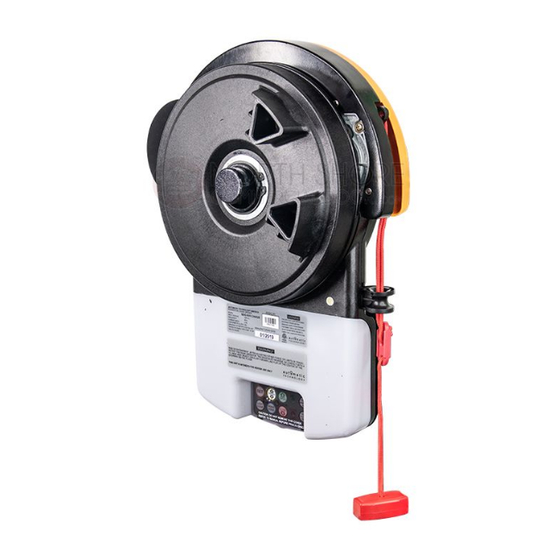

Automatic Technology EasyRoller GDO-6 Installation Manual

Automatic Technology EasyRoller GDO-6 Installation Manual

Rolling door opener
Hide thumbs Also See for EasyRoller GDO-6:

Advertisement

Quick Links

EasyRoller
®
GDO-6
R o l l i n g D o o r O p e n e r
Installation Manual
Doc # 160422_03
Released 26/10/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyRoller GDO-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Automatic Technology EasyRoller GDO-6

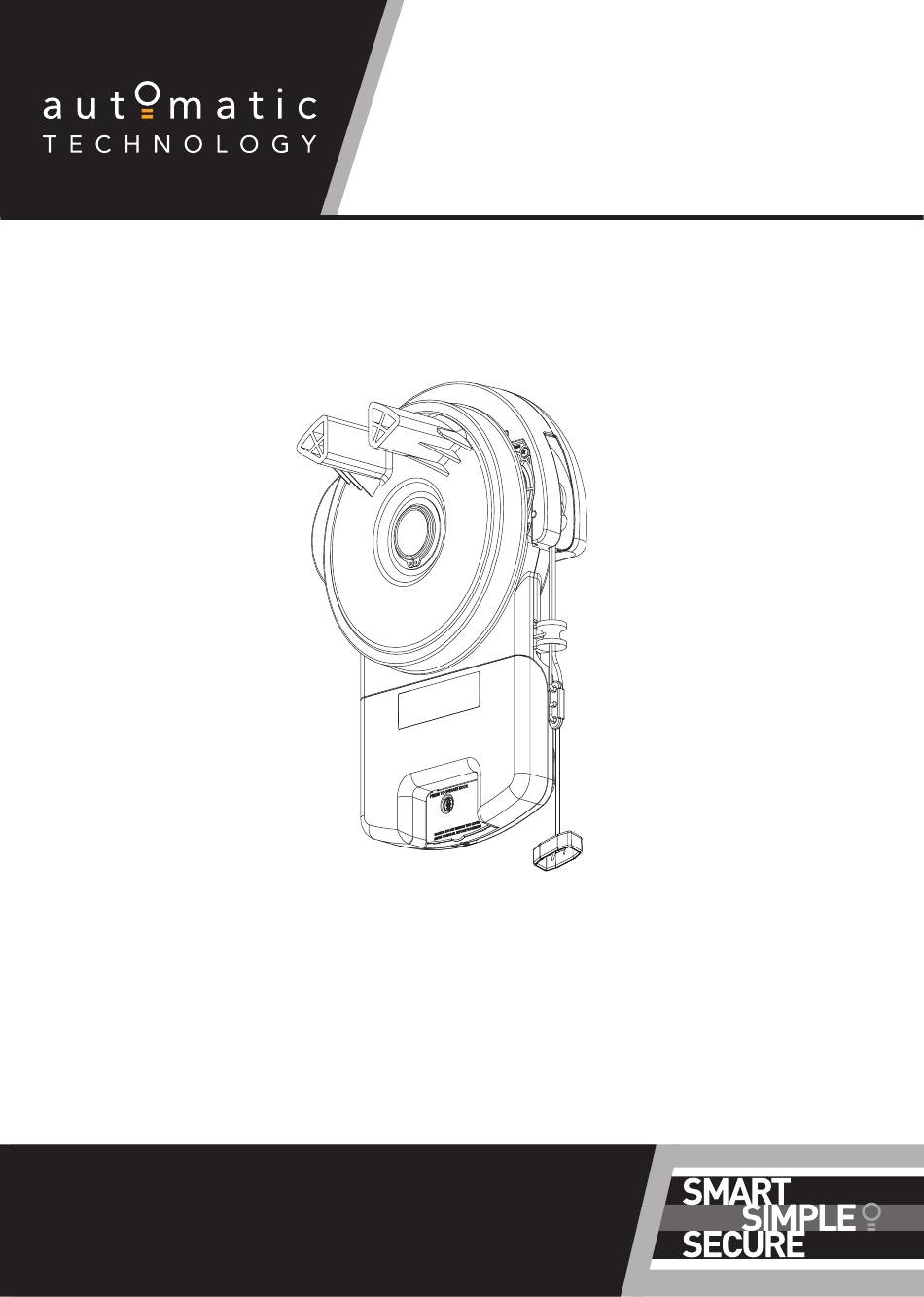

  • Page 1 EasyRoller ® GDO-6 R o l l i n g D o o r O p e n e r Installation Manual Doc # 160422_03 Released 26/10/22...
  • Page 2: Table Of Contents

    GDO-6 EasyRoller Installation Manual Table of Contents Safety Warnings 1. Important Safety Warnings! Installation Instructions 15. Coding a Transmitter 2. Kit Contents 15.1 Storing the Transmitter Code 3. Tools Required 15.2 Remotely Coding Transmitters 4. Setup Requirements 15.3 Coding for Vacation Mode 5.
  • Page 3 Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. •...
  • Page 4 GDO-6 EasyRoller Installation Manual 1. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage.
  • Page 5: Kit Contents

    GDO-6 EasyRoller Installation Manual 2. Kit Contents 1. 1 x drive unit Fastner Bag 2. 2 x Locking Bar Covers 5. 2 x Nilock Nut 3. 2 x PTX-6 Transmitters 6. 2 x 3/16 x 1/2 flat washers 4. 1 x Weight Bar 7.
  • Page 6: Setup Requirements

    GDO-6 EasyRoller Installation Manual 4. Setup Requirements 4.1 The Opener: a. MUST BE installed in a dry position, protected from weather. (Moisture or corrosion not covered by Warranty) b. Is factory set for RIGHT HAND SIDE installation (from inside garage), but capable of LEFT HAND SIDE installation. c.
  • Page 7: Door Preparation

    GDO-6 EasyRoller Installation Manual 5. Door Preparation 5.1 Prepare the Door: a. Clean the guides if there is any oil or wax present using a suitable white spirit. The only lubricant suitable for use on door guides is silicon spray. DO NOT use WD-40, RP-7, petroleum grease, or similar. b.
  • Page 8: Pinning The Door

    GDO-6 EasyRoller Installation Manual 7. Pinning the Door 7.1 Pinning the Door to the drum: Screw into the Pinning the door’s curtain to its drum maintains security when the opener is low part of closed. If the curtain is not pinned the door can be partially opened manually. grove a.
  • Page 9: Mounting The Opener

    GDO-6 EasyRoller Installation Manual 9. Mounting the Opener 9.1 Raising the Door: a. When in position, remove the U-bolt (or bolts) and saddle from the door bracket. b. Lift the door up and away from the wall until clear of the door bracket, before lowering the door to rest on the door stand or prop.
  • Page 10: Specifications

    GDO-6 EasyRoller Installation Manual 10. Specifications Technical Specifications GDO-6V4 GDO-6V3 EasyRoller ® EasyRoller ® Power supply 230V - 240Va.c. 50Hz 230V - 240Va.c. 50Hz Maximum door opening Door Height: 3.25 turns of the drum wheel 3.25 turns of the drum wheel (approx.
  • Page 11: Setting The Travel Limits

    GDO-6 EasyRoller Installation Manual 11. Setting the Travel Limits 11.1 Initial Preparation: S E T T I N G L I M I T S When setting the Close limit, ensure the position CAUTION: Limit setup is not available when running is when the door makes rst contact with the on battery backup ground.
  • Page 12: Clearing The Door Limit Positions

    GDO-6 EasyRoller Installation Manual 11. Setting the Travel Limits 11.2 Clearing the Door Limit Positions 11.3 Controller memory reset NOTE: If unhappy with the travel limit settting, restart this To clear the controller: procedure by clearing the door limit positions as per below first.
  • Page 13: Safety Testing

    GDO-6 EasyRoller Installation Manual 12. Safety Testing 12.1 Test the Close Cycle CAUTION: Take care when completing a a. Press the OPERATE button to open the door. safety test. Failure to follow this warning b. If the door closes, press the OPERATE button to stop the door, can result in serious personal injury and/or then press OPERATE again to open.
  • Page 14: To Recall Factory Set Force

    GDO-6 EasyRoller Installation Manual 12. Safety Testing 12.6 To Recall Factory Set Force 12.7 To Re-profile the door T O R E C A L L F A C T O R Y S E T F O R C E R E - P R O F I L I N G T H E D O O R Re-pro ling is a simple way of re-learning the travel S T E P O N E...
  • Page 15: Auto-Close

    GDO-6 EasyRoller Installation Manual 14. Auto-Close 14.1 Safety Beams WARNING! It is compulsory to have A Safety Beam Kit may be fitted to this opener. When this option is Safety Beams installed when using fitted, the operation of this device is such that if an object (i.e car, Auto-Close mode.
  • Page 16: Coding A Transmitter

    GDO-6 EasyRoller Installation Manual 15. Coding a Transmitter 15.1 Storing the Transmitter Code The opener can only be operated from remote The opener can only be operated from remote controllers that have been programmed into its controllers that have been programmed into its memory.
  • Page 17: Coding For Pet (Pedestrian) Mode

    GDO-6 EasyRoller Installation Manual 15. Coding a Transmitter 15.5 Coding for PET (Pedestrian) Mode 15.6 Coding for Courtesy Light P E T M O D E C O U R T E S Y L I G H T S T E P O N E S T E P O N E S T E P T W O Remove controls cover...
  • Page 18: Opener Safety & Security

    2 . 0 M A N U A L D O O R O P E R A T I O N T O D I S E N G A G E T H E O P E N E R GDO-6 EasyRoller Installation Manual It is recommended to disengsgre the door with the door in the closed position.
  • Page 19: User Operating Controls

    GDO-6 EasyRoller Installation Manual 18. User Operating Controls Button Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. LIGHT CODE (White) Is used for storing or erasing the transmitter button (code) you wish to use to switch the courtesy light on the opener on or off.
  • Page 20: Troubleshooting

    GDO-6 EasyRoller Installation Manual 20. Troubleshooting Symptom Possible cause Remedy The opener does The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) into not work from the the power point and check that it is OK transmitter The battery in the transmitter is flat Replace the battery...
  • Page 21 GDO-6 EasyRoller Installation Manual 20. Troubleshooting Symptom Possible cause Remedy The SERVICE LED has A Fault has been detected. The fault Record opener function (How many beeps?) then started to flash and will be active each time an attempt is press the SET button once to reset the opener.
  • Page 22: After Installation Care

    GDO-6 EasyRoller Installation Manual 21. After Installation Care 21.1 Service Checklist Preventative servicing of your garage door and opener, is just as WARNING! Failure to maintain your your important as servicing your car. Much like the engine of your car, your garage door voids the warranty on your garage door is made up of numerous moving parts designed to lift and garage door opener.
  • Page 23: Battery Replacement

    GDO-6 EasyRoller Installation Manual 21. After Installation Care C H A N G I N G A B A T T E R Y 21.2 Battery Replacement Battery Type: 1 x CR2032. S T E P O N E Light Status Battery WARNING! The battery is hazardous and must be kept out of reach of children.
  • Page 24 GDO-6 EasyRoller Installation Manual Automatic Technology office location Head Office 6-8 Fiveways Blvd, Keysborough 3073 Phone (03) 9791 0200 Prefixed trademarks are the property of Automatic Technology (Australia) Pty Ltd ABN 11 007 125 368. © 2020 Automatic Technology Australia Pty Ltd. ata-aust.com.au...
