8. Setting Limits via Console

8.1 Setting Travel Limits with Logic Console
a. Turn on the power to the opener. The controller will go through a
start up sequence.
b. After a short delay the MAIN SCREEN
If this is the first time the Axess
SCREEN should enter into limit set mode and the blue close LED
will be flashing. If the display shows that an input is active, then
rectify the situation before continuing with the procedure for
setting the travel limits. Press and hold the CLOSE button - the
Door should start closing.
i. If the Door opens, release the CLOSE button and press the
STOP button once to change the motor's direction. Press and
hold the CLOSE button until close position of the Door is
reached.
ii. If the Door overshoots, press the OPEN button to move the
Door in the open direction.
c. When the Door is at the desired close position, press the SET
button to record the close limit position. The display will change
and the green open LED will start to flash
d. Press and hold the OPEN button to open the Door. When the
Door is at the desired open position, release the OPEN button
i. If the Door overshoots, press the CLOSE button to move the
Door in the CLOSE direction.
WARNING! Once the next step is performed, the Door
will automatically close and open to calculate travel
time settings. Keep persons and objects clear of the
Door.
e. Press the SET button to store the open limit. The Door will now
automatically close and open to calculate the travel time settings.
After this, If PE Beams are installed, the opener can be operated
with the OPEN or CLOSE button on the logic console or from the
transmitter. Otherwise, the controller will be loaded with "Safety
Close Mode". (Section 13.1)
8.1) will be displayed.
(Fig.
Pro 1505 is being used, the MAIN
®
8.2).
(Fig.
To Desired
CLOSE Limit, SET
To Desired
OPEN Limit,
SET
Installation Instructions Axess Pro 1505
®

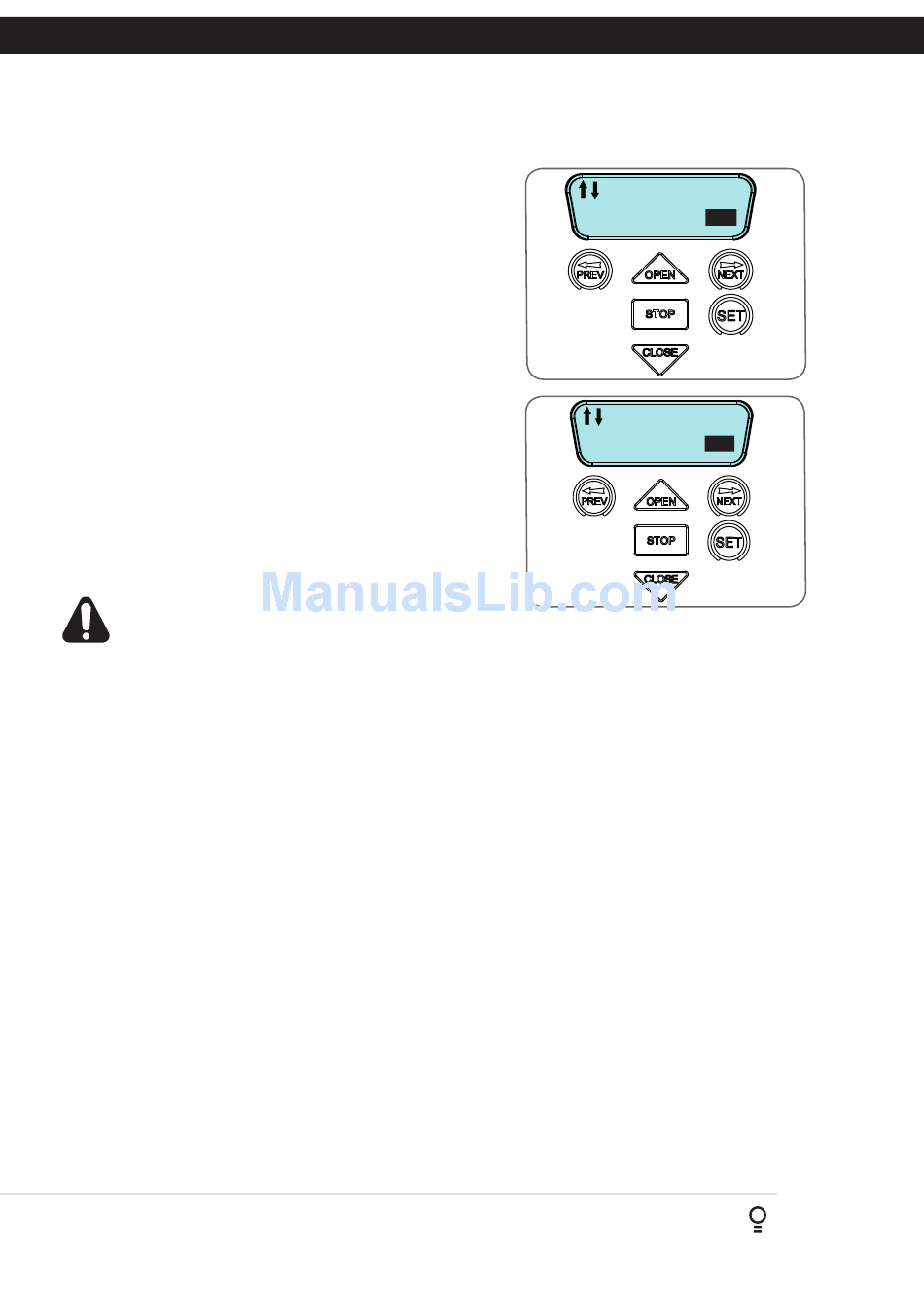

Fig 8.1
Fig 8.2
11
