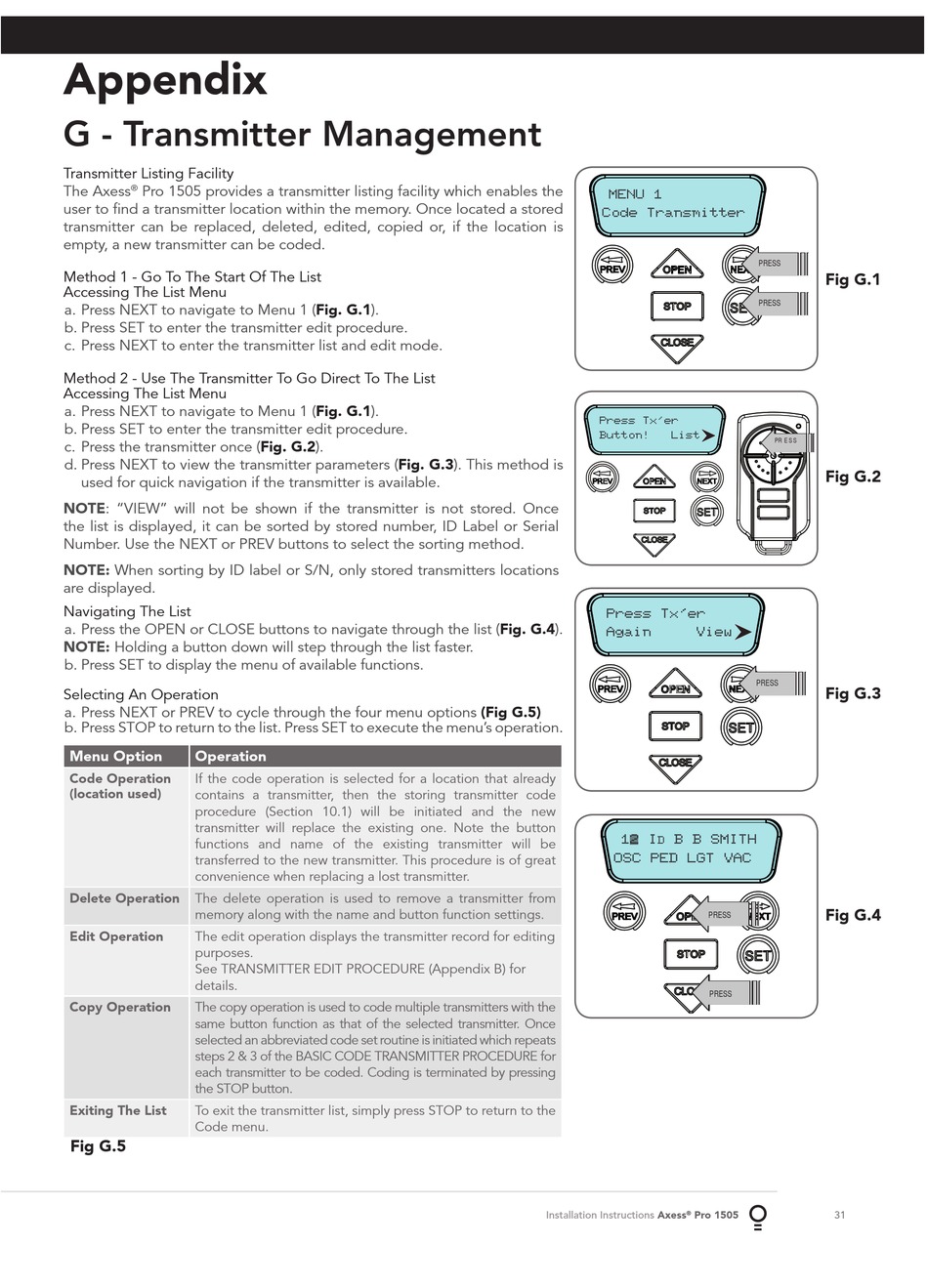

G - Transmitter Management

Transmitter Listing Facility
The Axess Pro 1505 provides a transmitter listing facility which enables the
®
user to find a transmitter location within the memory. Once located a stored
transmitter can be replaced, deleted, edited, copied or, if the location is
empty, a new transmitter can be coded.
Method 1 - Go To The Start Of The List
Accessing The List Menu
a. Press NEXT to navigate to Menu 1
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter the transmitter list and edit mode.
Method 2 - Use The Transmitter To Go Direct To The List
Accessing The List Menu
a. Press NEXT to navigate to Menu 1
b. Press SET to enter the transmitter edit procedure.
c. Press the transmitter once
d. Press NEXT to view the transmitter parameters
used for quick navigation if the transmitter is available.
NOTE: "VIEW" will not be shown if the transmitter is not stored. Once
the list is displayed, it can be sorted by stored number, ID Label or Serial
Number. Use the NEXT or PREV buttons to select the sorting method.
NOTE: When sorting by ID label or S/N, only stored transmitters locations
are displayed.
Navigating The List
a. Press the OPEN or CLOSE buttons to navigate through the list
NOTE: Holding a button down will step through the list faster.
b. Press SET to display the menu of available functions.
Selecting An Operation
a. Press NEXT or PREV to cycle through the four menu options
b. Press STOP to return to the list. Press SET to execute the menu's operation.
Menu Option Operation
Code Operation If the code operation is selected for a location that already
(location used)
contains a transmitter, then the storing transmitter code
procedure (Section 10.1) will be initiated and the new
transmitter will replace the existing one. Note the button
functions and name of the existing transmitter will be
transferred to the new transmitter. This procedure is of great
convenience when replacing a lost transmitter.
Delete Operation The delete operation is used to remove a transmitter from
memory along with the name and button function settings.
Edit Operation
The edit operation displays the transmitter record for editing
purposes.
See TRANSMITTER EDIT PROCEDURE (Appendix B) for
details.
Copy Operation The copy operation is used to code multiple transmitters with the
same button function as that of the selected transmitter. Once
selected an abbreviated code set routine is initiated which repeats
steps 2 & 3 of the BASIC CODE TRANSMITTER PROCEDURE for
each transmitter to be coded. Coding is terminated by pressing
the STOP button.
Exiting The List
To exit the transmitter list, simply press STOP to return to the
Code menu.
Fig G.5
G.1).
(Fig.
G.1).
(Fig.
G.2).
(Fig.
G.3). This method is
(Fig.
MENU 1
Code Transmitter
Press Tx'er
Button!
Press Tx'er
(Fig. G.4).
Again
(Fig G.5)
