Appendix

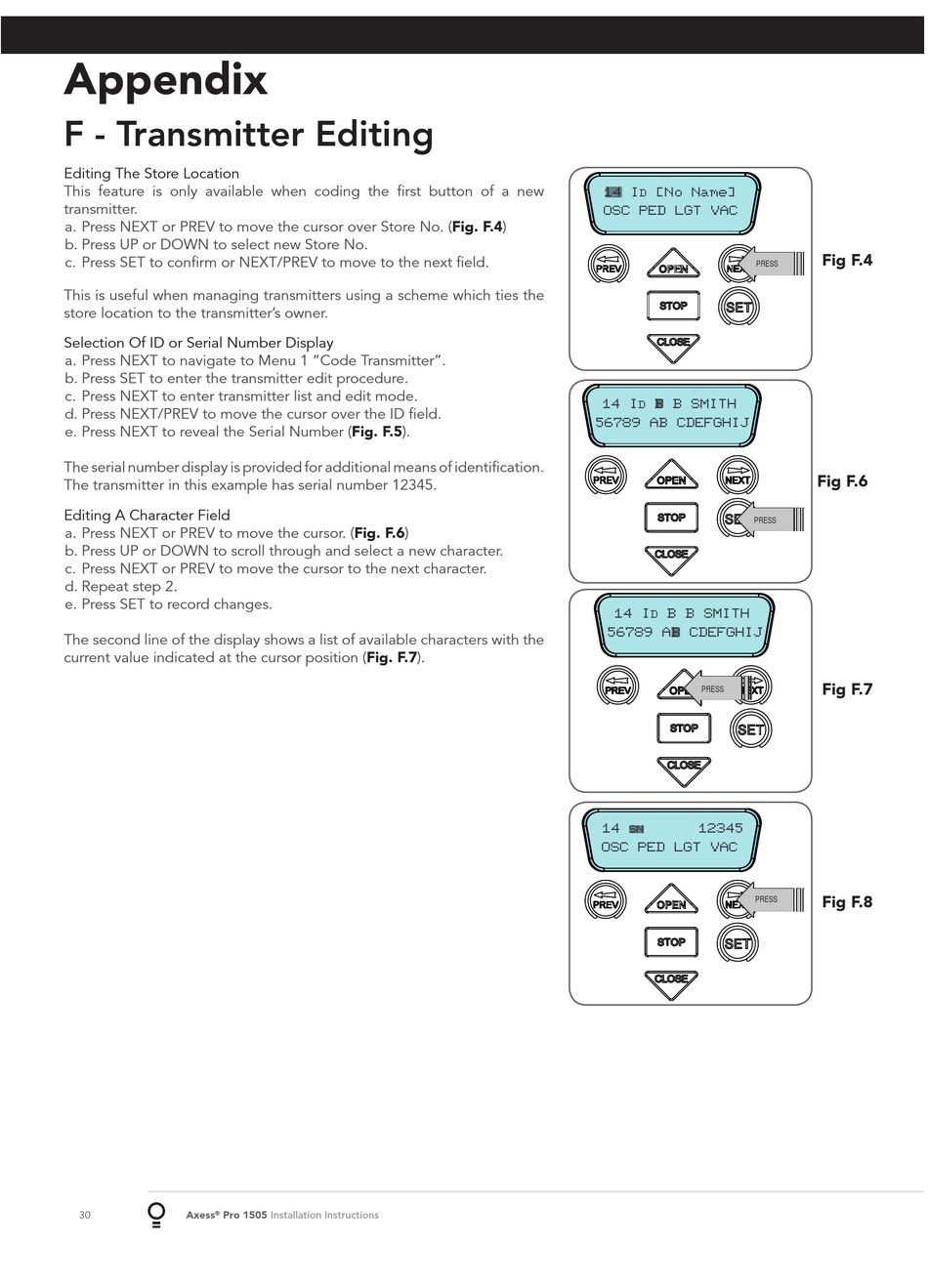

F - Transmitter Editing
Editing The Store Location
This feature is only available when coding the first button of a new
transmitter.
a. Press NEXT or PREV to move the cursor over Store No.
b. Press UP or DOWN to select new Store No.
c. Press SET to confirm or NEXT/PREV to move to the next field.
This is useful when managing transmitters using a scheme which ties the
store location to the transmitter's owner.
Selection Of ID or Serial Number Display
a. Press NEXT to navigate to Menu 1 "Code Transmitter".
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
d. Press NEXT/PREV to move the cursor over the ID field.
e. Press NEXT to reveal the Serial Number
The serial number display is provided for additional means of identification.
The transmitter in this example has serial number 12345.
Editing A Character Field
a. Press NEXT or PREV to move the cursor.
b. Press UP or DOWN to scroll through and select a new character.
c. Press NEXT or PREV to move the cursor to the next character.
d. Repeat step 2.
e. Press SET to record changes.
The second line of the display shows a list of available characters with the
current value indicated at the cursor position
30 Axess Pro 1505
®
(Fig. F.5).
(Fig. F.6)
(Fig. F.7).
Installation Instructions
14 I
OSC PED LGT VAC
(Fig. F.4)
14 I
56789 AB CDEFGHIJ
14 I
56789 AB CDEFGHIJ
14
OSC PED LGT VAC
[No Name]
D
PRESS
B B SMITH
D
PRESS
B B SMITH
D
PRESS
12345
SN
PRESS
Fig F.4
Fig F.6
Fig F.7
Fig F.8
