Installing The Tower-To-Rack Kit; Attaching The Cables; Model 110 - IBM TotalStorage IP Storage 200i 110 Installation Manual

Installing the Tower-to-Rack Kit

Refer to the instructions that come with your Tower-to-Rack Kit for information on
converting a tower model to a rack-mountable model.

Attaching the cables

This section describes how to attach the power and network cables to your
appliance.

Model 110

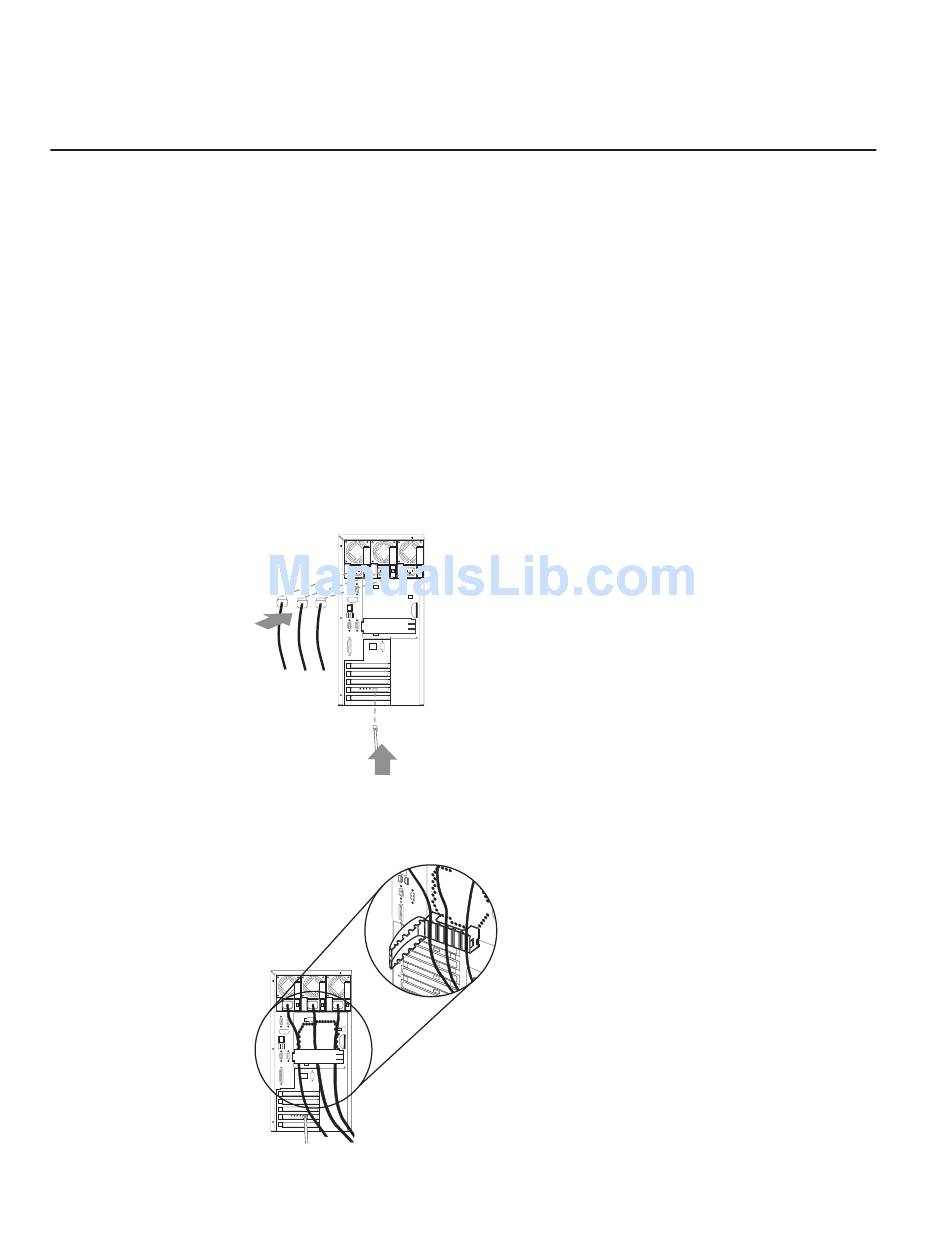

To attach the cables:
1. For each of the three power cords, connect the appropriate end of the power
2. Connect one end of the Gigabit Ethernet cable to the Gigabit Ethernet adapter
3. Route the power and network cables through the cable-restraint bracket on the
26
IBM TotalStorage IP Storage 200i Models 110 and 210 Installation Guide
cord to a power supply and the opposite end to a properly wired and grounded
electrical outlet.
located in expansion slot 4, and connect the opposite end to the system
network.
Note: You may use a 10/100 Ethernet cable if your network does not support
Gigabit Ethernet.
1 2 3
1
2
rear of the engine by opening the bracket and threading the cables through the
slots in interior of the bracket, and close the bracket.
