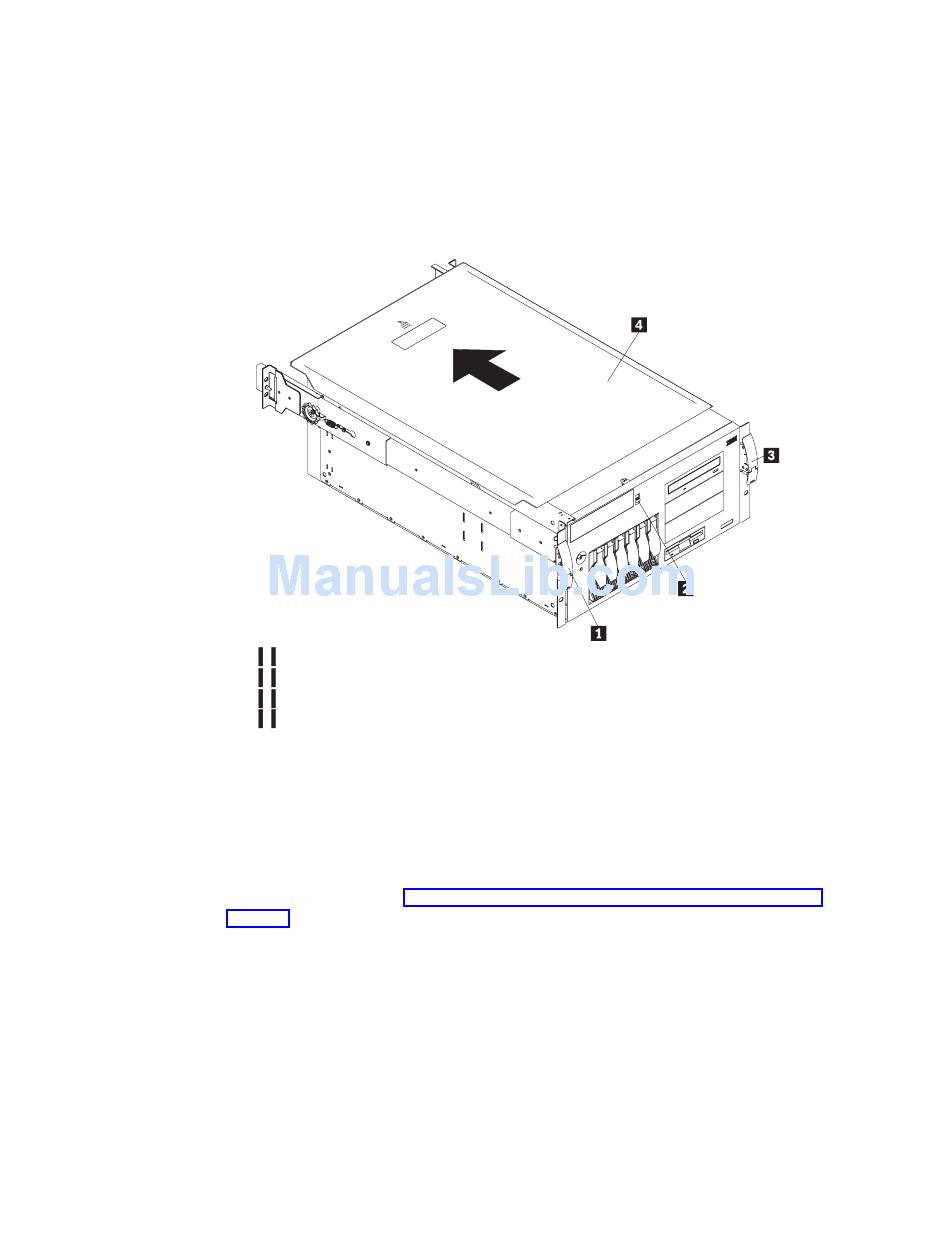

Removing the Model 210 cover: To remove the appliance top cover:
1. Power OFF the appliance and all attached devices and disconnect all external
2. Release the left and right safety latches and pull the appliance out of the rack
3. Move the cover-release lever down while sliding the top cover toward the rear of
4. Lift the cover off the appliance and set the cover aside.
Installing and replacing a memory module
Model 110 and Model 210 support two additional 512-MB DIMMs. Model 110
support a maximum of 1.5 GB of memory. Model 210 support a maximum of 2 GB
of memory.
Attention:
take precautions to avoid damage from static electricity. For details on handling
these devices, refer to "Handling electrostatic discharge-sensitive devices" on
page 54.
14
IBM TotalStorage IP Storage 200i Models 110 and 210 Installation Guide
cables and power cords.
enclosure until both slide rails lock.
the appliance about 25 mm (1 in.).
1
Left-side latch
2
Cover release lever
3
Right-side latch
4
Top cover
When you handle electrostatic discharge-sensitive devices (ESDs),
