4. Remove the battery:

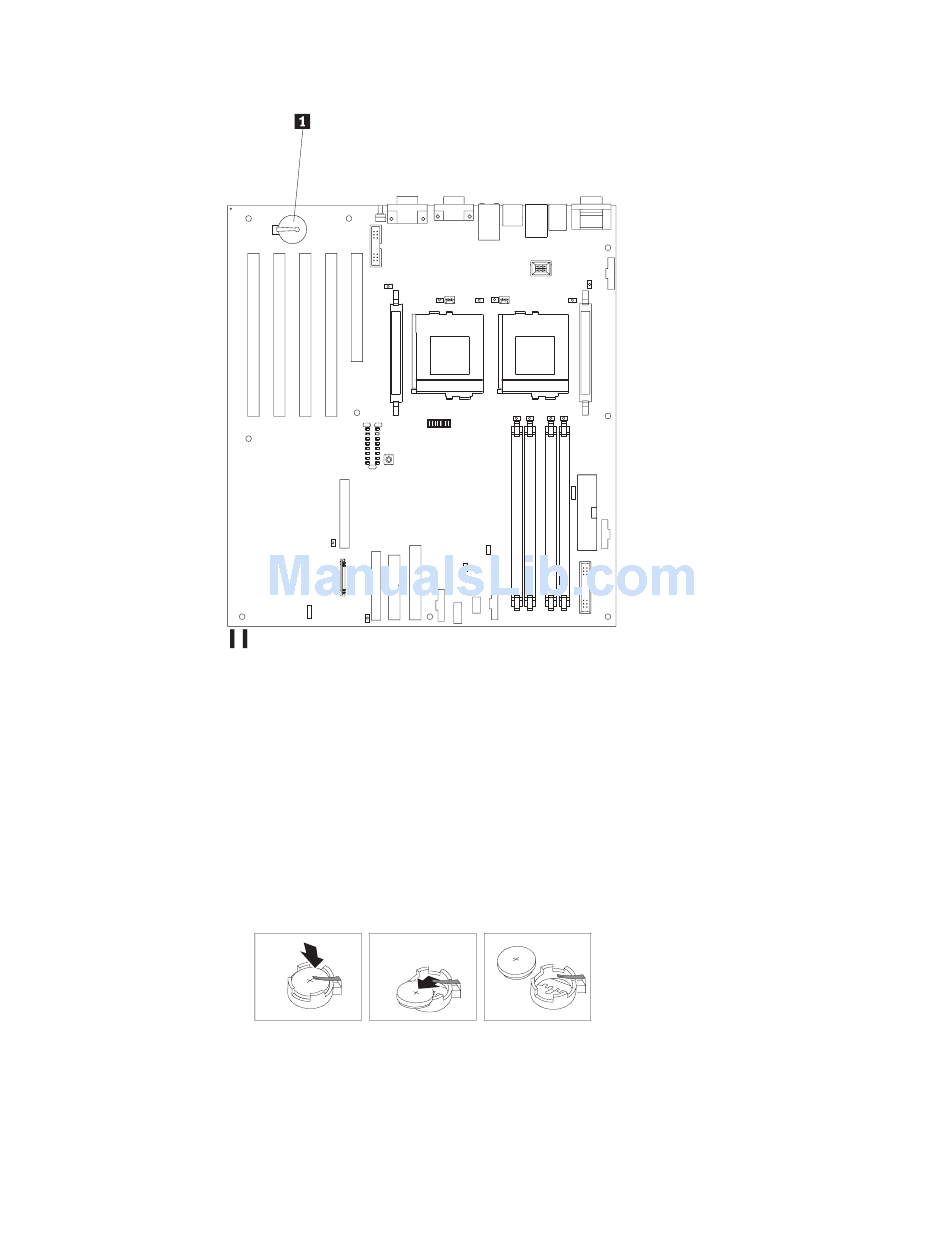

Figure 9. Replacing the battery
24
IBM TotalStorage IP Storage 200i Models 110 and 210 Installation Guide
1
Battery
a. Use one finger to lift the battery clip over the battery.
b. Use another finger to slightly slide the battery out from its socket. The spring
mechanism will push the battery out toward you as you slide it from the
socket.
c. Use your thumb and index finger to pull the battery from under the battery
clip.
d. Ensure that the battery clip is touching the base of the battery socket by
pressing gently on the clip.
