Setting memory configuration
You are not required to attach a monitor or keyboard to the appliance to set the
memory configuration.

Replacing the Gigabit Ethernet adapter

Your appliance comes with a Gigabit Ethernet adapter in PCI slot 4. The Gigabit
Ethernet adapter can be either a Gigabit Ethernet Copper Adapter or a Gigabit
Ethernet SX Adapter, depending on your needs. Use these instructions to replace a
defective Gigabit Ethernet Adapter or to change your adapter type (for example,
changing from a Gigabit Ethernet Copper Adapter to a Gigabit Ethernet SX
Adapter).
Replacing the Gigabit Ethernet adapter
To replace the Gigabit Ethernet adapter:

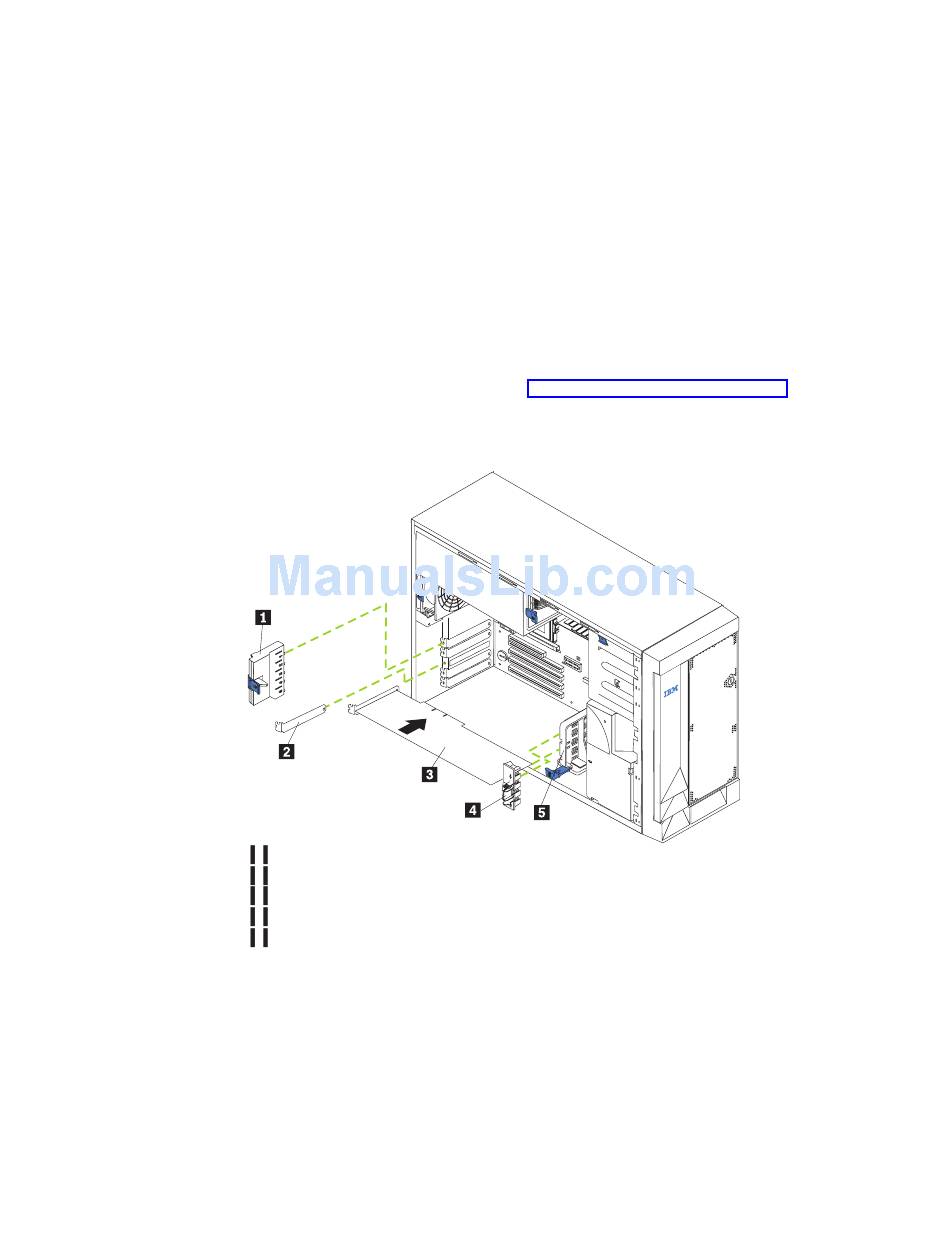

Figure 5. Replacing the Gigabit Ethernet adapter
1. Power OFF the appliance, and remove the power cords and external cables.
2. Remove the engine cover (see "Removing the cover" on page 13).
3. Remove the defective Gigabit Ethernet adapter:
1
Blue adapter-retention bracket
2
Expansion slot cover
3
Adapter
4
Adapter support bracket retaining clip
5
Adapter support bracket
a. Remove the blue adapter-retention bracket by pressing down on the tab
and lifting up the bracket.
b. Remove the adapter support bracket by pressing down on both tabs and
lifting up the bracket.
c. Carefully lift out the Gigabit Ethernet adapter.
4. Touch the static-protective package containing the Gigabit Ethernet adapter to
an unpainted metal expansion-slot cover on the engine. This discharges any
static electricity from the package and from your body.
Chapter 2. Installation procedures
19
