To replace the battery:
1. Power OFF the appliance and peripheral devices, and disconnect all external
cables and power cords.
2. Remove the appliance cover.
3. Remove all of the adapters:

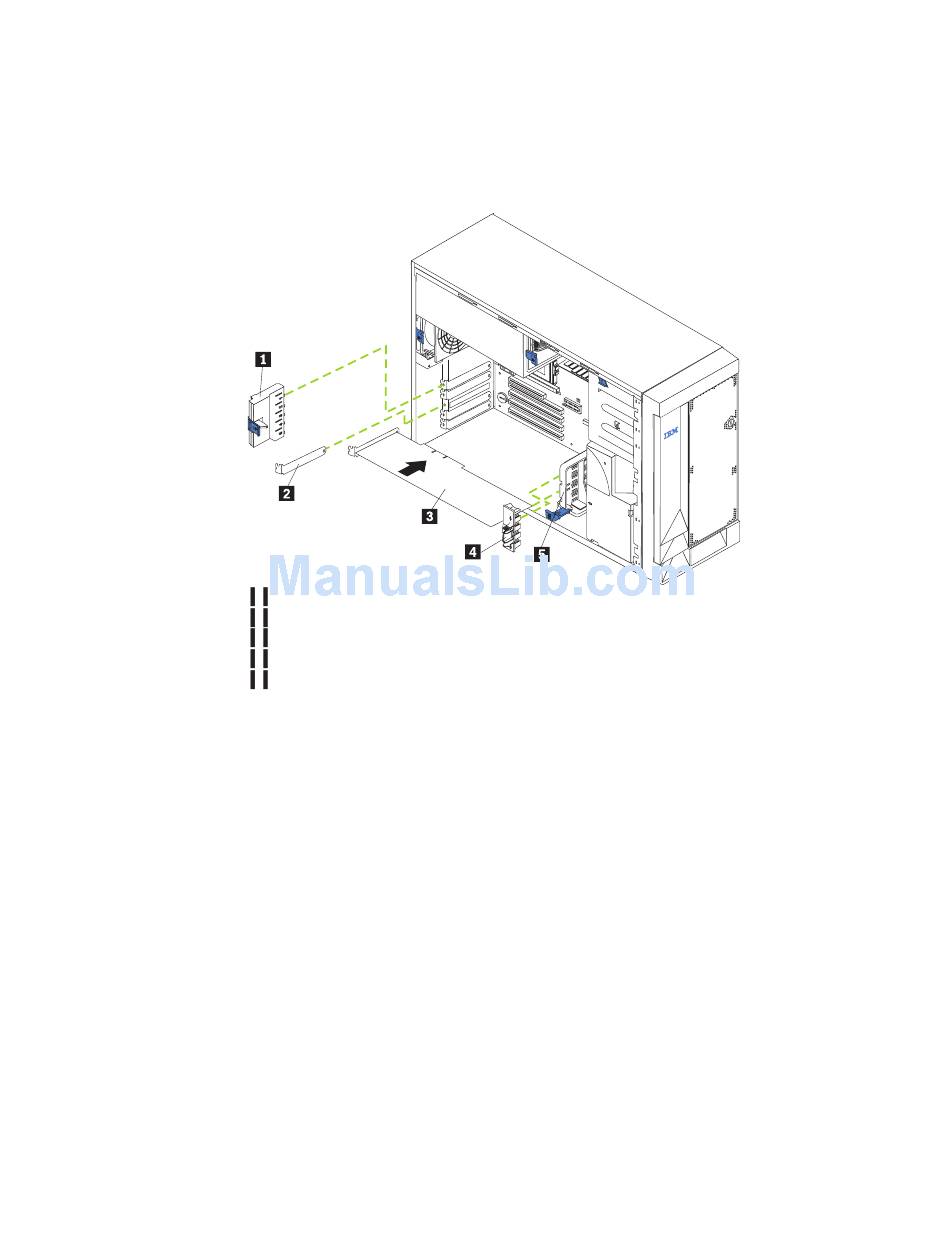

1
Blue adapter-retention bracket
2
Expansion slot cover
3
Adapter
4
Adapter support bracket retaining clip
5
Adapter support bracket
Figure 8. Removing adapters
a. Remove the blue adapter-retention bracket by pressing down on the tab and
lifting up the bracket.
b. Remove the adapter support bracket by pressing down on both tabs and
lifting up the bracket.
c. Carefully lift out the adapters.
Attention: Note the location of the adapters. You must replace each adapter
in the same slot from which it was removed.
Note: You do not need to unplug the internal adapter cables.
