5. Insert the new battery:
Note: Ensure that the polarity of the battery is correct. The positive (+) side
must face up.
a. Tilt the battery so that you can insert it into the socket, under the battery
clip.
b. As you slide it under the battery clip, press the battery down into the socket.
6. Replace the adapters:
a. Carefully grasp the adapter by its top edge, align it with the expansion slot
on the system board, and press it firmly into the expansion slot.

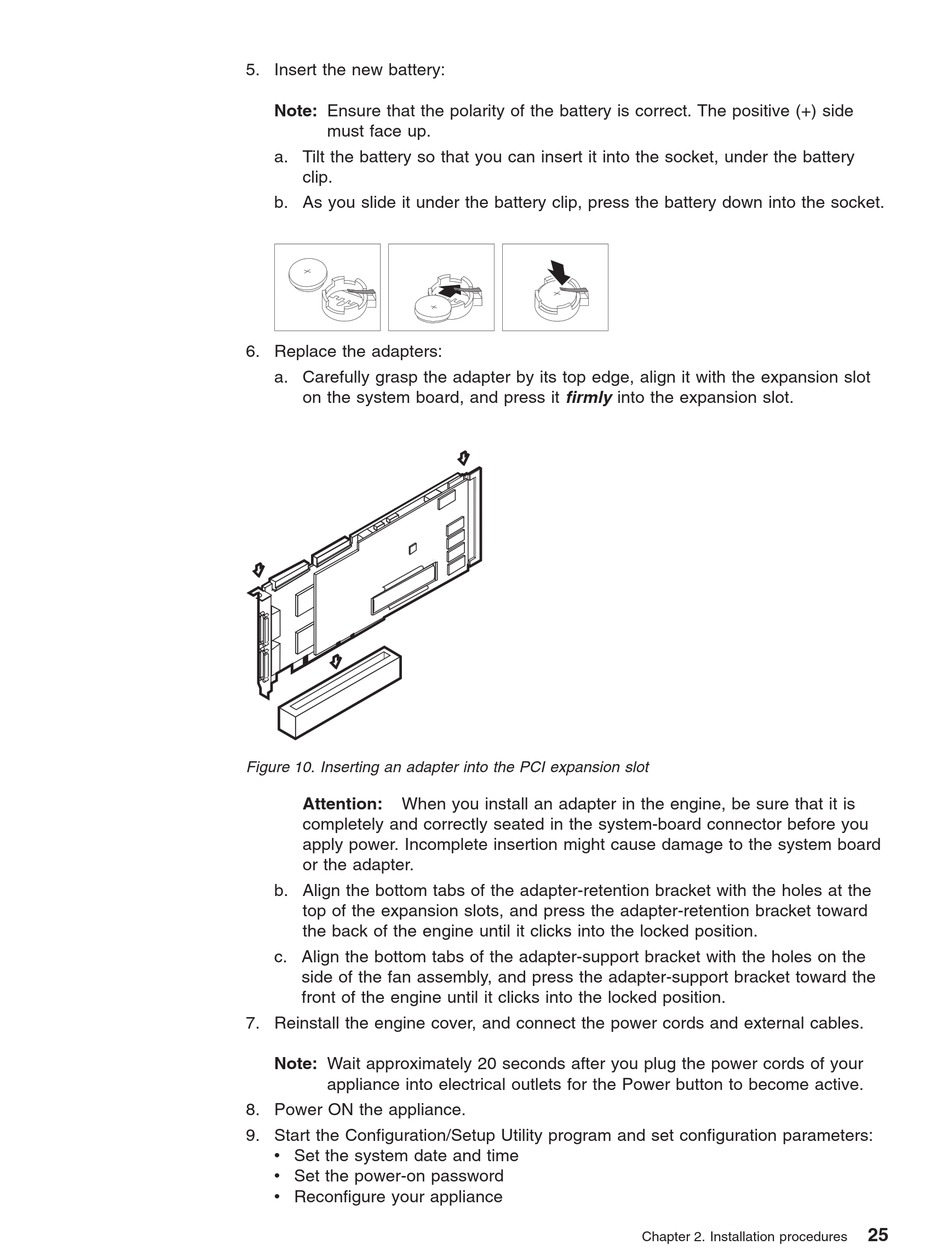

Figure 10. Inserting an adapter into the PCI expansion slot
Attention:
When you install an adapter in the engine, be sure that it is
completely and correctly seated in the system-board connector before you
apply power. Incomplete insertion might cause damage to the system board
or the adapter.
b. Align the bottom tabs of the adapter-retention bracket with the holes at the
top of the expansion slots, and press the adapter-retention bracket toward
the back of the engine until it clicks into the locked position.
c. Align the bottom tabs of the adapter-support bracket with the holes on the
side of the fan assembly, and press the adapter-support bracket toward the
front of the engine until it clicks into the locked position.
7. Reinstall the engine cover, and connect the power cords and external cables.
Note: Wait approximately 20 seconds after you plug the power cords of your
appliance into electrical outlets for the Power button to become active.
8. Power ON the appliance.
9. Start the Configuration/Setup Utility program and set configuration parameters:
v Set the system date and time
v Set the power-on password
v Reconfigure your appliance
Chapter 2. Installation procedures
25
