Changing the Font and Text Settings for the OSD Configuration
If optional fonts are uploaded to the StudioStation 100, you can select and use one for
displaying OSD text instead of the default font. Size and color can be selected for the OSD
text. Optional fonts must be uploaded to the fonts folder within the StudioStation 100 from
the page or by using an SFTP client program before selecting it in this
File Management
page.
TIP: Many free, open source fonts are available at https://fonts.google.com/.
NOTES:
• StudioStation 100 supports TrueType™ (.ttf) and OpenType
• To upload a font file, use the file upload utility within the
(see File Management
• The user is responsible for obtaining necessary font licenses before uploading fonts.
• After changing the font, some text may appear truncated in the OSDs because
characters may be wider in the selected font than in the system default font.
• The font, size and color will be dependent on the Metadata settings (see
Configuring Metadata Elements
To select a different font and change the size and color:
1. Open the
Encoding & Metadata
page 50).
2. Expand the
Metadata and Recording Files
3. Navigate to the first pane in the left corner and select an available font from the
drop-down list (see figure 33,
input switching OSD and the universal OSD.

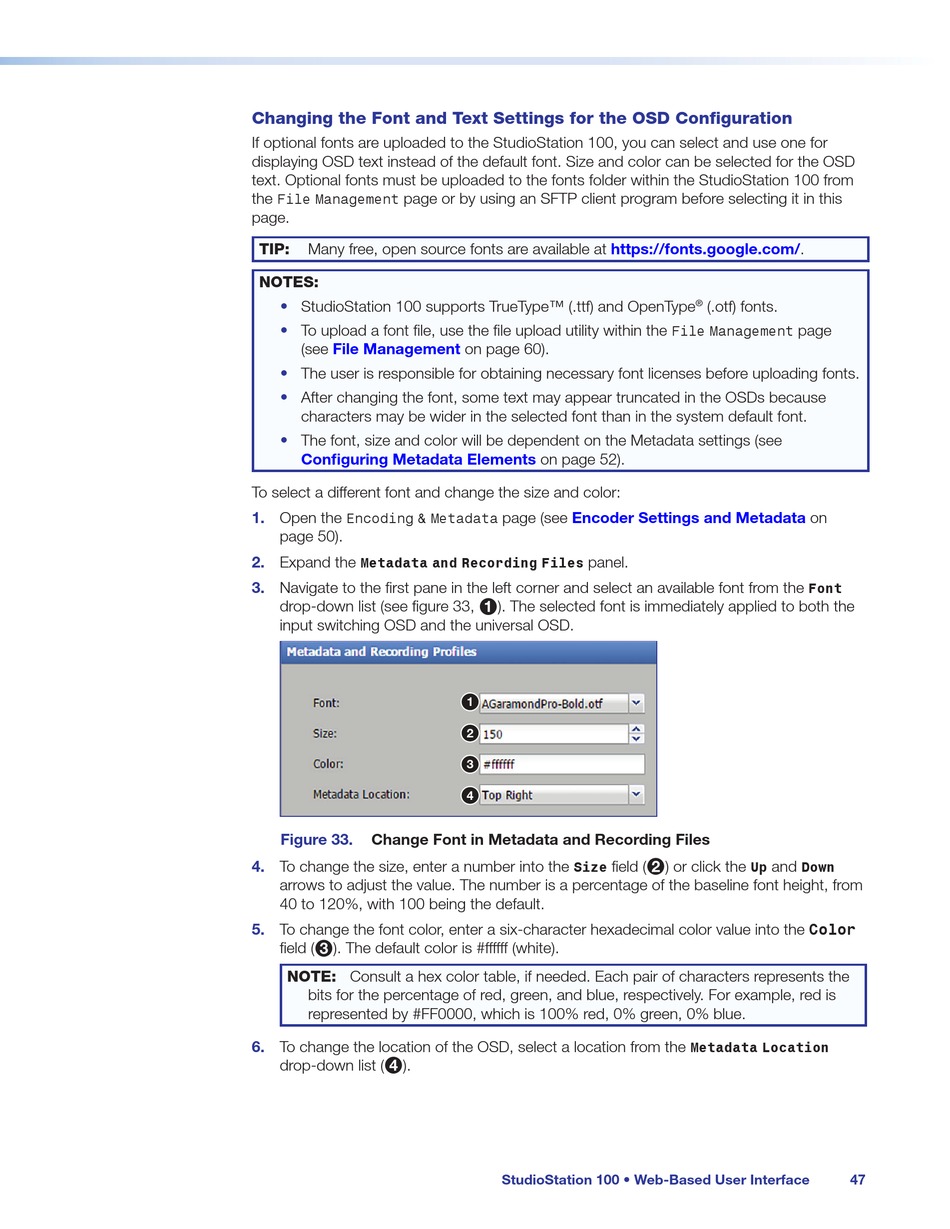

Figure 33. Change Font in Metadata and Recording Files
4. To change the size, enter a number into the
arrows to adjust the value. The number is a percentage of the baseline font height, from
40 to 120%, with 100 being the default.
5. To change the font color, enter a six-character hexadecimal color value into the Color
field ( ). The default color is #ffffff (white).
3
NOTE: Consult a hex color table, if needed. Each pair of characters represents the
bits for the percentage of red, green, and blue, respectively. For example, red is
represented by #FF0000, which is 100% red, 0% green, 0% blue.
6. To change the location of the OSD, select a location from the
drop-down list ( ).
4
on page 60).
on page 52).
page (see Encoder Settings and Metadata
panel.
). The selected font is immediately applied to both the
1
1
2
3
4
field (
Size
