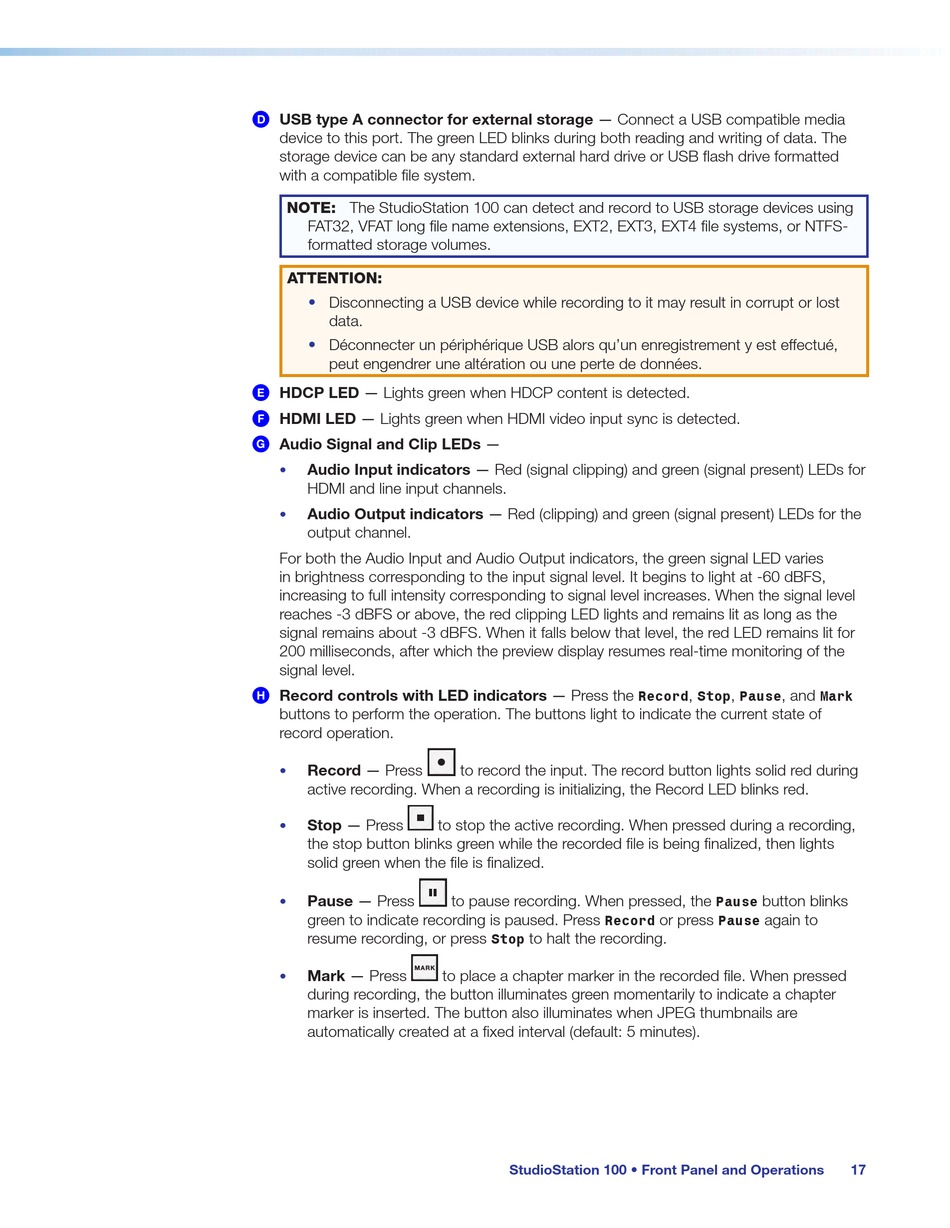

USB type A connector for external storage — Connect a USB compatible media
D
device to this port. The green LED blinks during both reading and writing of data. The
storage device can be any standard external hard drive or USB flash drive formatted
with a compatible file system.
NOTE: The StudioStation 100 can detect and record to USB storage devices using
FAT32, VFAT long file name extensions, EXT2, EXT3, EXT4 file systems, or NTFS-
formatted storage volumes.
ATTENTION:
• Disconnecting a USB device while recording to it may result in corrupt or lost
data.
• Déconnecter un périphérique USB alors qu'un enregistrement y est effectué,
peut engendrer une altération ou une perte de données.
HDCP LED — Lights green when HDCP content is detected.
E
HDMI LED — Lights green when HDMI video input sync is detected.
F
Audio Signal and Clip LEDs —
G
Audio Input indicators — Red (signal clipping) and green (signal present) LEDs for
•
HDMI and line input channels.
Audio Output indicators — Red (clipping) and green (signal present) LEDs for the
•
output channel.
For both the Audio Input and Audio Output indicators, the green signal LED varies
in brightness corresponding to the input signal level. It begins to light at -60 dBFS,
increasing to full intensity corresponding to signal level increases. When the signal level
reaches -3 dBFS or above, the red clipping LED lights and remains lit as long as the
signal remains about -3 dBFS. When it falls below that level, the red LED remains lit for
200 milliseconds, after which the preview display resumes real-time monitoring of the
signal level.
Record controls with LED indicators — Press the
H
buttons to perform the operation. The buttons light to indicate the current state of
record operation.
Record — Press
•
active recording. When a recording is initializing, the Record LED blinks red.
Stop — Press
•
the stop button blinks green while the recorded file is being finalized, then lights
solid green when the file is finalized.
Pause — Press
•
green to indicate recording is paused. Press
resume recording, or press
M A RK
Mark — Press
•
during recording, the button illuminates green momentarily to indicate a chapter
marker is inserted. The button also illuminates when JPEG thumbnails are
automatically created at a fixed interval (default: 5 minutes).
to record the input. The record button lights solid red during
to stop the active recording. When pressed during a recording,
to pause recording. When pressed, the
Record
to halt the recording.
Stop
to place a chapter marker in the recorded file. When pressed
